No. 5 DSC Operates Frequently/DSC Does Not Work Correctly

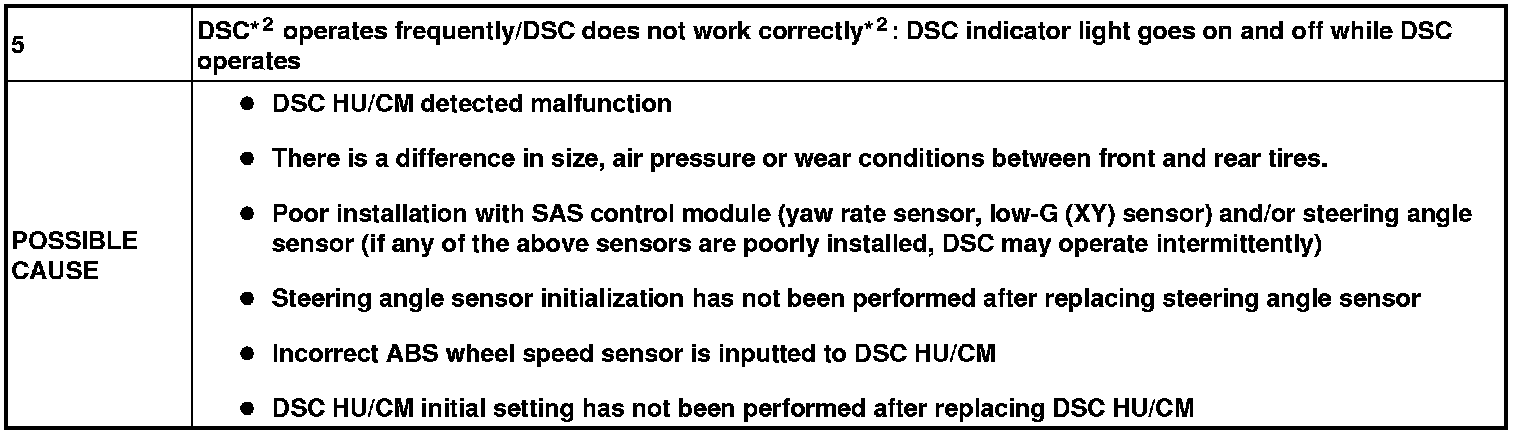

NO.5 DSC*2 OPERATES FREQUENTLY/DSC DOES NOT WORK CORRECTLY *2: DSC INDICATOR LIGHT GOES ON AND OFF WHILE DSC OPERATES [DYNAMIC STABILITY CONTROL (DSC)]

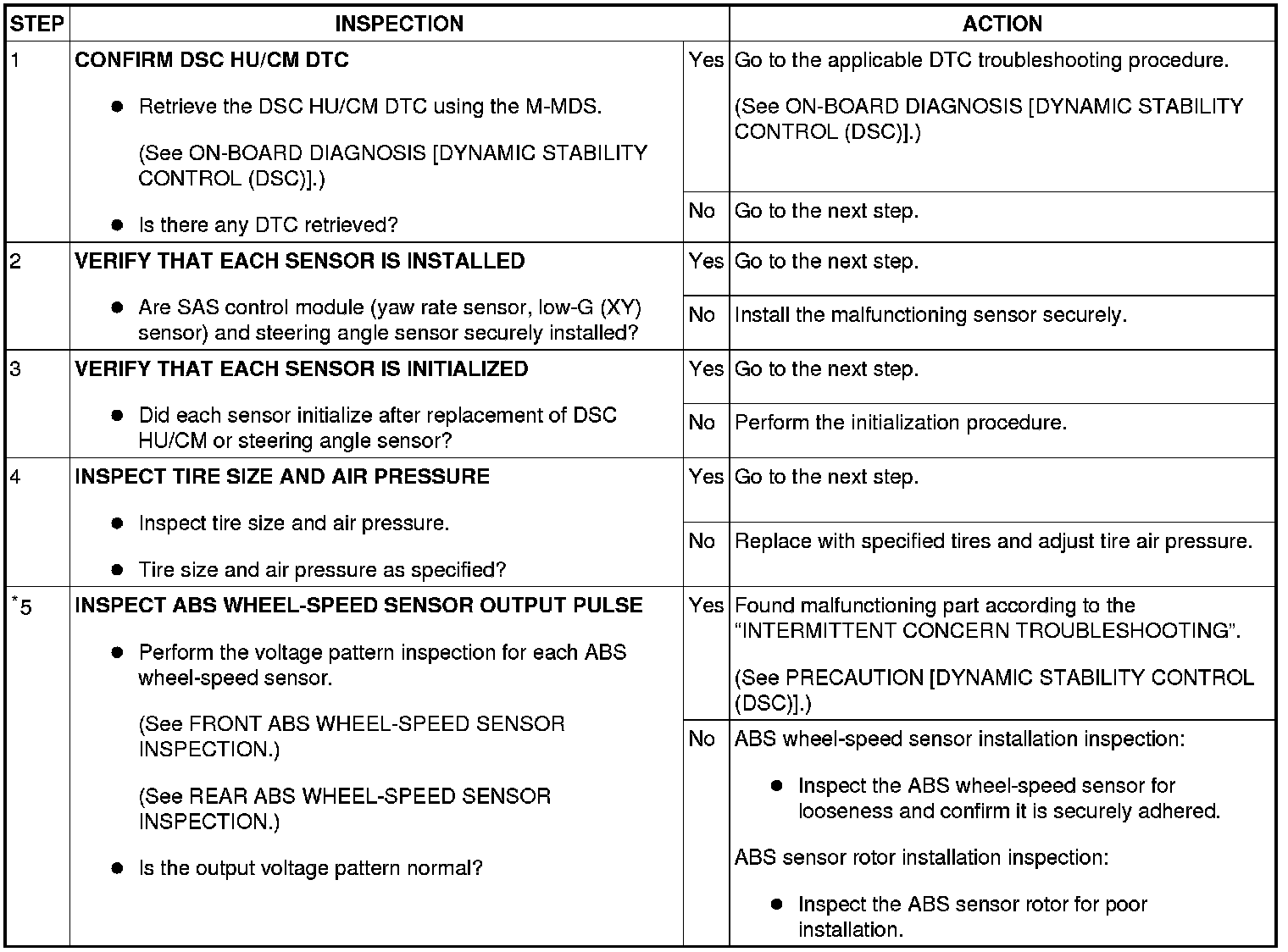

Diagnostic procedure





- When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, check to make sure connectors, terminals and wiring harness are connected correctly and undamaged.
