Air Bag Deactivation Indicator: Service and Repair

PASSENGER AIR BAG DEACTIVATION (PAD) INDICATOR LIGHT BULB REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Upper panel Upper Panel Removal/Installation

b. Decoration panel Decoration Panel Removal/Installation

c. Shift knob (MTX) Service and Repair

d. Shift panel Shift Panel Removal/Installation

e. Center panel lower Center Panel Lower Removal/Installation

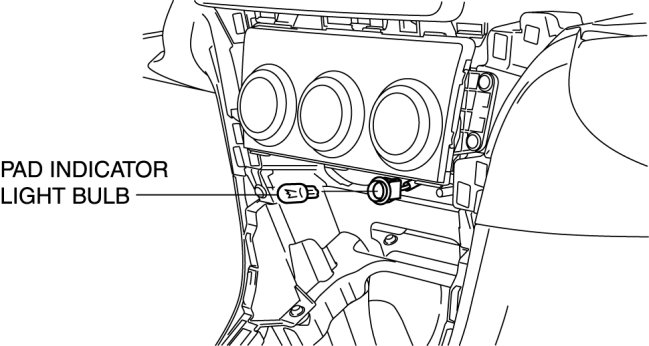

3. Remove the PAD indicator light bulb.






4. Install in the reverse order of removal.
