Child Seat Tether Attachment: Service and Repair

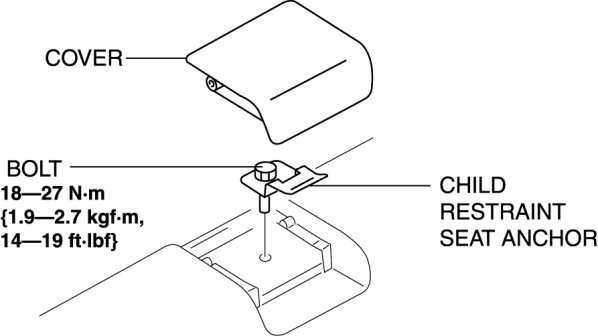

CHILD-RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION

1. Remove the cover.






2. Remove the bolt and child-restraint seat anchor.

3. Install in the reverse order of removal.
