Auxiliary Input / Output Jack: Service and Repair

AUXILIARY JACK REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the console. Console Removal/Installation

4. Remove the side wall. Side Wall Removal/Installation

5. Remove the console panel. Console Panel Removal/Installation

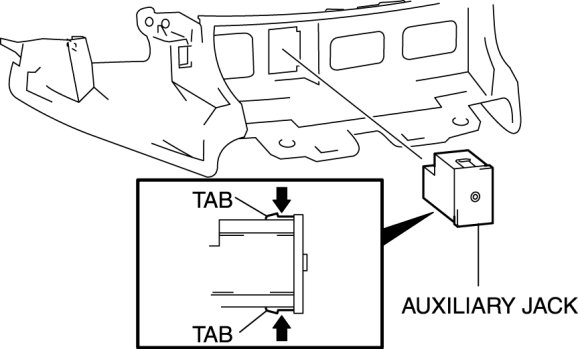

6. While pressing the tabs, pull the auxiliary jack.

7. Install in the reverse order of removal.
