Towing

TOWING

- Proper lifting and towing are necessary to prevent damage to the vehicle. Government and local laws must be followed.

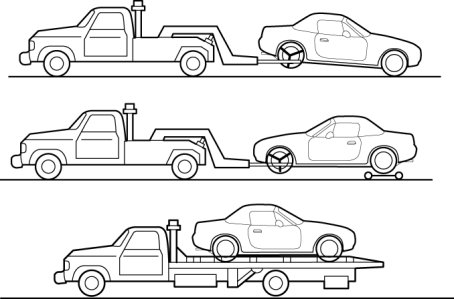

- A towed vehicle usually should have its drive wheels (rear wheels) off the ground. If excessive damage or other conditions prevent this, use wheel dollies.






CAUTION:

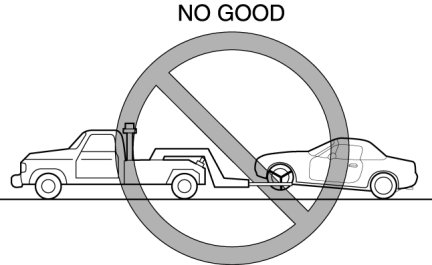

- Do not tow the vehicle pointed forward with driving wheels on the ground. This may cause internal damage to the transmission.






CAUTION:

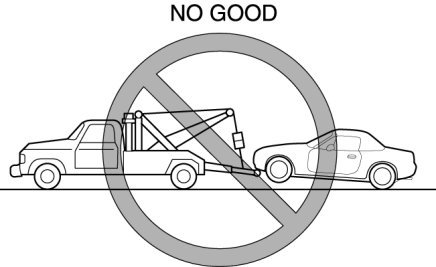

- Do not tow with sling-type equipment. This could damage your vehicle. Use wheel-lift or flatbed equipment.






Tiedown

CAUTION:
- Do not use the front and rear tiedown eyelets for towing the vehicle. The have been designed only for securing the vehicle to a transport vessel during shipping. Using the eyelets for any other purpose could result in the vehicle being damaged.

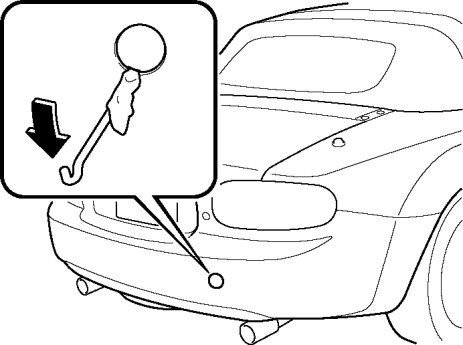

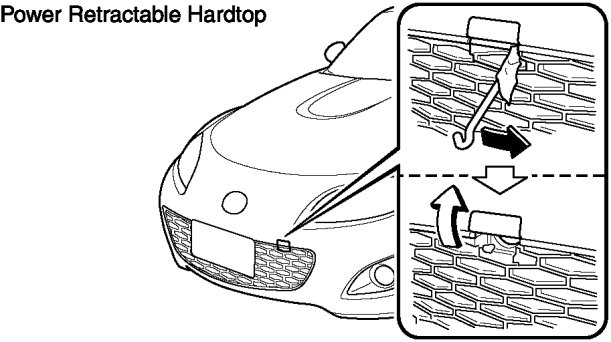

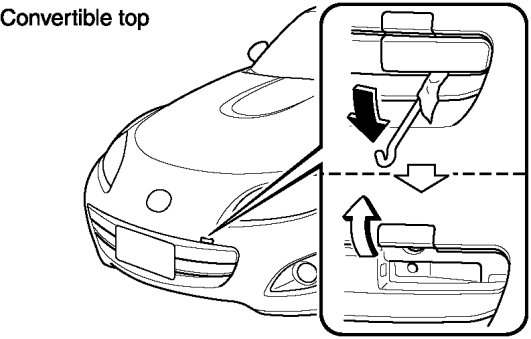

1. Wrap the screwdriver or similar tool with a soft cloth to prevent damage to a painted bumper, and open the cap located on the front or rear bumper.

Front










Rear






CAUTION:
- Do not use excessive force as it may damage the cap or scratch the painted bumper surface.
- The rear bumper cover cannot be removed completely. Attempting to forcefully remove the rear bumper cover could result in it being damaged.

NOTE:
- Remove the front bumper cover completely and store it so as not to lose it.

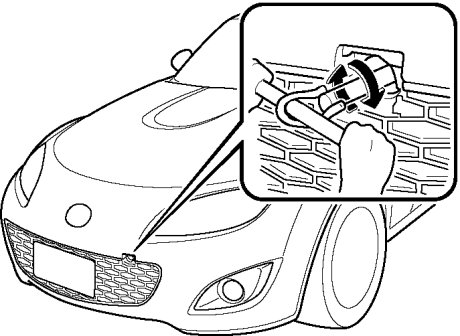

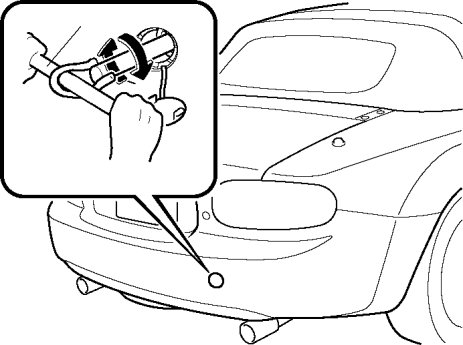

2. Securely install the tiedown eyelet using the wheel brace.

Front





Rear

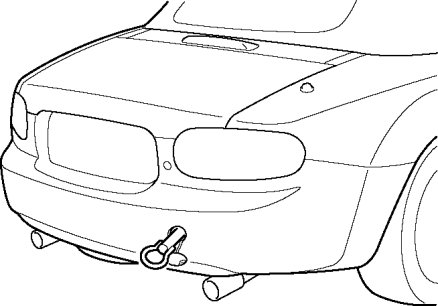

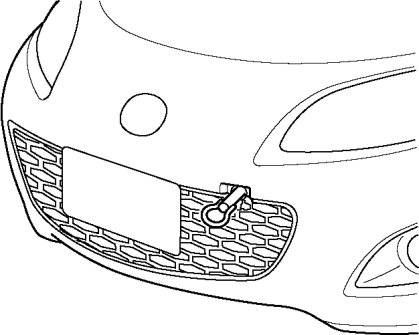

3. Hook the tying rope to the tiedown eyelet.

Front





Rear






CAUTION:
- If the tiedown eyelet is not securely tightened, it may loosen or disengage from the bumper when tying down the vehicle. Make sure that the tiedown eyelet is securely tightened to the bumper.
