Antitheft and Alarm Systems: Diagrams

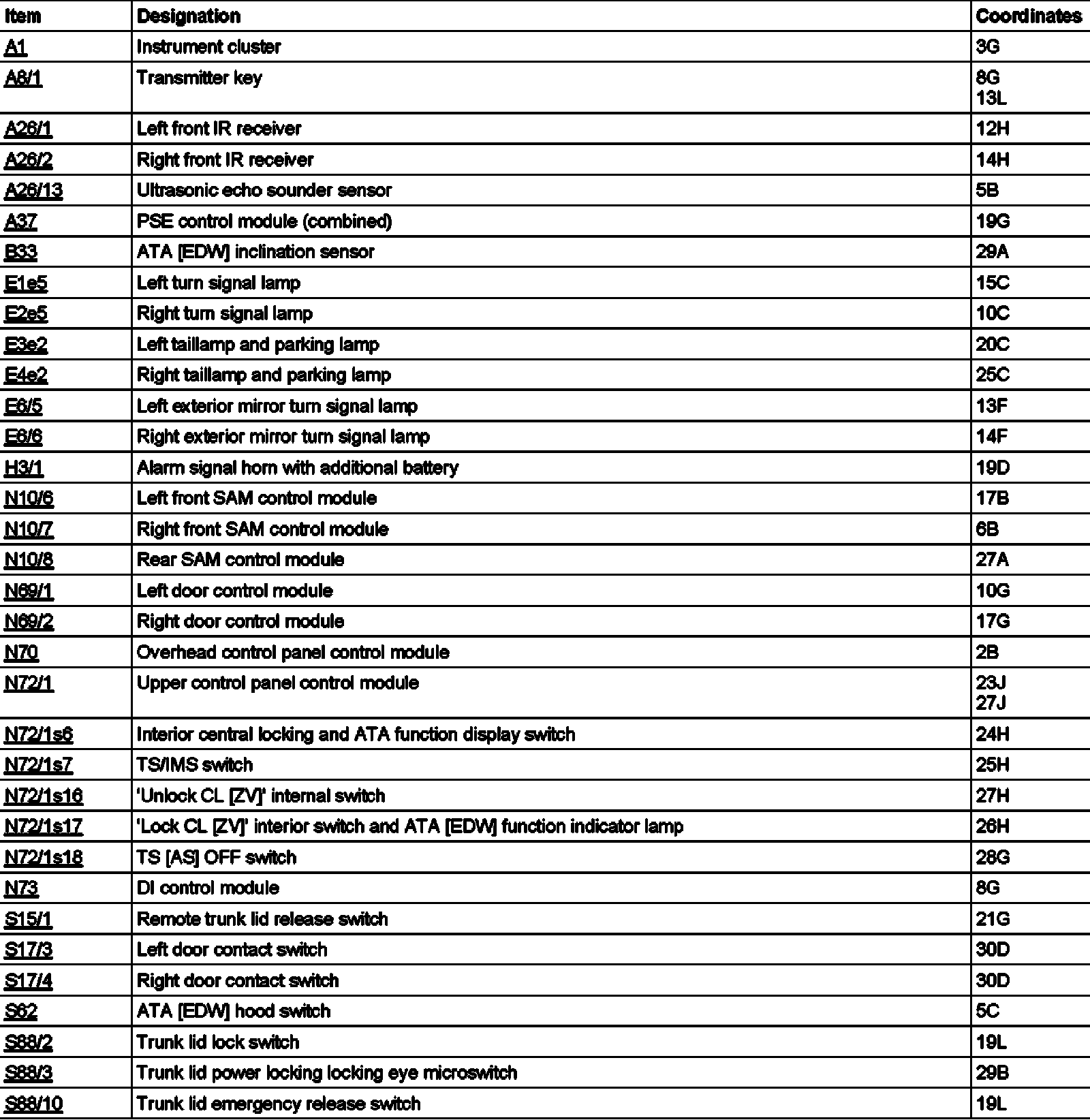

PE80.50-U-2050CA Function Schematic For Anti-Theft Alarm (ATA) Electrical System
