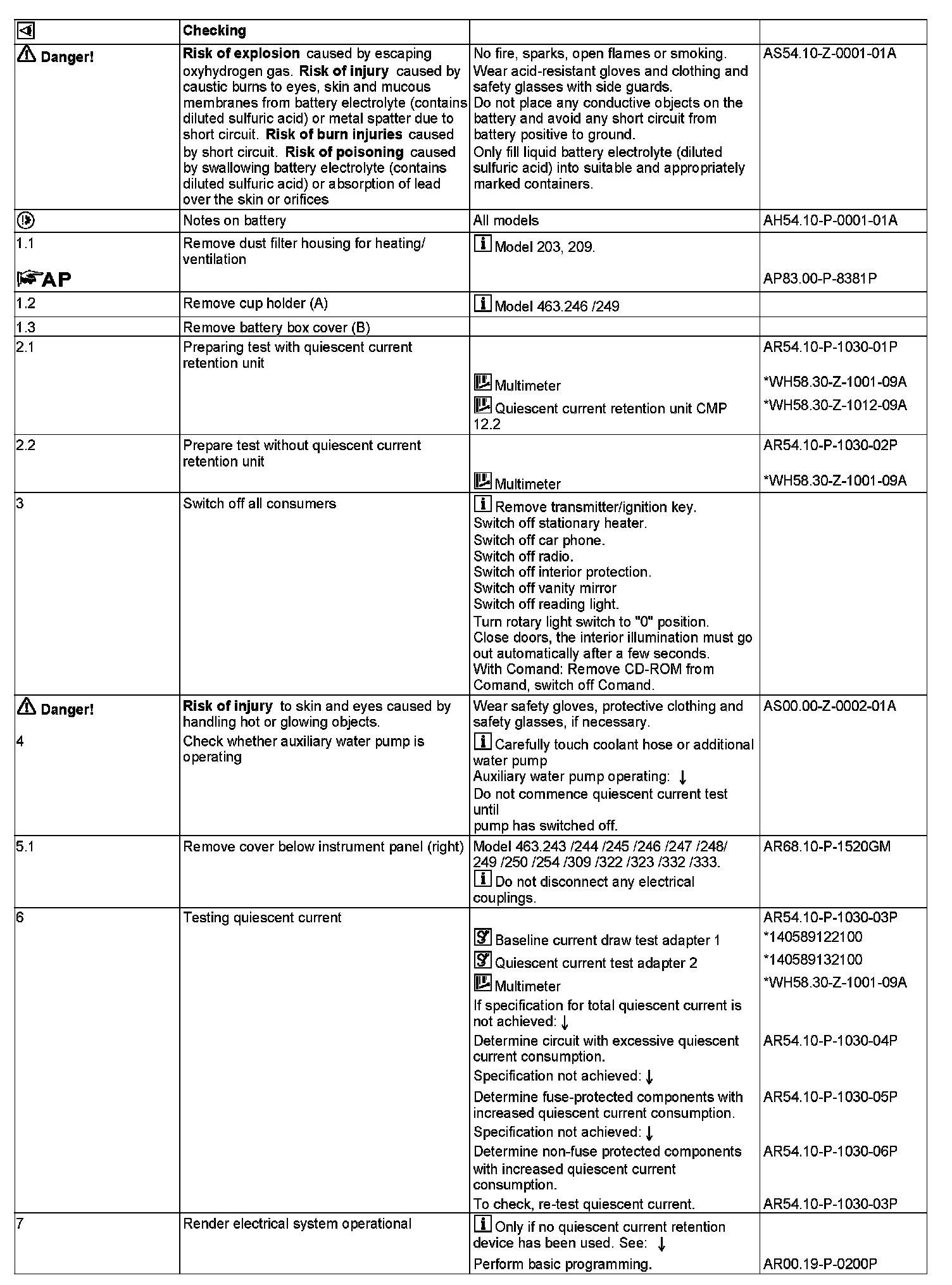

AR54.10-P-1030P Check Quiescent Current Consumption

AR54.10-P-1030P Check Quiescent Current Consumption
MODEL 203, 209, 463.243 /244 /245 /246 /247 /248 /249 /250 /254 /309 /322 /323 /332 /333

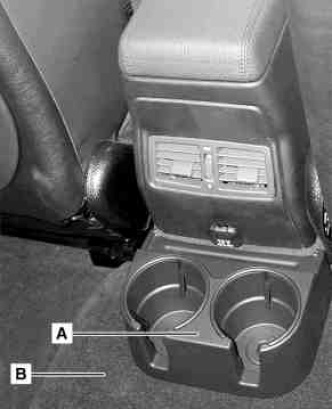

Shows model 463.249
A Cup holder
B Battery box lid








140 589 12 21 00
Quiescent current test adapter 1





140 589 13 21 00
Quiescent current test adapter 2
