Climate Control Assembly Switch Knobs

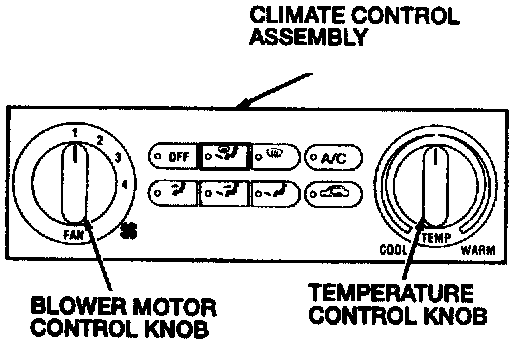

The climate control assembly switch knobs are the blower motor control knob and the temperature control knob.

REMOVAL






1. Grasp the climate control assembly switch knob and pull it off the switch shaft.

INSTALLATION
1. Align the flat on the insert in the climate control assembly switch knob with the flat on the climate control switch knob shaft.
2. Push the climate control assembly switch knob onto the climate control switch knob shaft.
