Coolant Temperature Sensor/Switch (For Computer): Service and Repair

REMOVAL
1. Partially drain the cooling system.







2. Disconnect the Engine Coolant Temperature (ECT) sensor electrical connector.







3. Remove the ECT sensor.

INSTALLATION

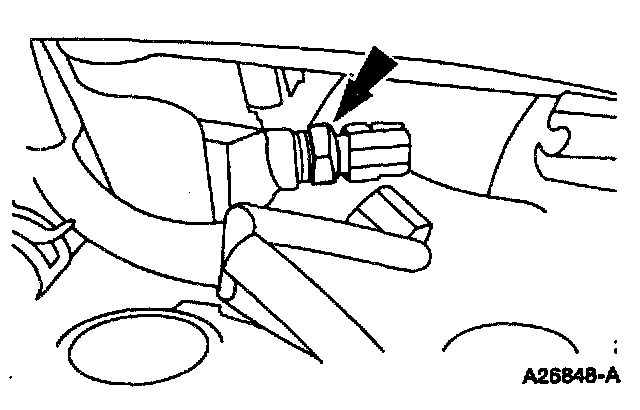

1. Install the ECT sensor.
1 Install the ECT sensor.
2 Connect the electrical connector.
2. Fill the cooling system.
