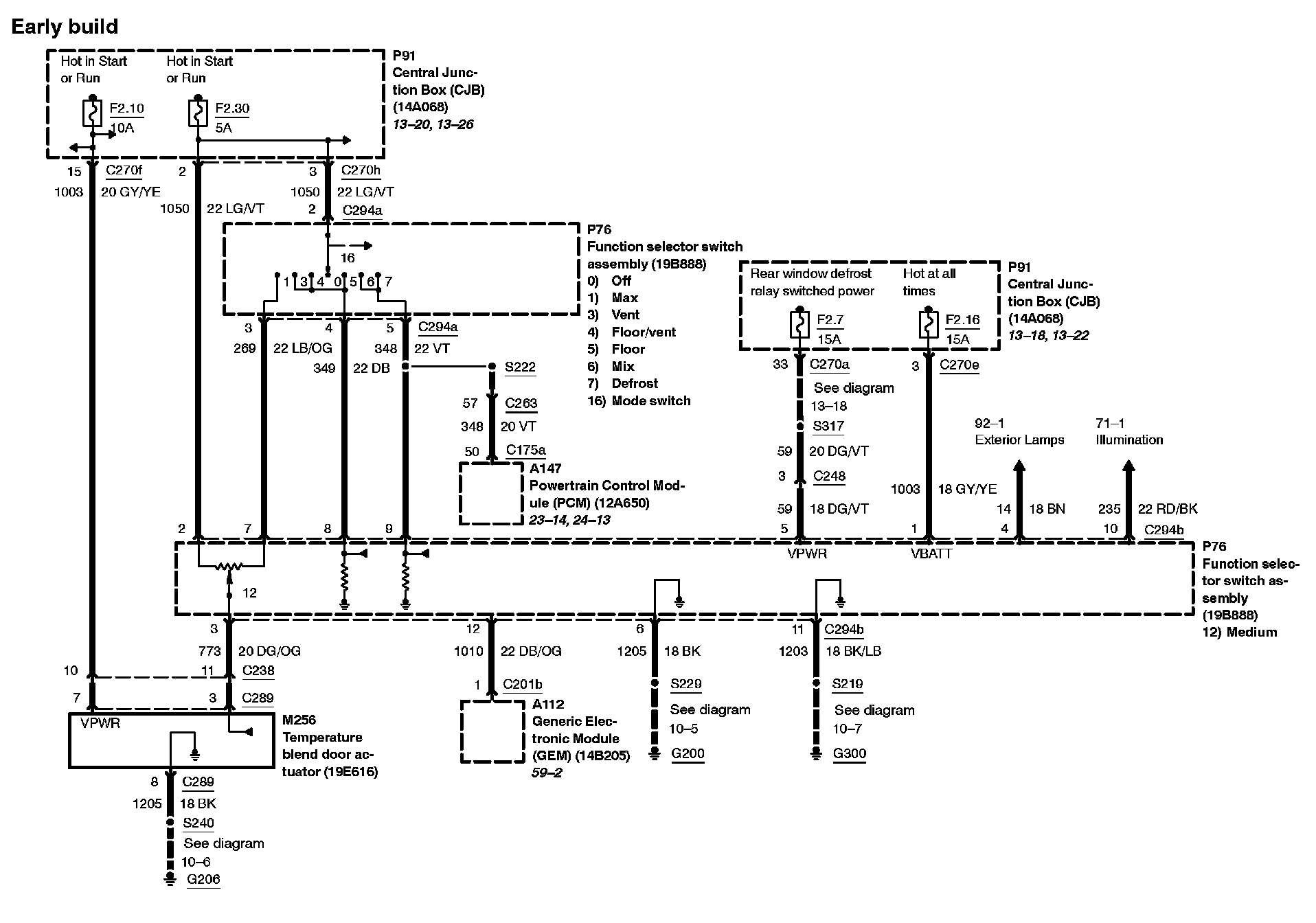

Early Build - Vehicles Built Before 03/2002

54-1:



54-2:



54-5:



54-6:



54-7:



54-8:



54-9:



54-10:



54-11:
