Fluid - M/T: Service and Repair

Transaxle Draining and Filling

Material:

1. With the vehicle in NEUTRAL, position it on a hoist.





2. Remove the drain plug and drain the fluid.





3. NOTE: Use a new gasket and apply sealant on the drain plug.

Install the drain plug.
^ Tighten to 35 Nm (26 ft. lbs.).





4. Remove the fill level inspection plug.

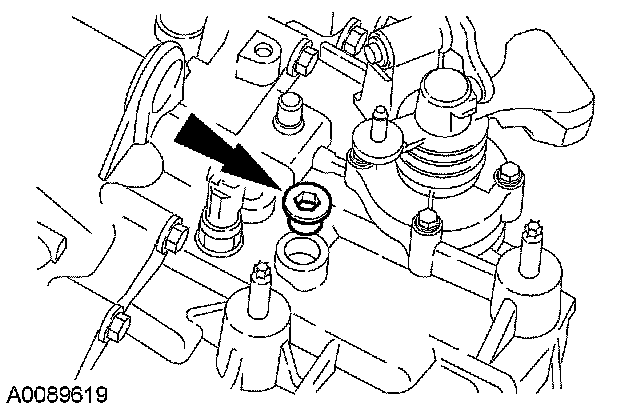

5. Remove the transaxle fill plug.
6. Fill the transmission with gear oil until level with the fill level inspection plug hole.





7. NOTE: Use a new gasket and apply sealant on the fill plug.

Install the transaxle fill plug.
^ Tighten to 35 Nm (26 ft. lbs.).





8. NOTE: Use a new gasket and apply sealant on the fill level inspection plug.

Install the fill level inspection plug.
^ Tighten to 35 Nm (26 ft. lbs.).
