Rear

Wheel Bearing and Wheel Hub

Rear Suspension - Exploded View (Part 1):

Rear Suspension - Exploded View (Part 2):

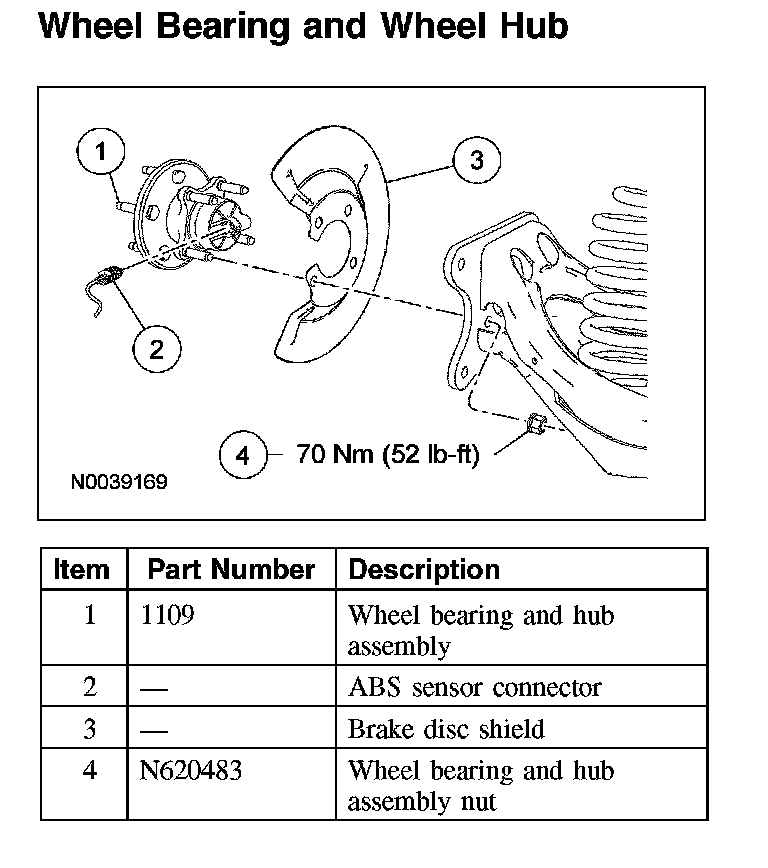

Wheel Bearing and Wheel Hub:

Removal and Installation

CAUTION: Suspension fasteners are critical parts because they affect the performance of vital components and systems and their failure can result in major service expense. A new part with the same part number must be installed. Do not use a new part of lesser quality or of a substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Remove the rear brake disc.
3. Disconnect the ABS sensor connector.
4. Remove the wheel bearing and hub nuts.
^ To install, tighten to 70 Nm (52 ft. lbs).
5. Remove the wheel bearing and hub assembly.
6. To install, reverse the removal procedure.
