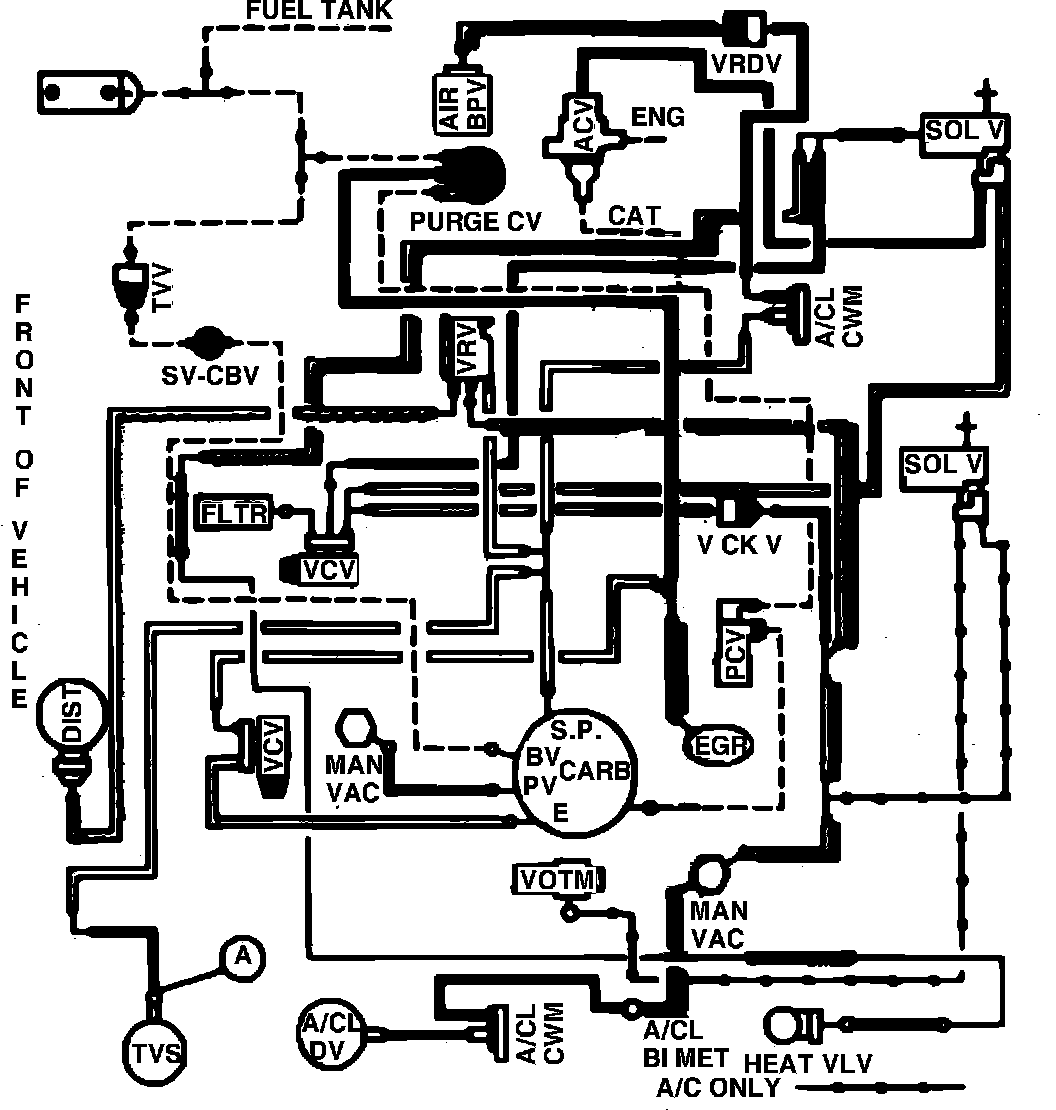

Fig. 48 Calib. Code 2-14B-R01 Federal, Exc. High Alt.
Fig. 48 Calib. Code 2-14B-R01 Federal, Exc. High Alt.
Vacuum hose routing:
