Wiring Diagrams

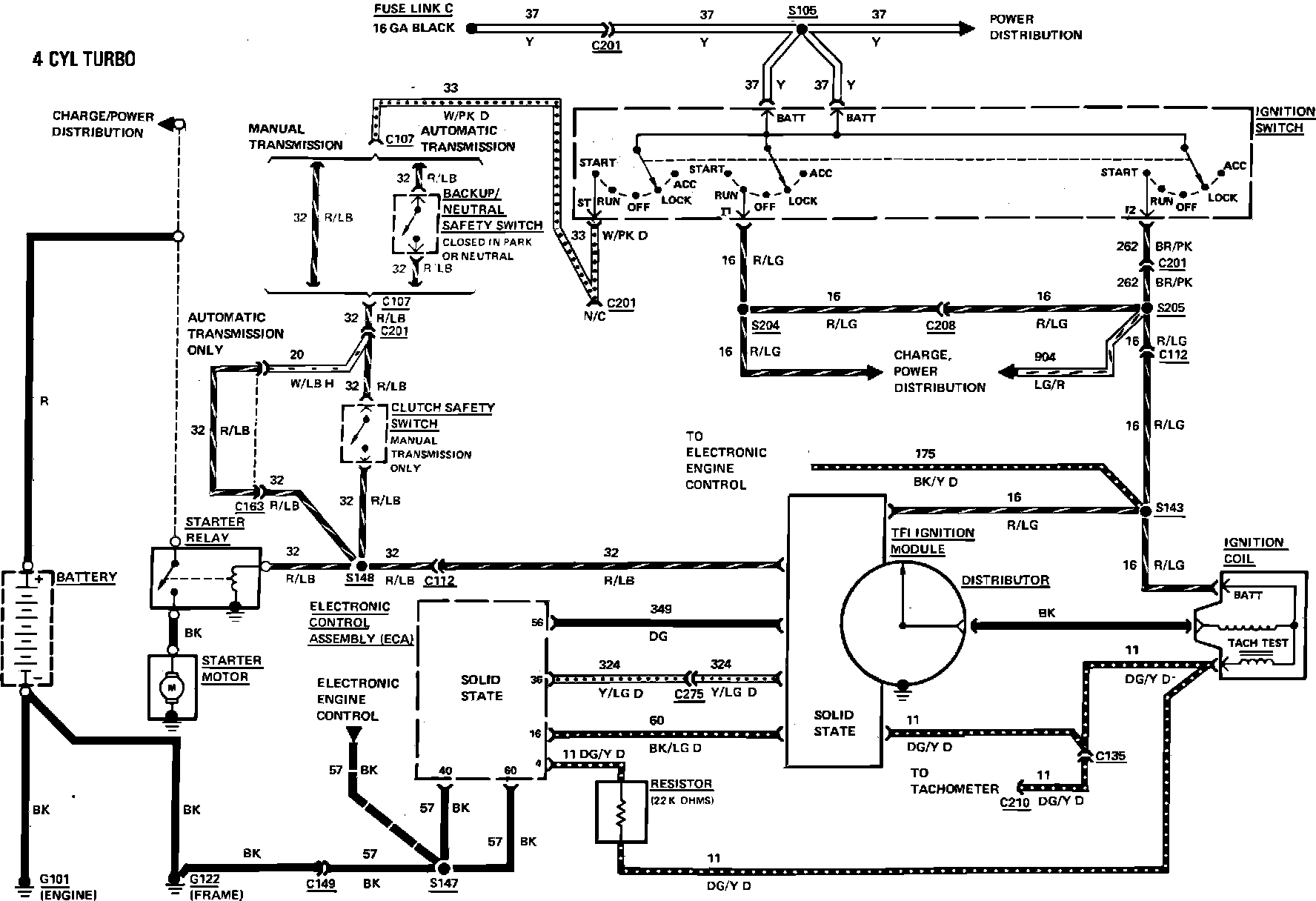

Fig. 46 Ignition & starting system wiring circuit. 1984 Capri & Mustang with turbocharged 4 cyl engine:
