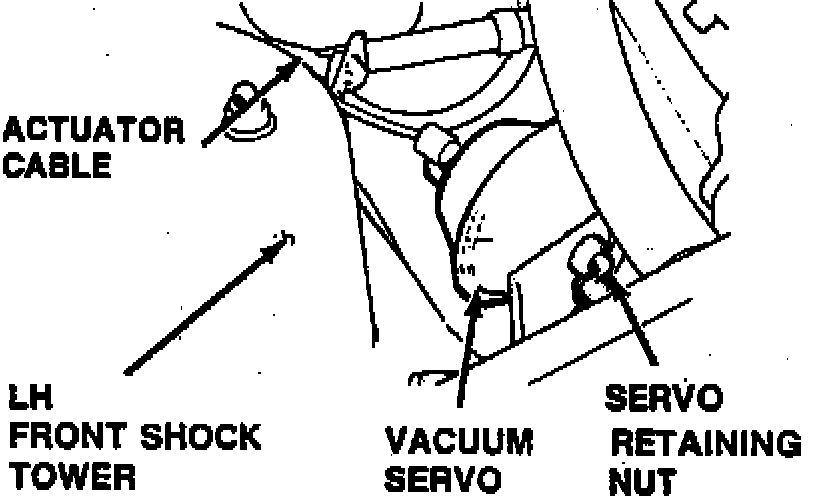

Cruise Control Servo: Locations

LH Fender Apron.:




On LH Fender Apron Behind Shock Tower

Applicable to: Scorpio
