Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module

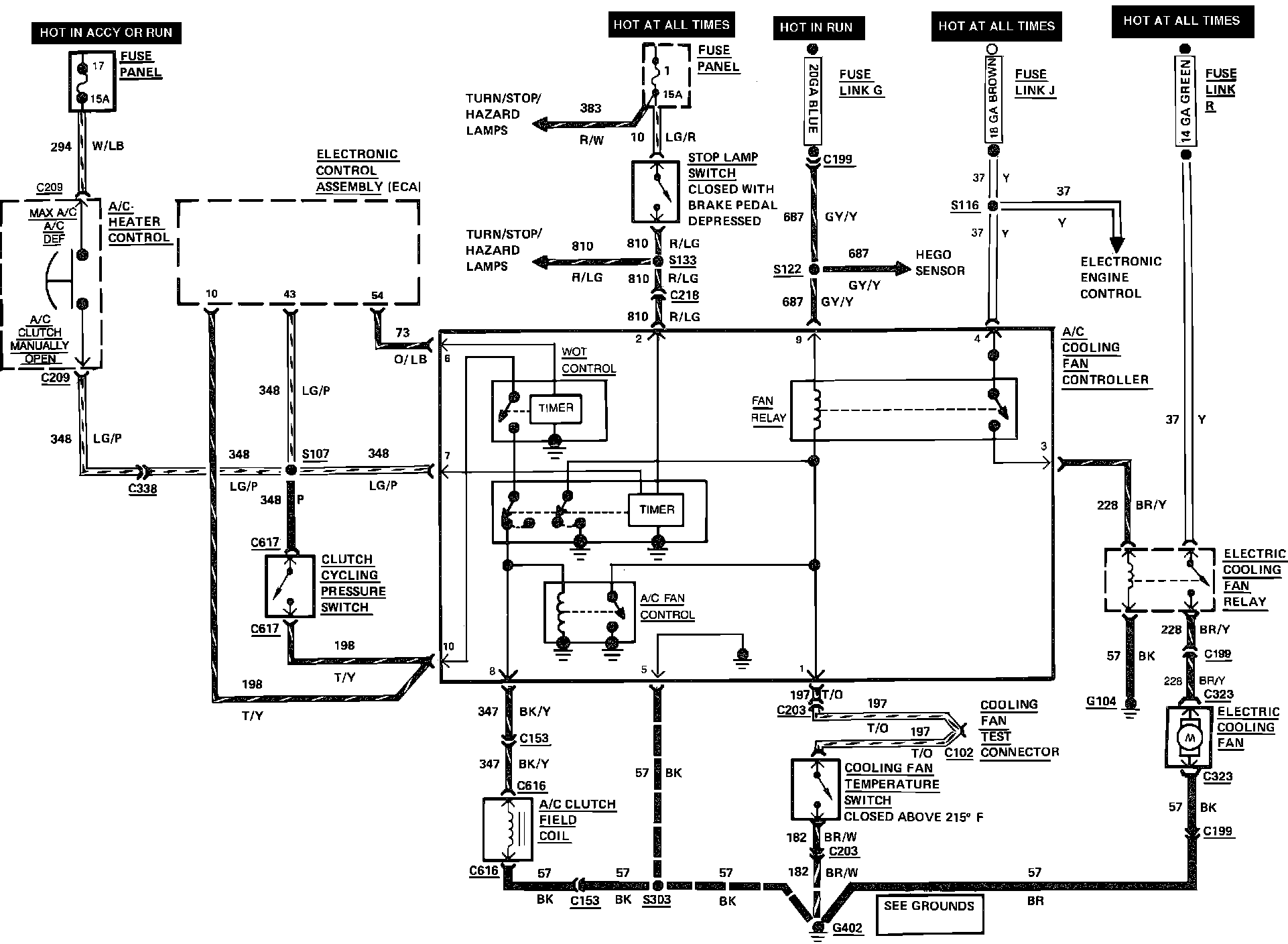

Air Conditioning & Heater Wiring Circuit:

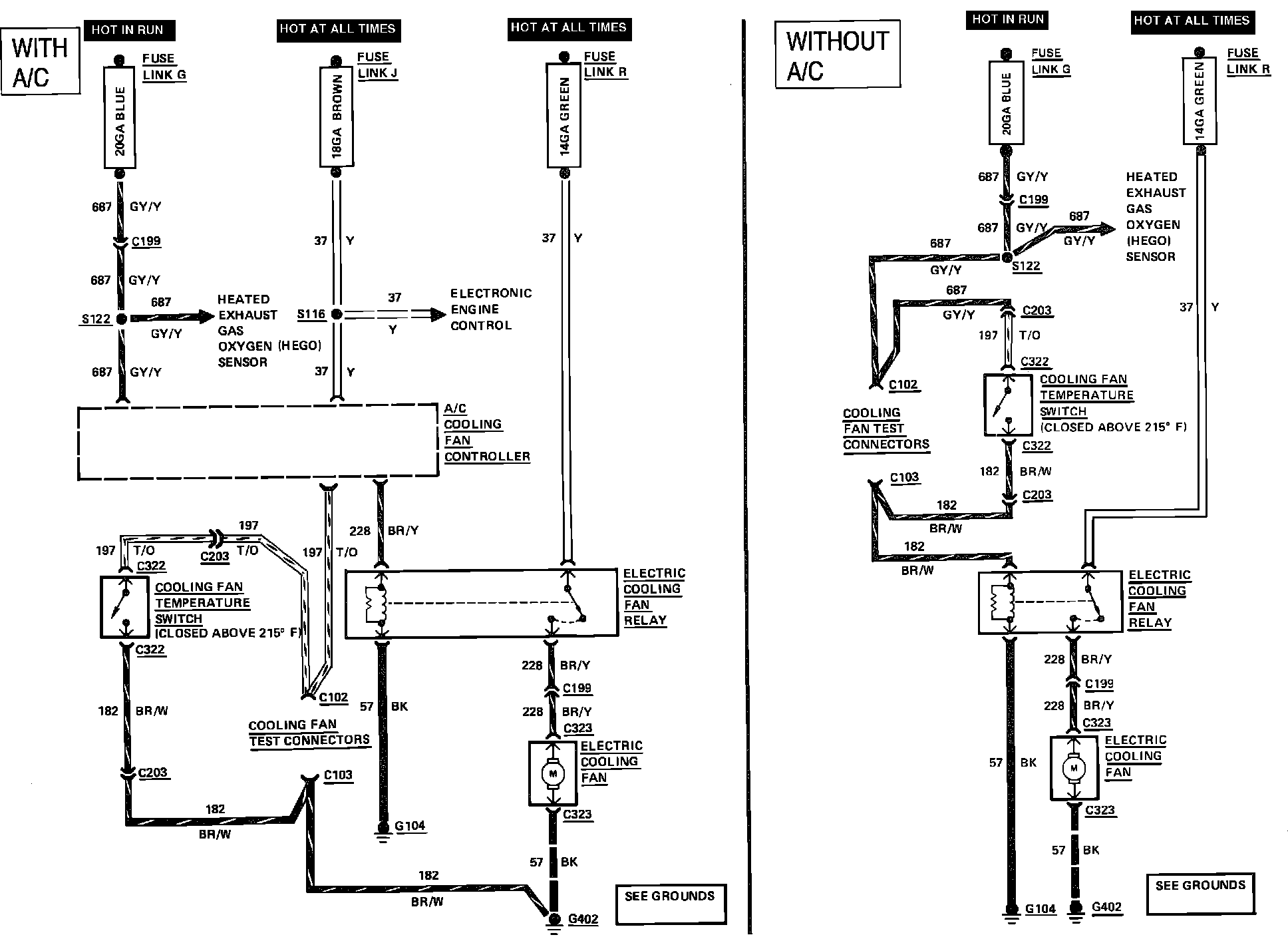

Cooling Fan Wiring Circuit:
