STO - Testing Notes and Schematic

*** UPDATED BY TSB# 91-14-B1 DATED 08-30-93

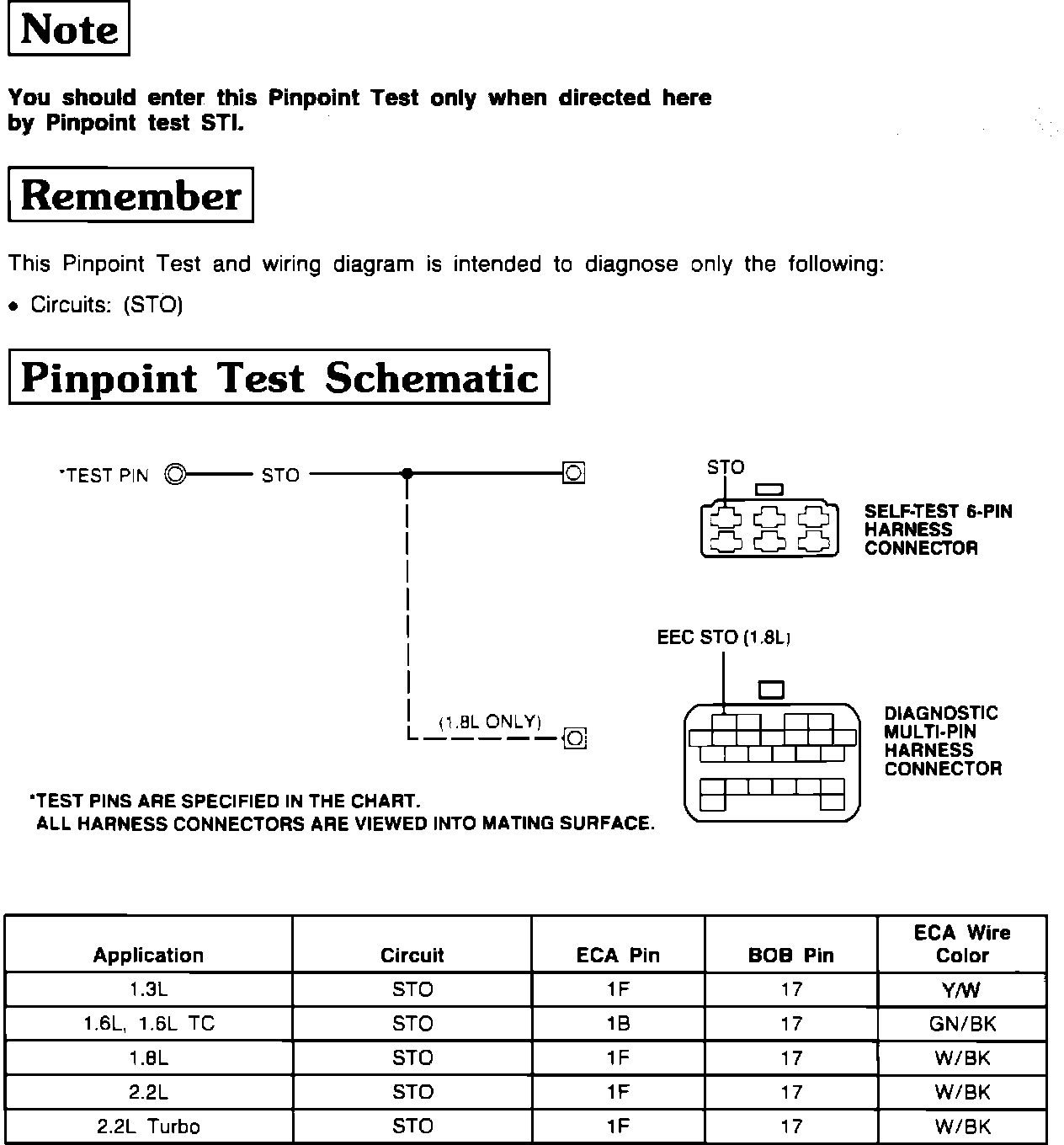

Pinpoint Test STO Testing Notes And Test Schematic:
