Engine Control Module

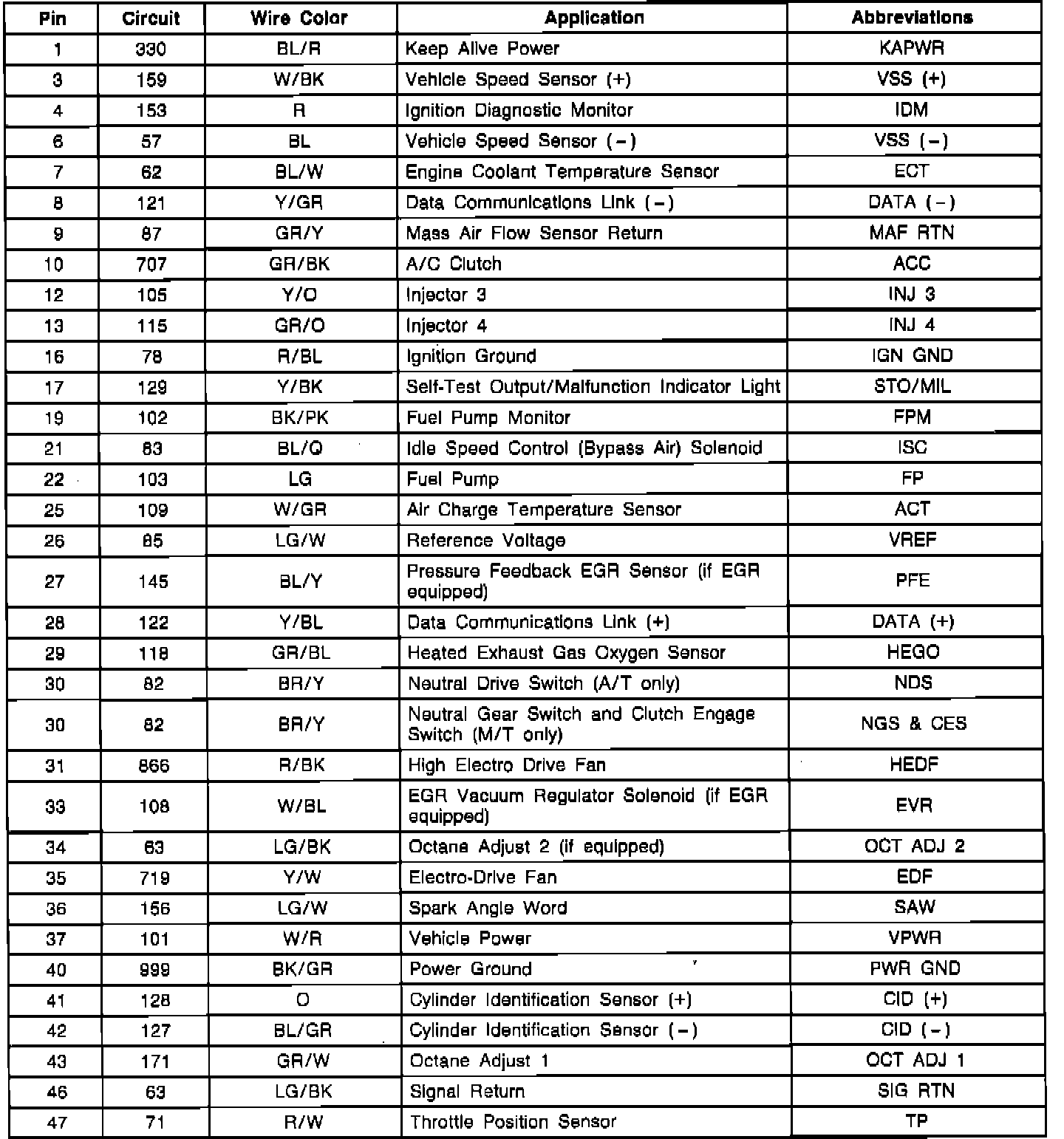

Electronic Control Assembly (ECA) Pinout Chart:

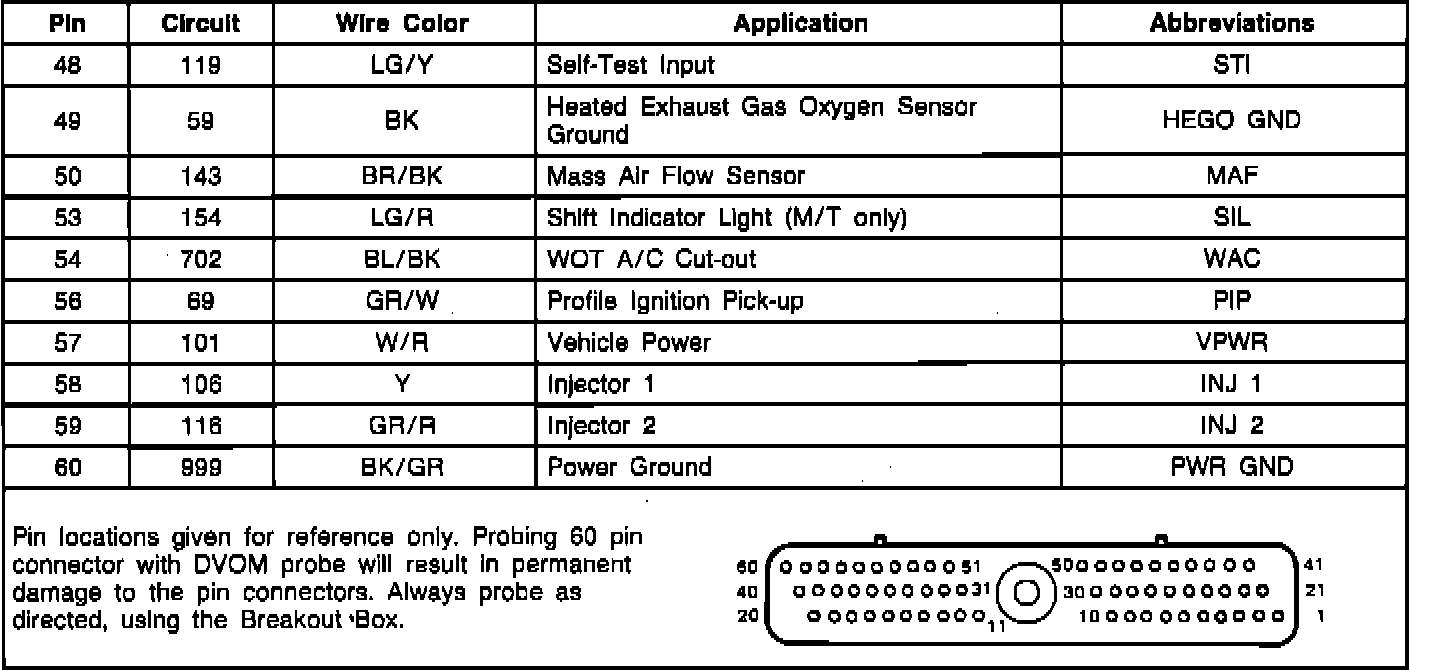

Electronic Control Assembly (ECA) Pinout Chart:
