Mirrors: Testing and Inspection

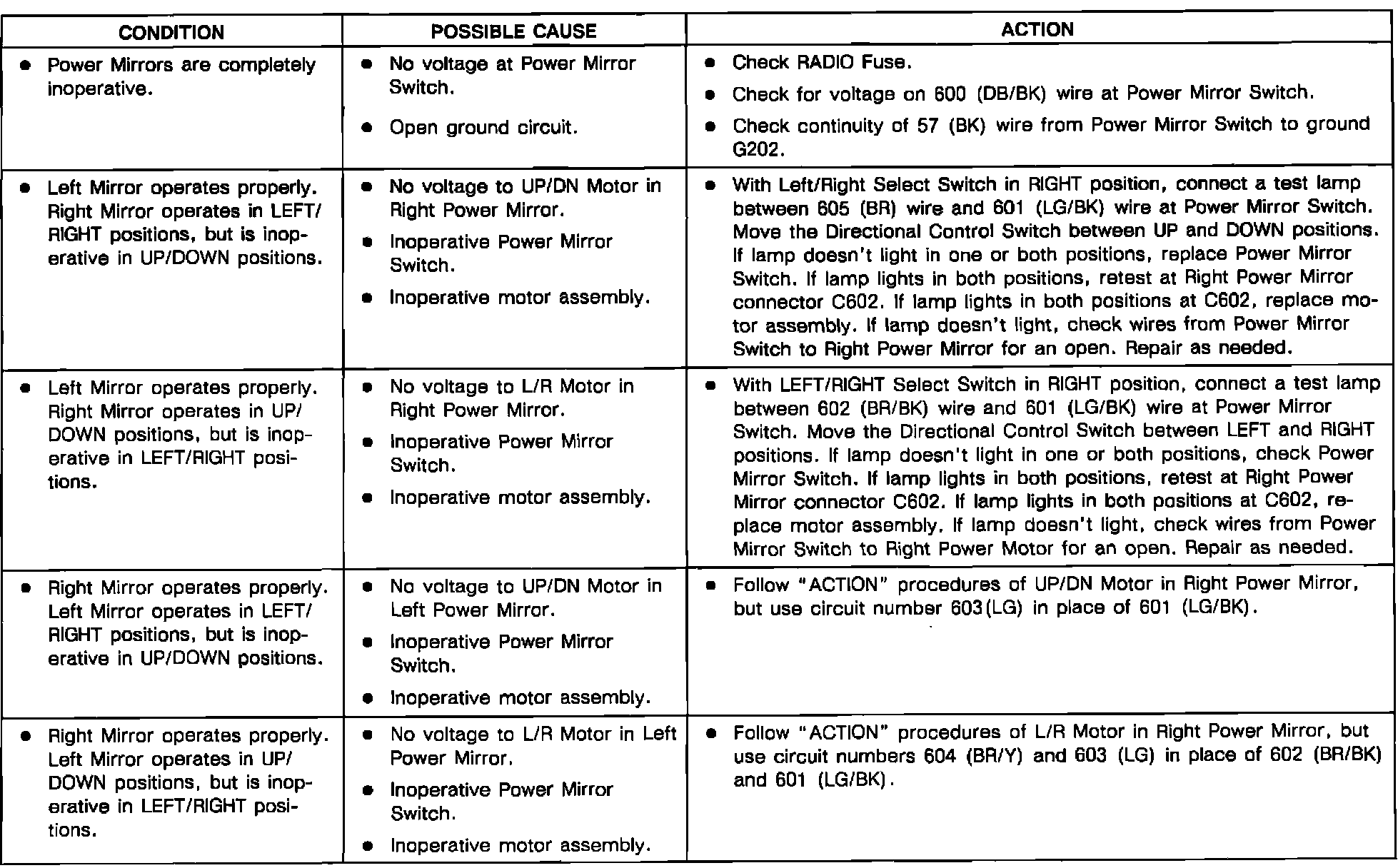

TROUBLESHOOTING


Troubleshooting Hints:

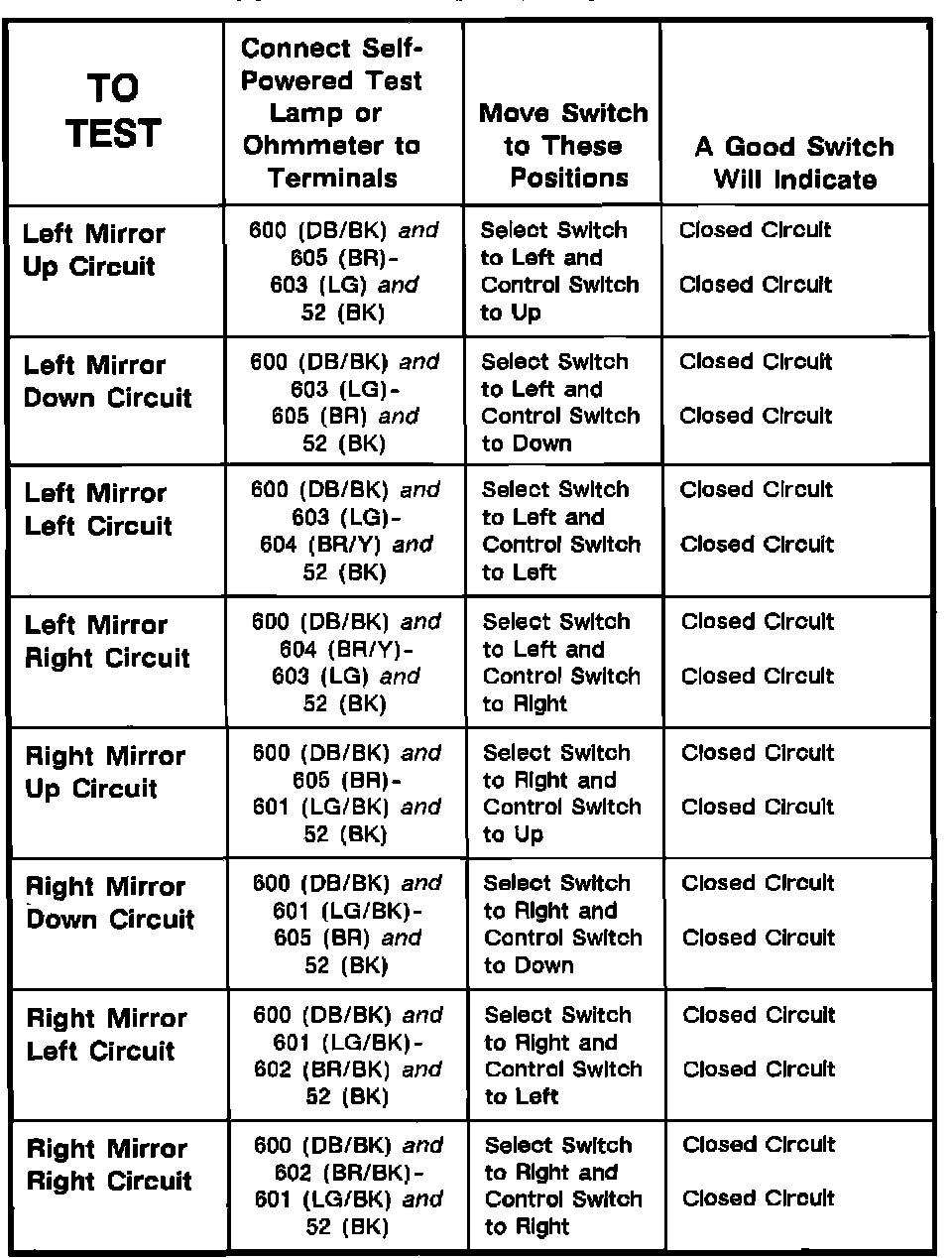

COMPONENT TESTING PROCEDURE


Component Testing Procedure:







TERMINAL IDENTIFICATION


Terminal Locations:

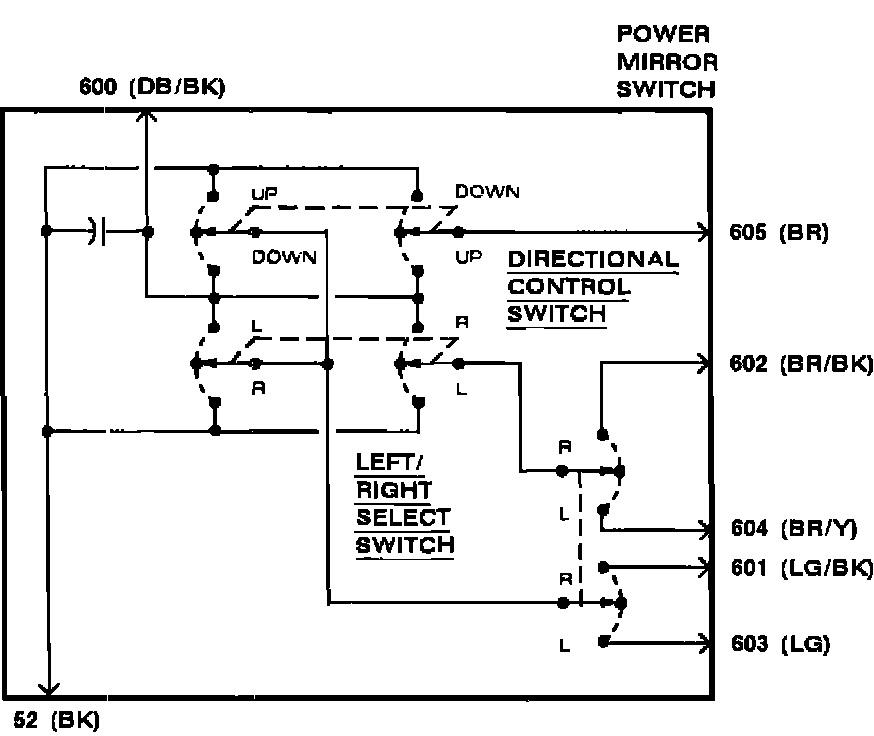

SCHEMATIC


Schematic:
