Control Assembly, HVAC
>>
With A/C
With A/C

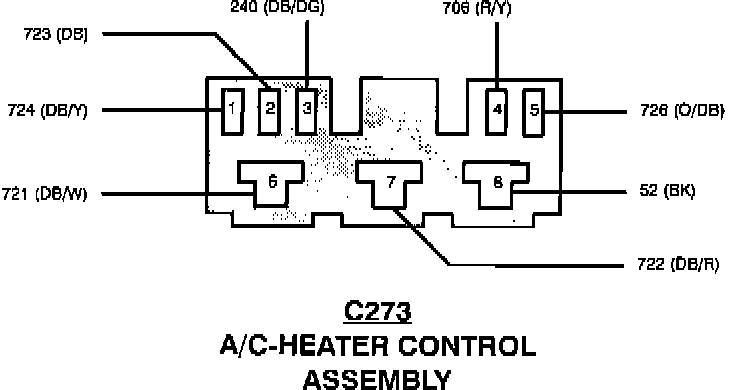

A/C-Heater Control Assembly:

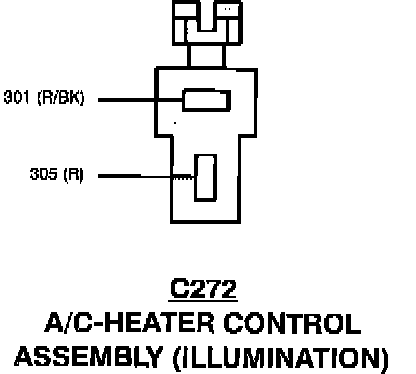

A/C-Heater Control Assembly:
