Station Wagon

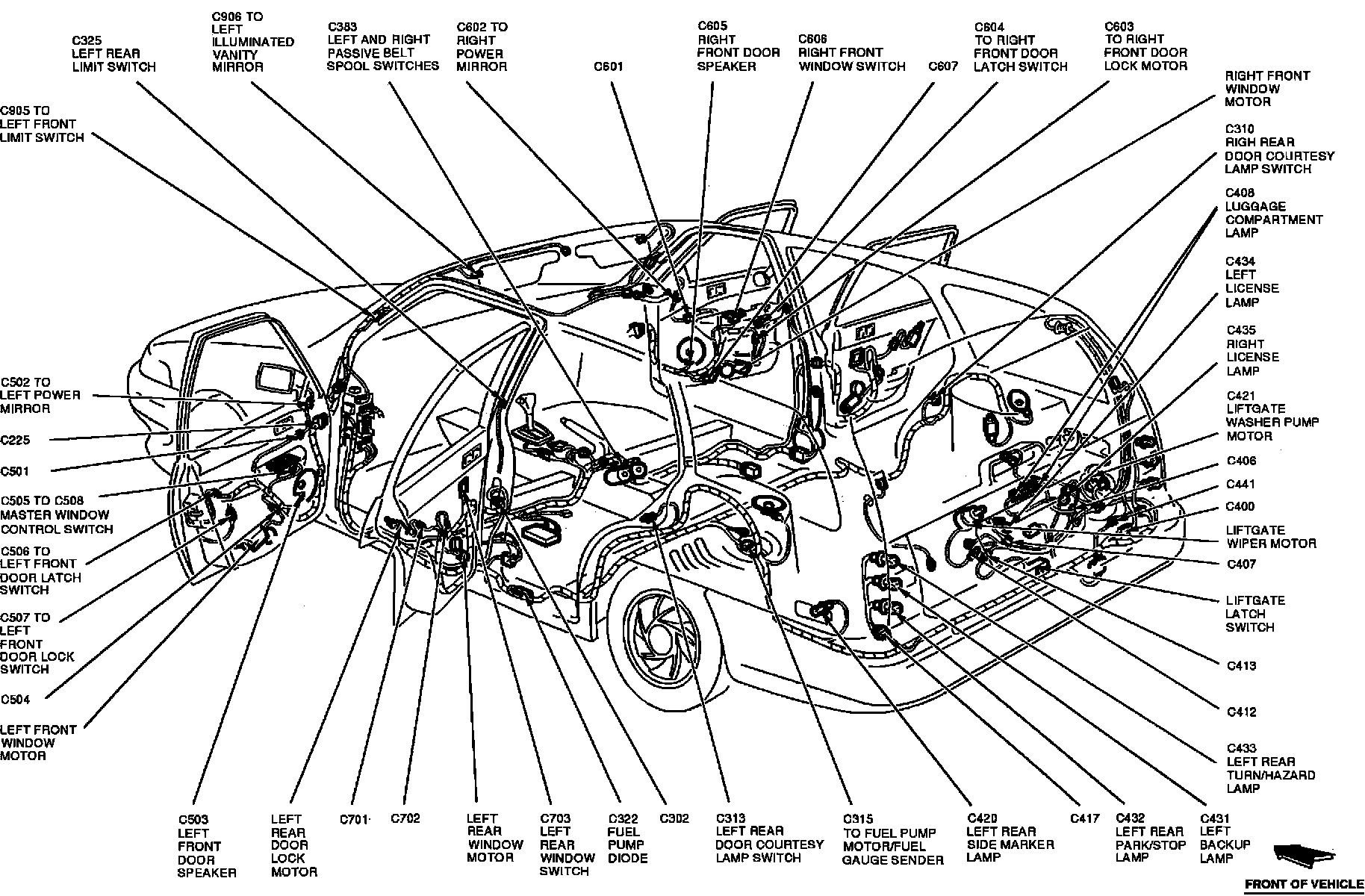

Component Locations:

FUEL PUMP DIODE
FUEL PUMP MOTOR/FUEL GAUGE SENDER
LEFT AND RIGHT PASSIVE BELT SPOOL SWITCHES
LEFT BACKUP LAMP
LEFT FRONT DOOR LATCH SWITCH
LEFT FRONT DOOR LOCK SWITCH
LEFT FRONT DOOR SPEAKER
LEFT FRONT LIMIT SWITCH
LEFT FRONT WINDOW MOTOR
LEFT ILLUMINATED VANITY MIRROR
LEFT LICENSE LAMP
LEFT POWER MIRROR
LEFT REAR DOOR COURTESY LAMP SWITCH
LEFT REAR DOOR LOCK MOTOR
LEFT REAR LIMIT SWITCH
LEFT REAR PARK/STOP LAMP
LEFT REAR SIDE MARKER LAMP
LEFT REAR WINDOW SWITCH
LEFT REAR/TURN/HAZARD LAMP
LIFTGATE LATCH SWITCH
LIFTGATE WASHER PUMP MOTOR
LIFTGATE WIPER MOTOR
LUGGAGE COMPARTMENT LAMP
MASTER WINDOW CONTROL SWITCH
RIGHT FRONT DOOR LATCH SWITCH
RIGHT FRONT DOOR LOCK MOTOR
RIGHT FRONT DOOR SPEAKER
RIGHT FRONT WINDOW MOTOR
RIGHT FRONT WINDOW SWITCH
RIGHT LICENSE LAMP
RIGHT POWER MIRROR
RIGHT REAR DOOR COURTESY LAMP SWITCH

Component Locations:

AUTOMATIC TRANSAXLE SELECTOR ILLUMINATION LAMP
DOME LAMP ASSEMBLY AND DOME/MAP LAMP ASSEMBLY
DRIVERS SEAT BELT BUCKLE SWITCH
HI MOUNT STOP LAMP
INERTIA FUEL SHUTOFF SWITCH
JOINT CONNECTOR
LEFT FRONT DOOR COURTESY LAMP SWITCH
LEFT PASSIVE RESTRAINT MOTOR AND MANUAL REWIND CONNECTOR
LEFT REAR SPEAKER
LIFTGATE LOCK MOTOR
PARK BRAKE SWITCH
PASSIVE RESTRAINT MODULE
POWER MOONROOF COMPONENTS AND MAP LAMP ASSEMBLY
REAR WINDOW DEFROST GRID (POWER SIDE)
REAR WINDOW DEFROST GRID (GROUND SIDE)
RIGHT BACKUP LAMP
RIGHT FRONT DOOR COURTESY LAMP SWITCH
RIGHT FRONT LIMIT SWITCH
RIGHT ILLUMINATED VANITY MIRROR
RIGHT PASSIVE RESTRAINT MOTOR AND MANUAL REWWIND CONNECTOR
RIGHT REAR DOOR LOCK MOTOR
RIGHT REAR LIMIT SWITCH
RIGHT REAR PARK/STOP LAMP
RIGHT REAR SIDE MARKER LAMP
RIGHT REAR SPEAKER
RIGHT REAR WINDOW MOTOR
RIGHT REAR WINDOW SWITCH
RIGHT REAR/TURN/HAZARD LAMP
SHIFT LOCK ACTUATOR AND PARK SENSE SWITCH
