Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercury
>>
1995
>>
Tracer L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
With Automatic Transmission
With Automatic Transmission

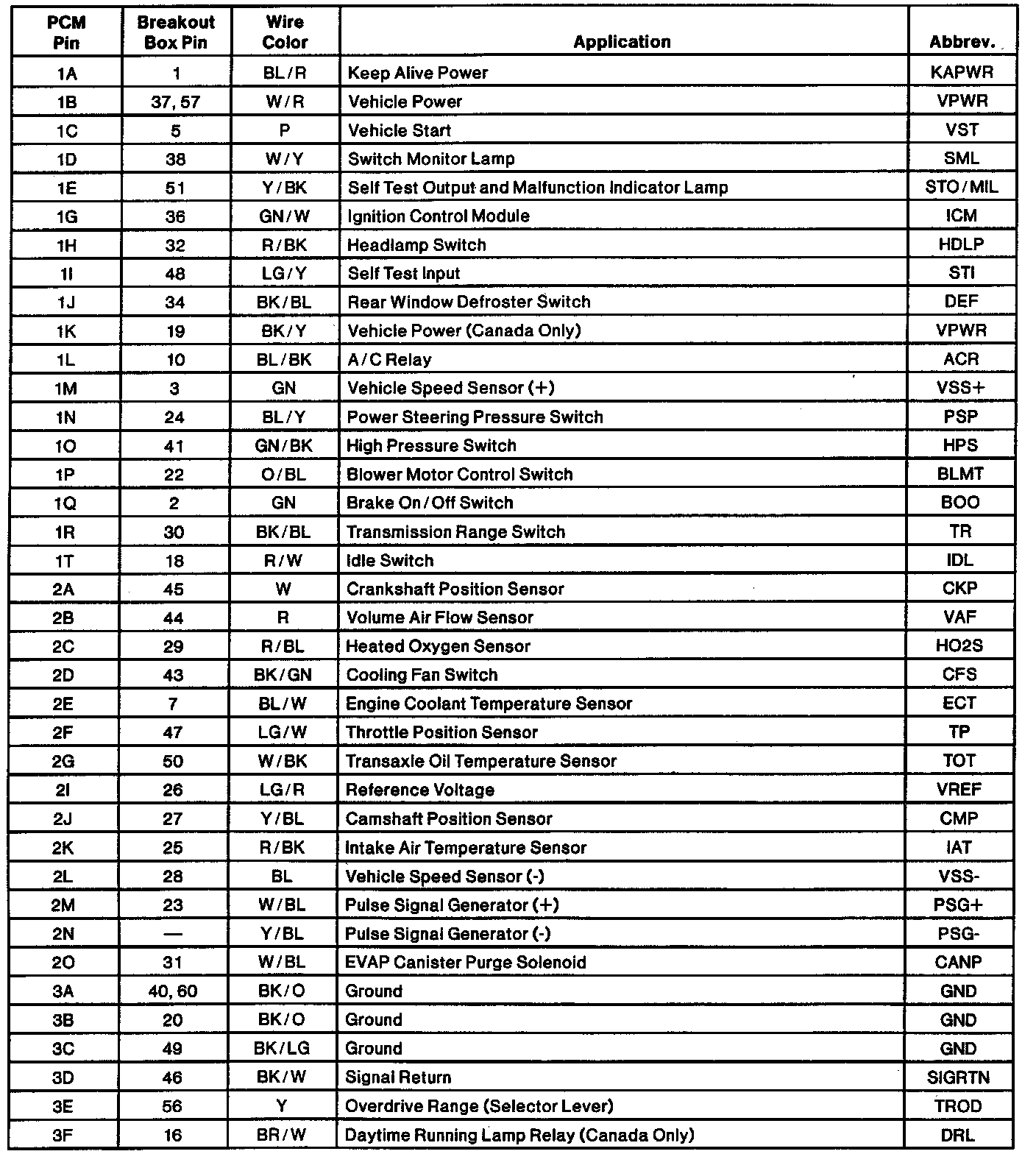

Engine Electrical Connector Pin Usage:

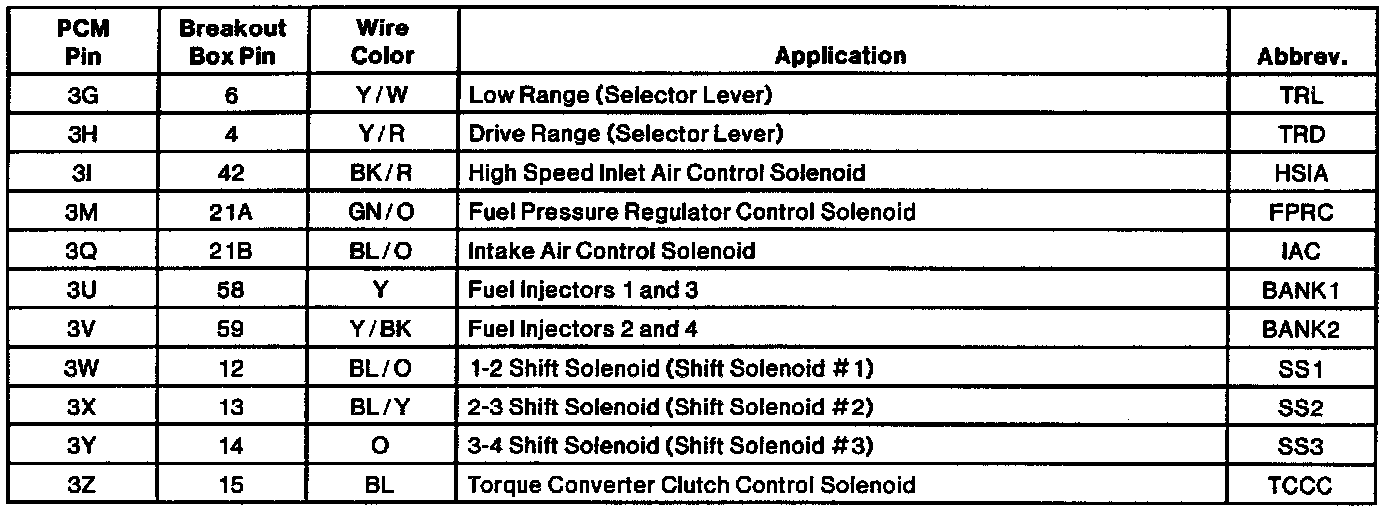

Engine Electrical Connector Pin Usage:
