Full Body Views

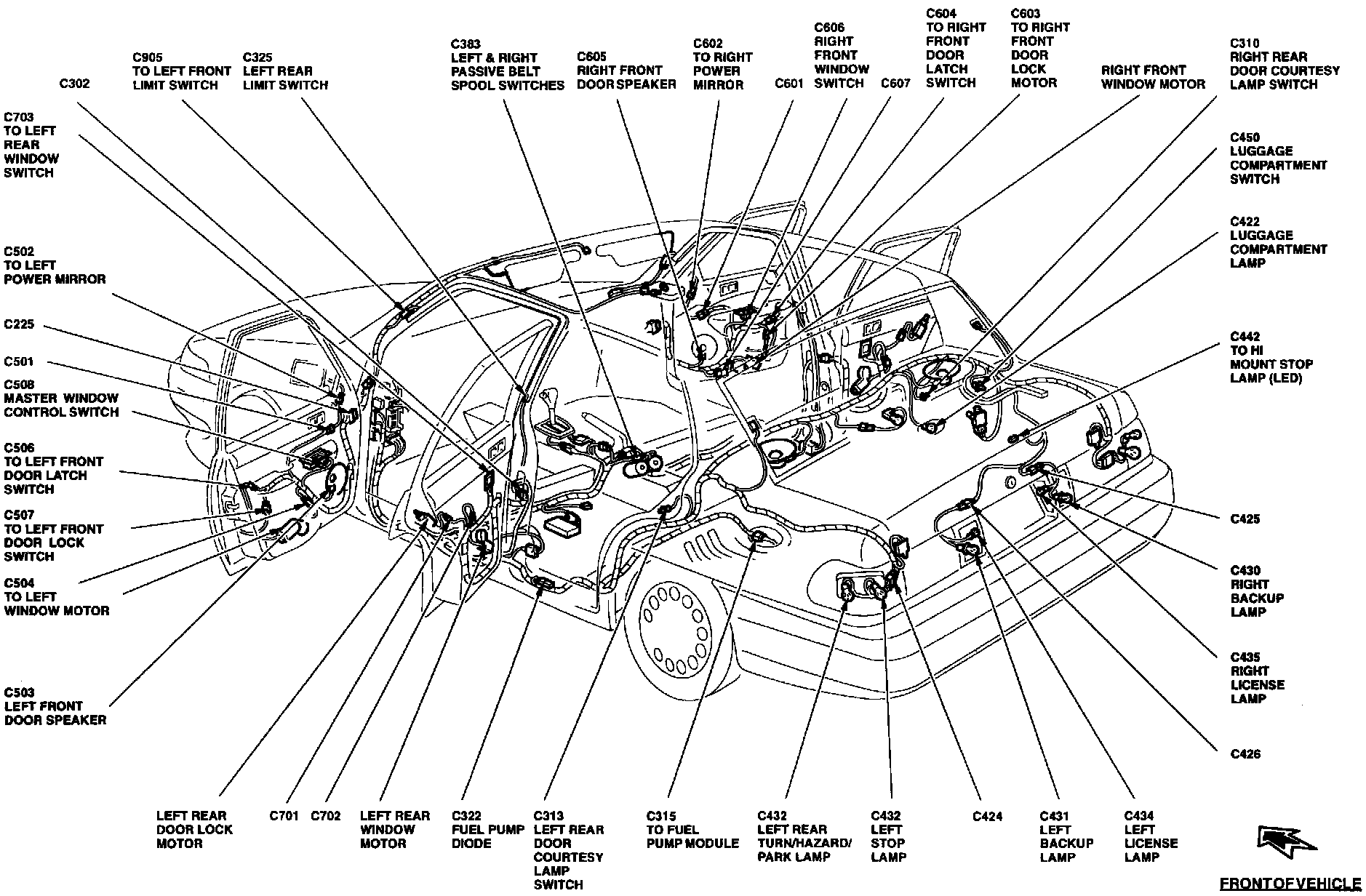

Full Body View (Sedan):

FUEL PUMP DIODE
FUEL PUMP MODULE
HIGH MOUNT STOP LAMP
LEFT AND RIGHT PASSIVE BELT SPOOL SWITCHES
LEFT BACKUP LAMP
LEFT FRONT DOOR LATCH SWITCH
LEFT FRONT DOOR LOCK SWITCH
LEFT FRONT DOOR SPEAKER
LEFT FRONT LIMIT SWITCH
LEFT LICENSE LAMP
LEFT POWER MIRROR
LEFT REAR DOOR COURTESY LAMP SWITCH
LEFT REAR DOOR LOCK MOTOR
LEFT REAR LIMIT SWITCH
LEFT REAR TURN/HAZARD/PARK LAMP
LEFT REAR WINDOW MOTOR
LEFT REAR WINDOW SWITCH
LEFT STOP LAMP
LEFT WINDOW MOTOR
LUGGAGE COMPARTMENT LAMP
LUGGAGE COMPARTMENT SWITCH
MASTER WINDOW CONTROL SWITCH
RIGHT BACKUP LAMP
RIGHT FRONT DOOR LATCH SWITCH
RIGHT FRONT DOOR LOCK MOTOR
RIGHT FRONT DOOR SPEAKER
RIGHT FRONT WINDOW MOTOR
RIGHT FRONT WINDOW SWITCH
RIGHT LICENSE LAMP
RIGHT POWER MIRROR
RIGHT REAR DOOR COURTESY LAMP SWITCH

Full Body View (Sedan):

AUTOMATIC TRANSAXLE SELECTOR ILLUMINATION LAMP
DOME LAMP ASSEMBLY
DOME/MAP LAMP ASSEMBLY
DRIVER'S SEAT BELT BUCKLE SWITCH
HIGH MOUNT STOP LAMP
INERTIA FUEL SHUTOFF SWITCH
JOINT CONNECTOR
LEFT FRONT DOOR COURTESY LAMP SWITCH
LEFT PASSIVE RESTRAINT MOTOR
LEFT REAR SPEAKER
MANUAL REWIND CONNECTOR
MAP LAMP ASSEMBLY
PARK BRAKE SWITCH
PARK SENSE SWITCH
PASSIVE RESTRAINT MODULE
POWER MOONROOF COMPONENTS
REAR WINDOW DEFROST GRID
RIGHT FRONT DOOR COURTESY LAMP SWITCH
RIGHT FRONT LIMIT SWITCH
RIGHT PASSIVE RESTRAINT MOTOR
RIGHT REAR DOOR LOCK MOTOR
RIGHT REAR LIMIT SWITCH
RIGHT REAR SPEAKER
RIGHT REAR TURN/HAZARD/PARK LAMP
RIGHT REAR WINDOW MOTOR
RIGHT REAR WINDOW SWITCH
RIGHT STOP LAMP
SHIFT LOCK ACTUATOR
