IAT - Intake Air Temperature Sensor
>>

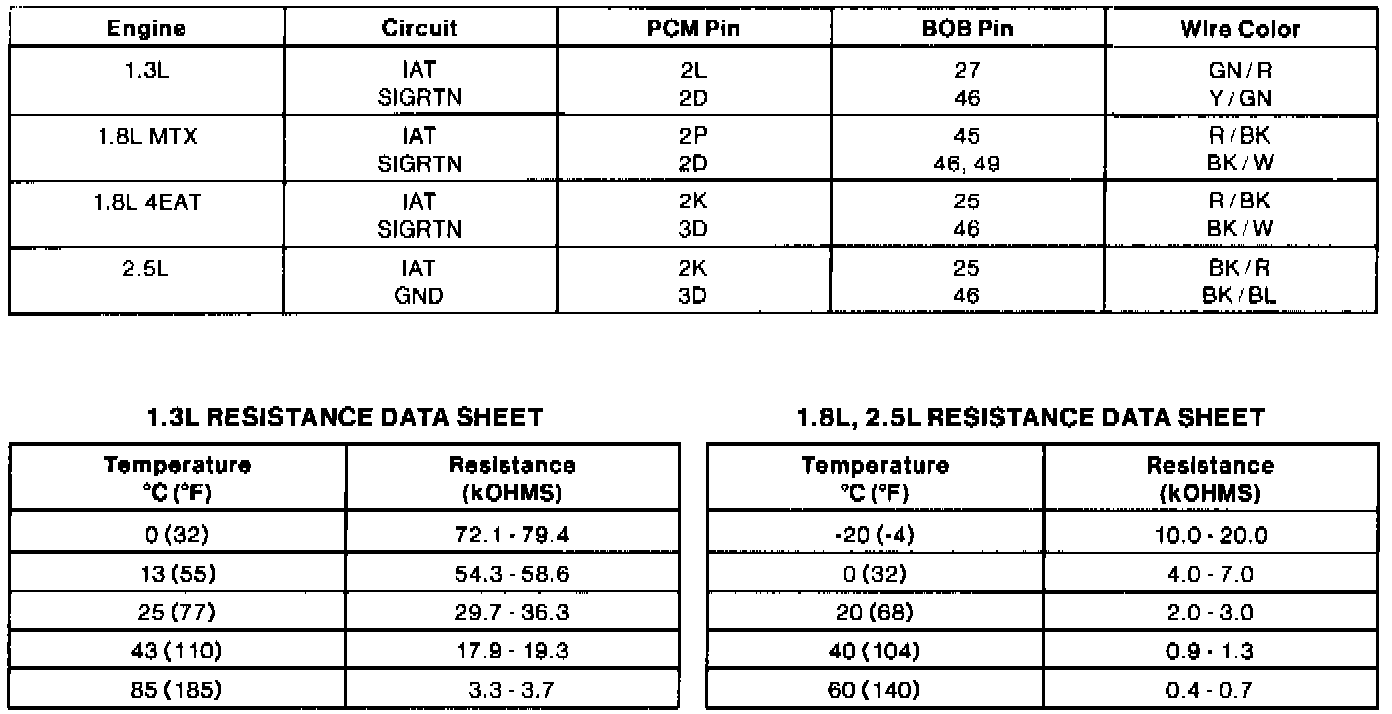

IAT Circuit Data and Sensor Resistance
IAT Circuit Data and Sensor Resistance
IAT Circuit Data and Sensor Resistance:
