Mercury
>>
1995
>>
Tracer L4-116 1.9L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C241
C241

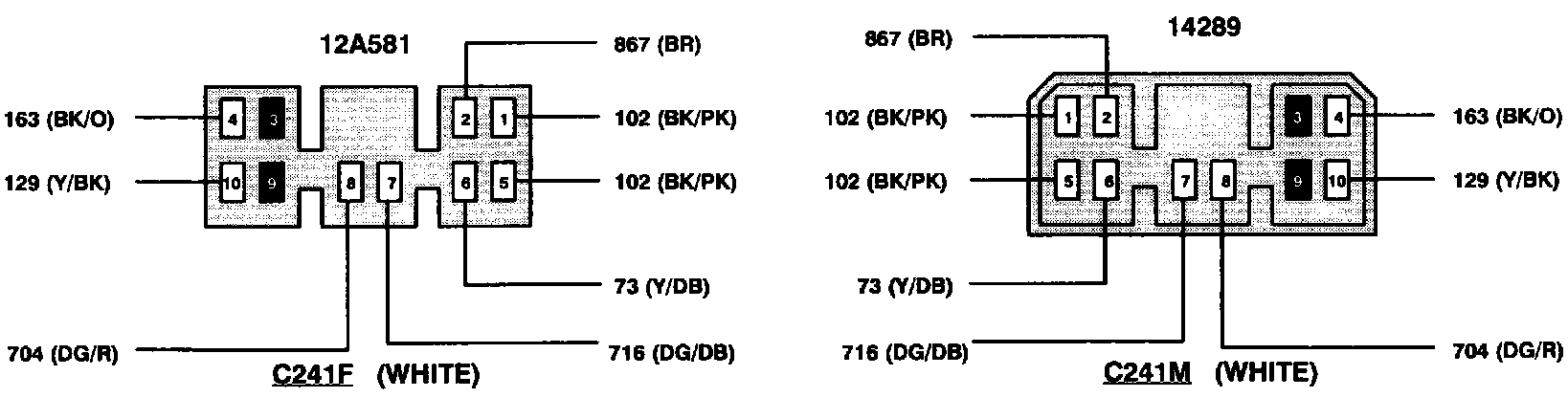

In Line Connector Faces - C241:
