Home >> Mercury >> 1995 >> Tracer L4-116 1.9L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Belt Control Module

Seat Belt Control Module

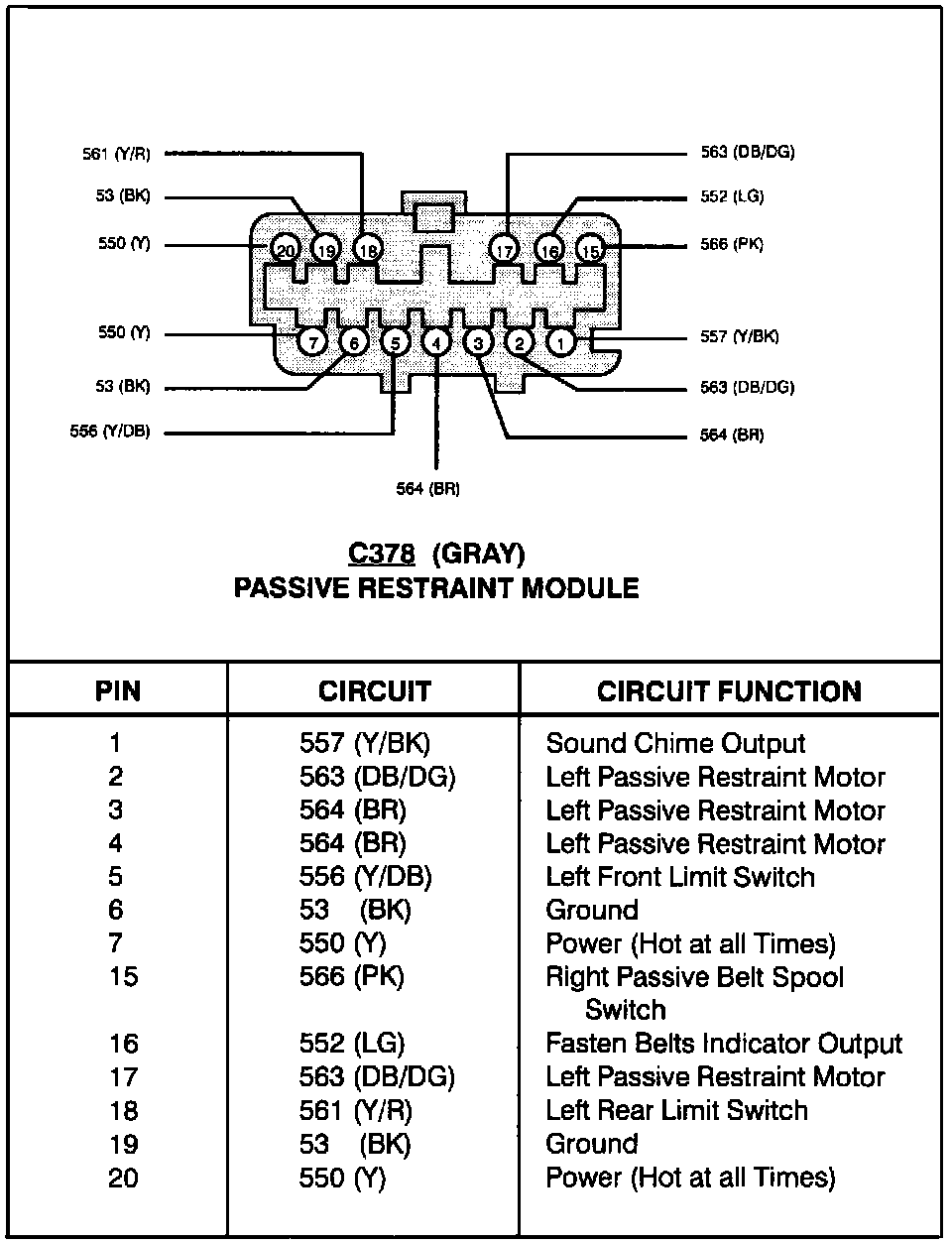

Passive Restraint Module (C378):

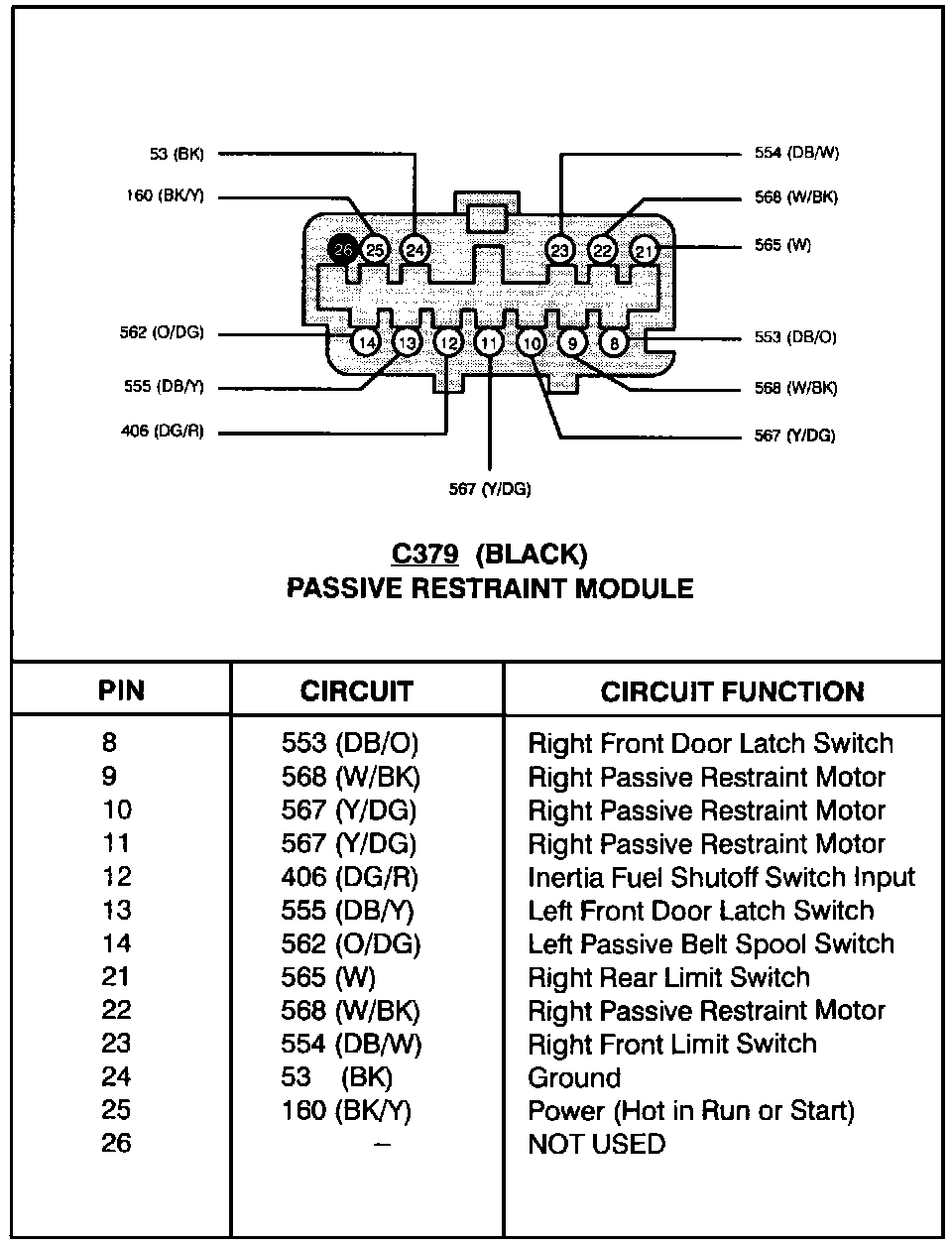

Passive Restraint Module (C379):
