Home >> Mercury >> 1996 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Diagrams >> Connector Views >> Data Link Connector 1

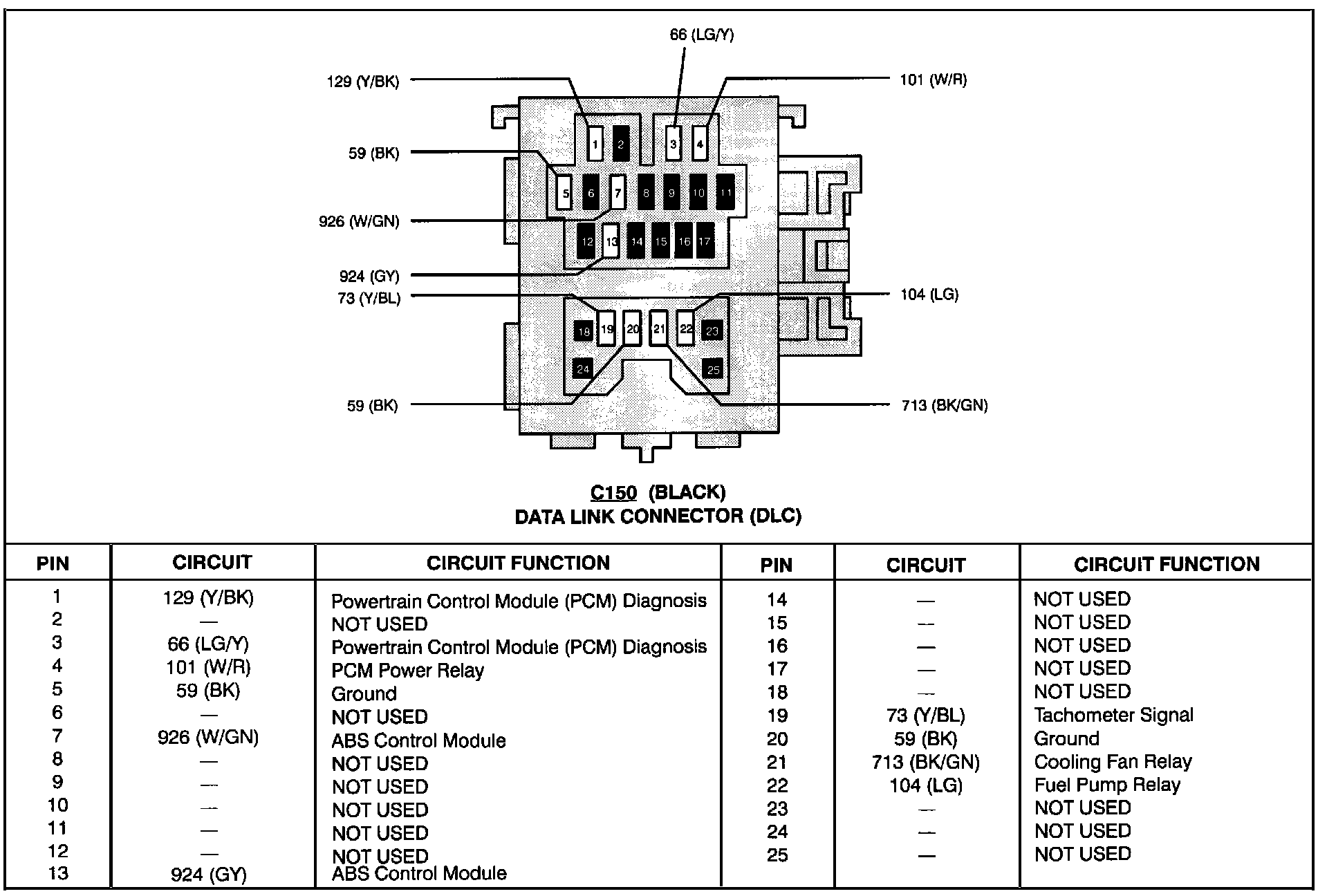

Data Link Connector 1

Data Link Connector 1:
