Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercury
>>
1997
>>
Cougar/XR7 V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

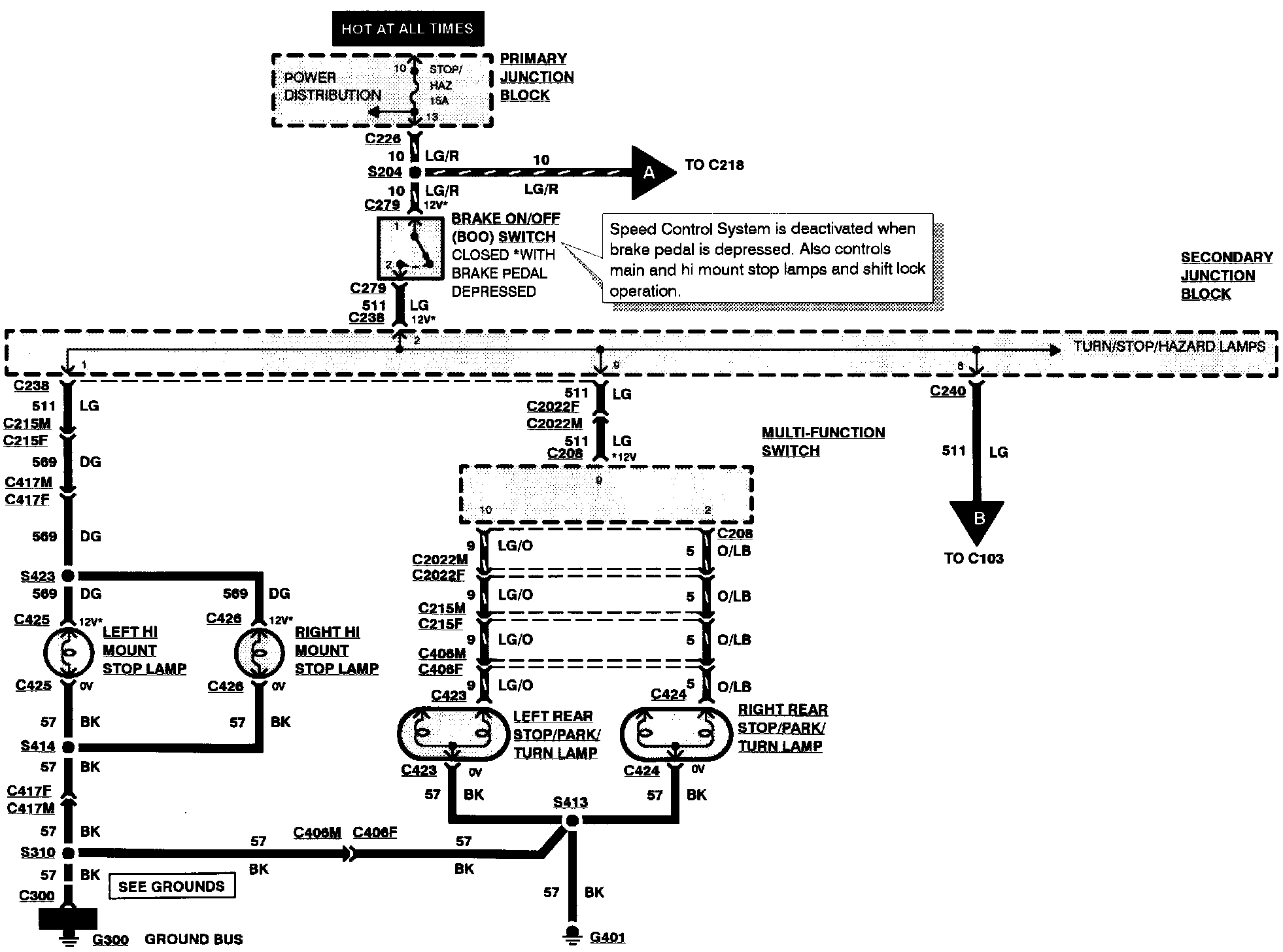

Speed Control (Part 1 Of 3):

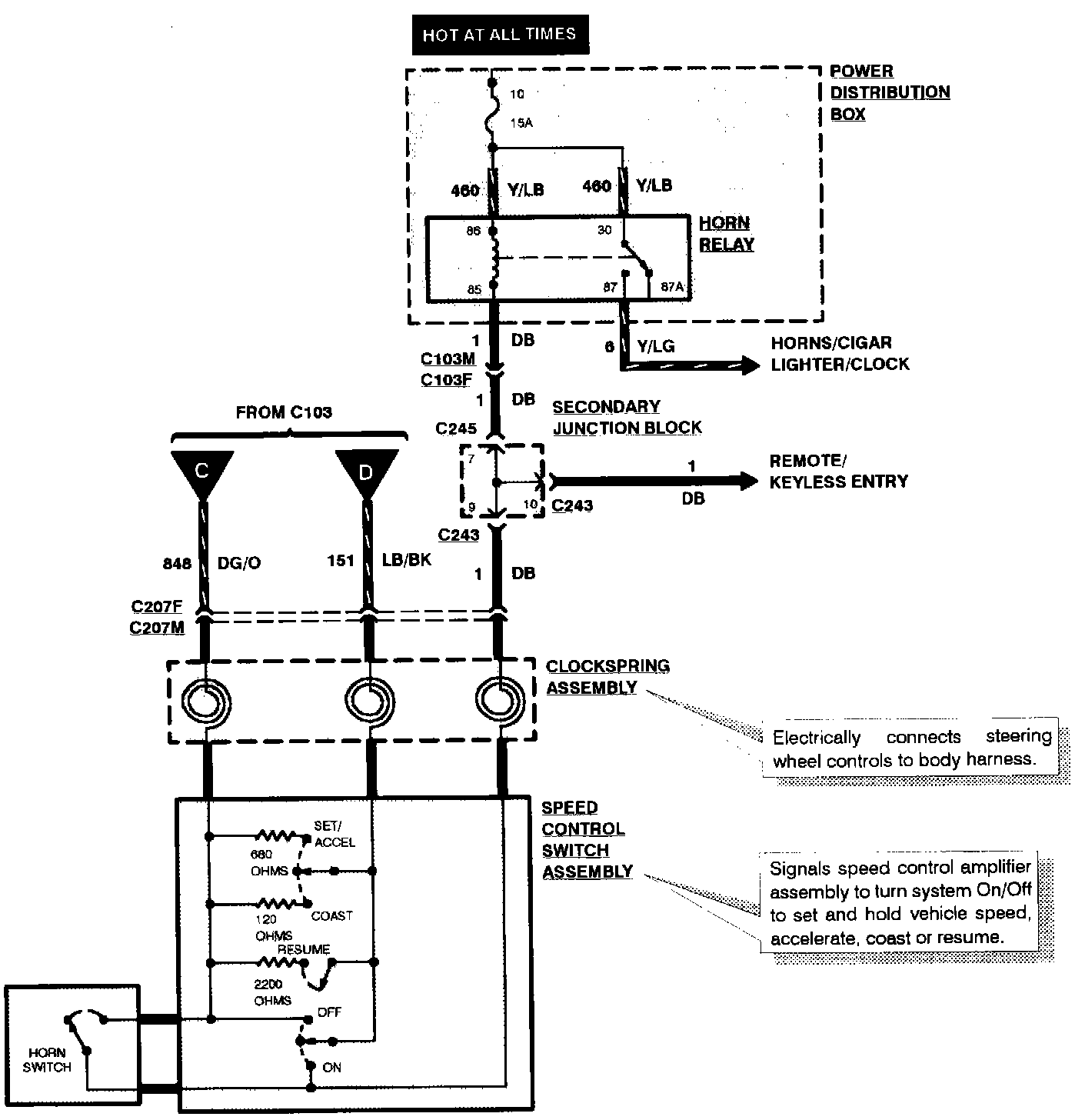

Speed Control (Part 2 Of 3):

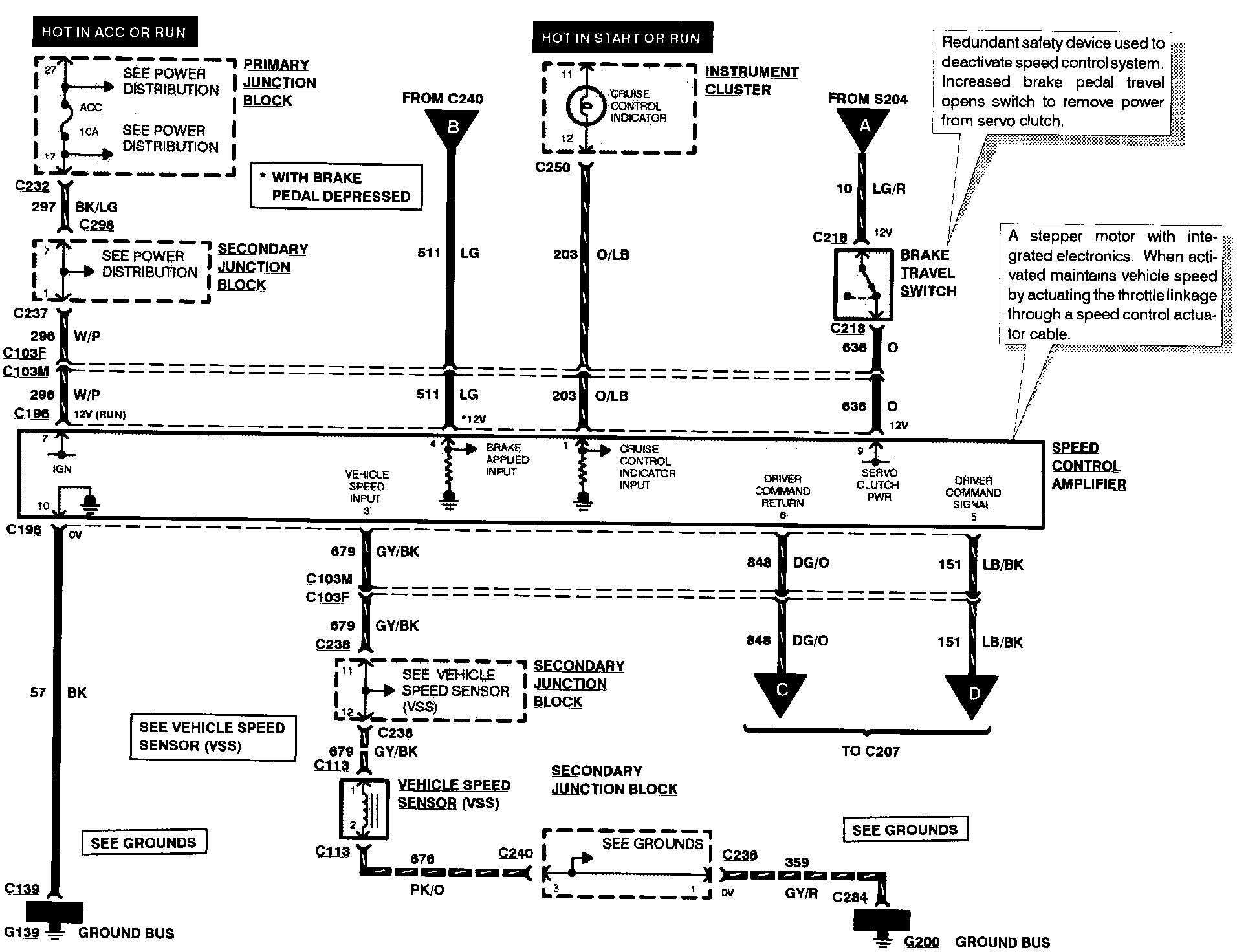

Speed Control (Part 3 Of 3):
