EGR Tube: Service and Repair

REMOVAL

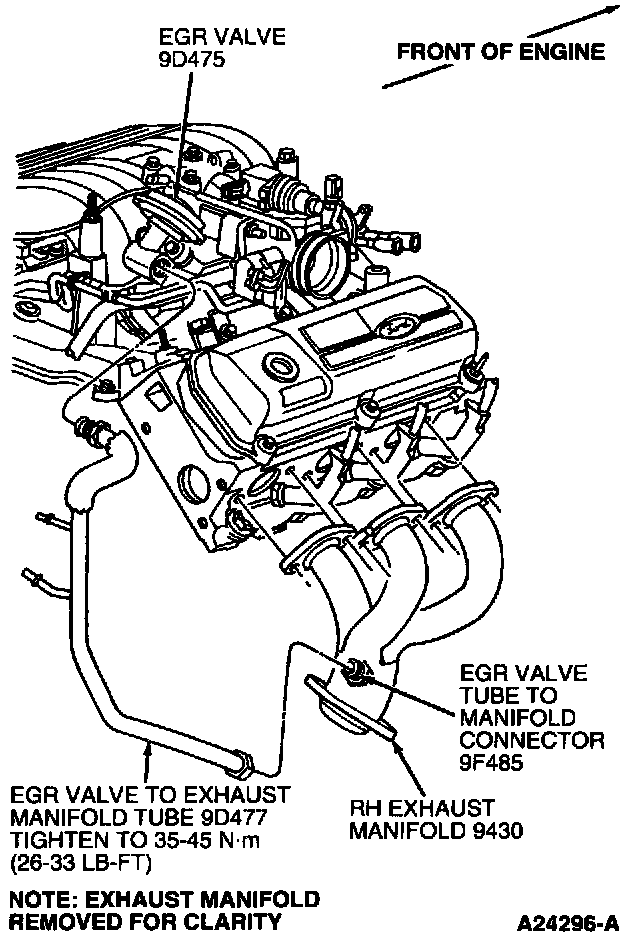

1. Remove air cleaner outlet tube.
2. Disconnect pressure feedback exhaust sensor hoses from EGR tube.
3. Disconnect EGR tube at EGR valve and EGR tube to manifold connector.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten EGR tube to EGR valve and EGR tube to manifold connector to 35-45 Nm (26-33 lb ft).
