Control Assembly: Testing and Inspection

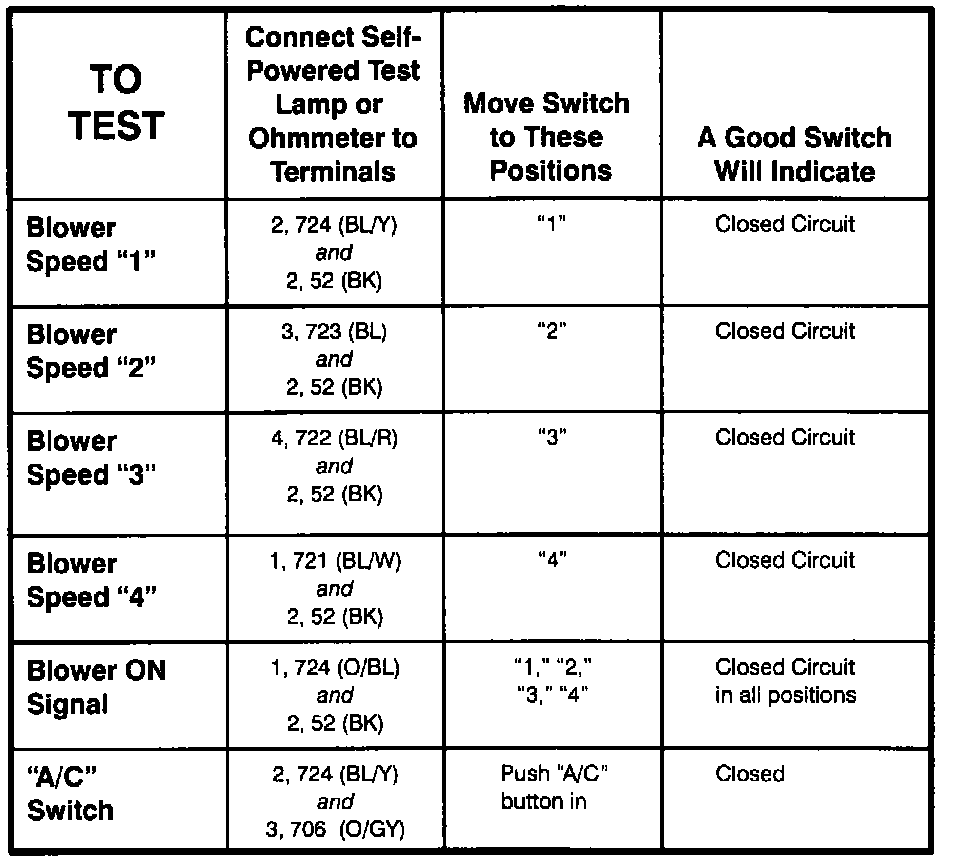

Component Testing Procedure:

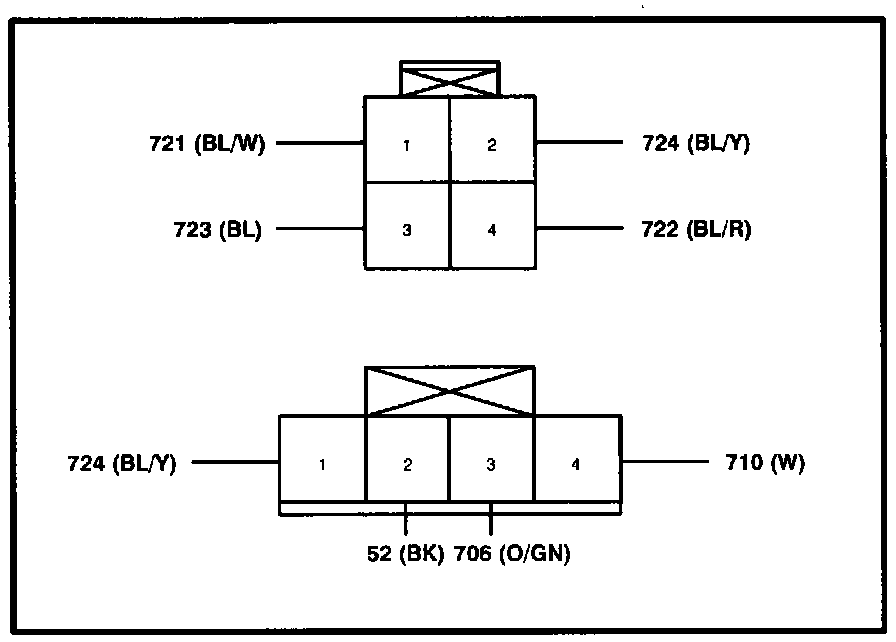

Terminal Locations:

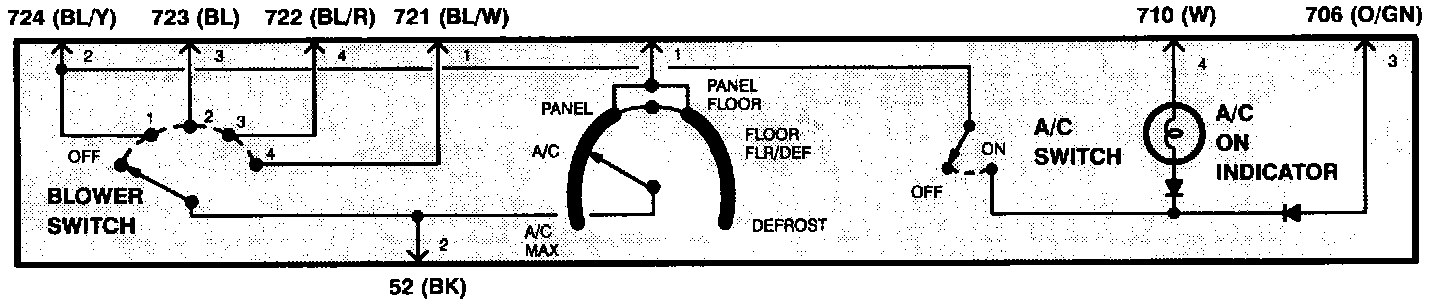

Schematic:
