Home
>>
Mercury
>>
1999
>>
Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Module Communication Network
>>
Pinpoint Tests
>>
H: Pass. Antitheft Sys. (PATS) Module No Response To NGS Tester
H: Pass. Antitheft Sys. (PATS) Module No Response To NGS Tester
H1 - H2:

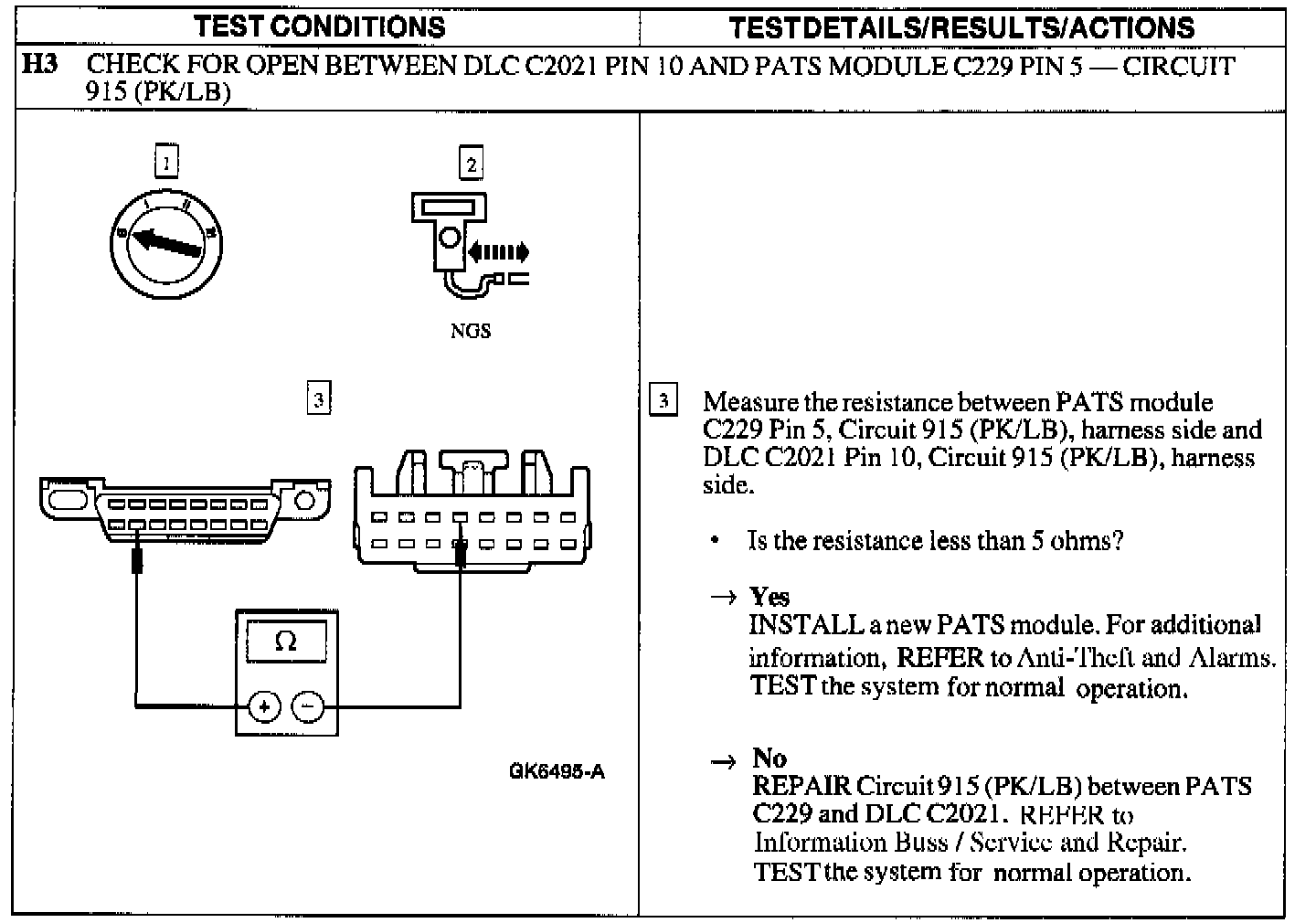

H3:
