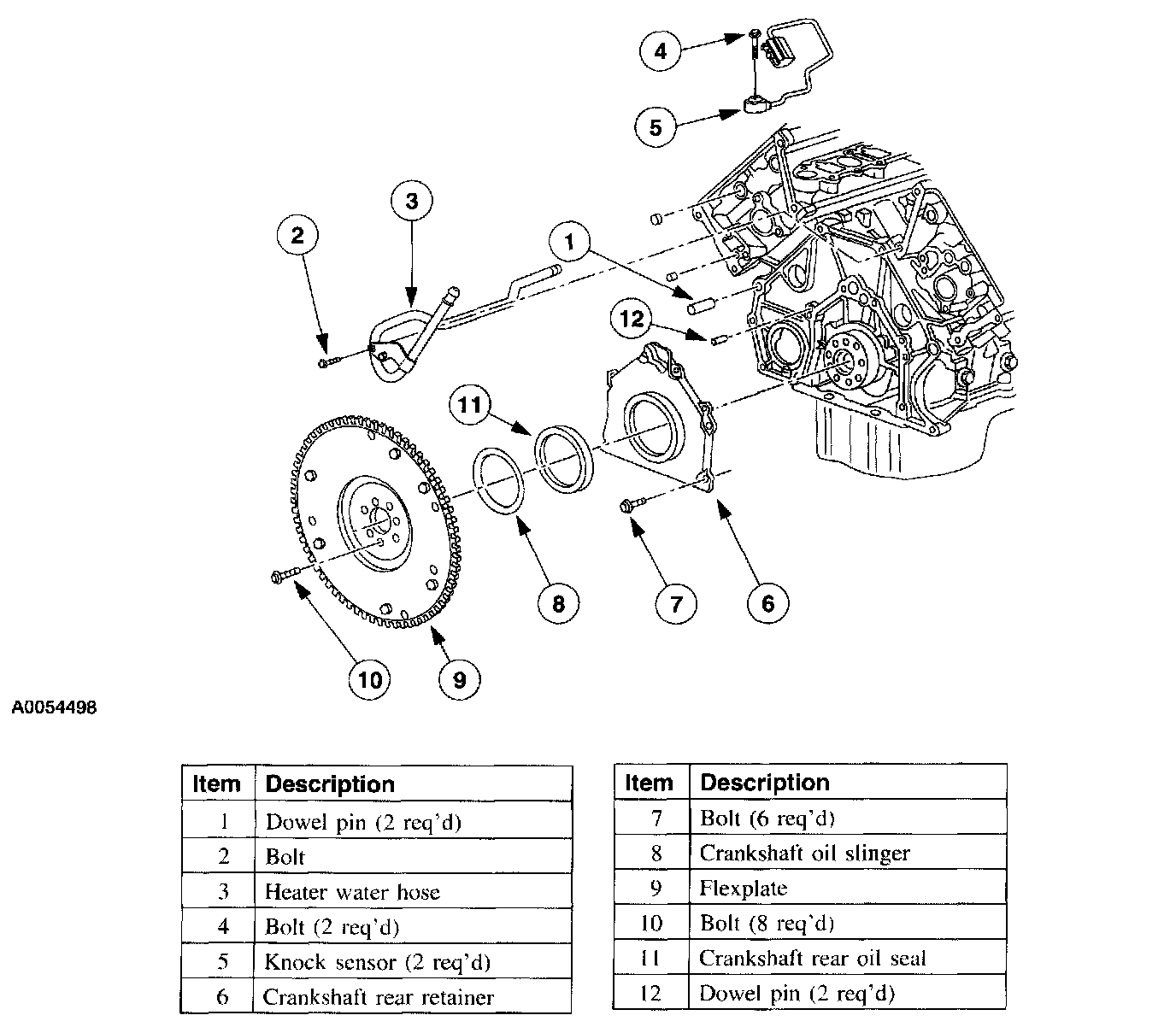

Cylinder Block and Flexplate Assembly
Cylinder Block and Flexplate Assembly
Cylinder Block and Flexplate Assembly
