Front Cover and Timing Drive Components

Front Cover and Timing Drive Components

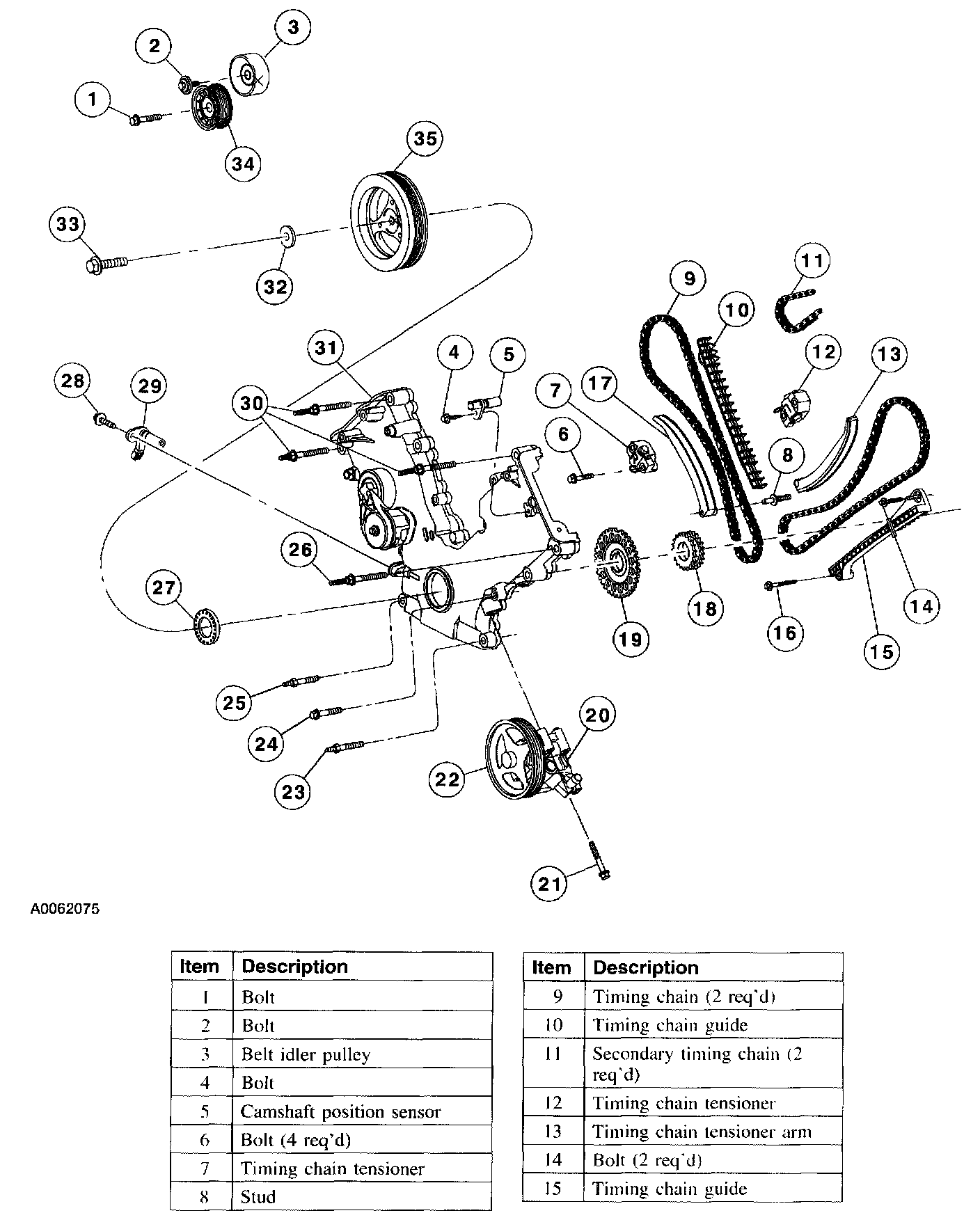

Part 1 Of 2:

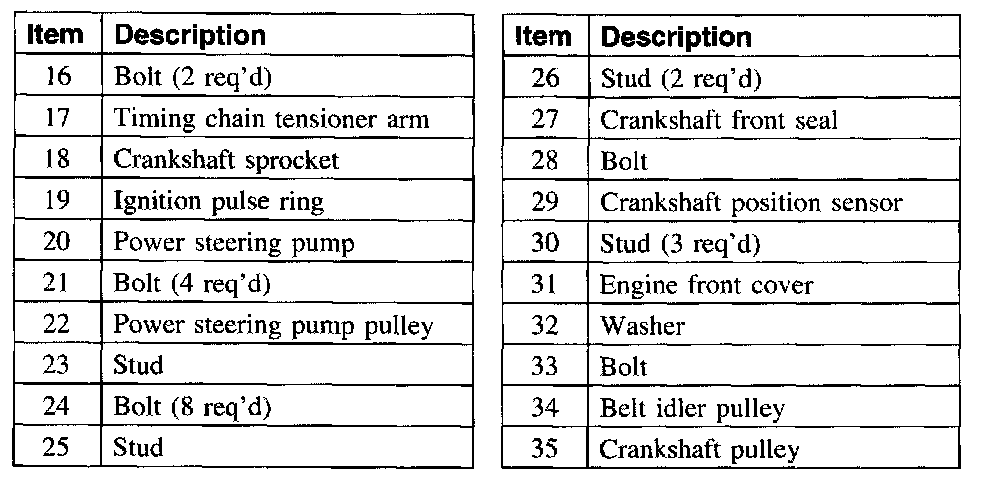

Part 2 Of 2:
