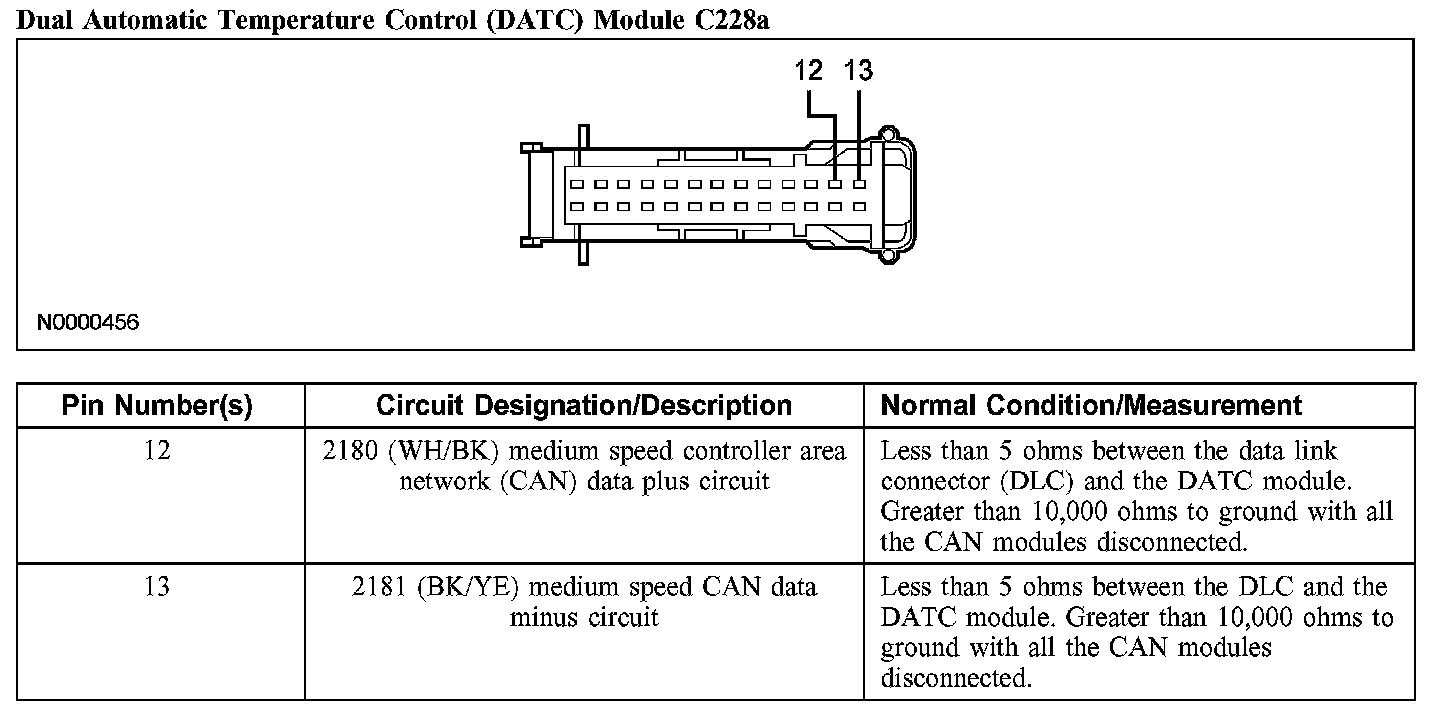

Dual Automatic Temperature Control (DATC) Module C228a

Dual Automatic Temperature Control (DATC) Module C228a:
