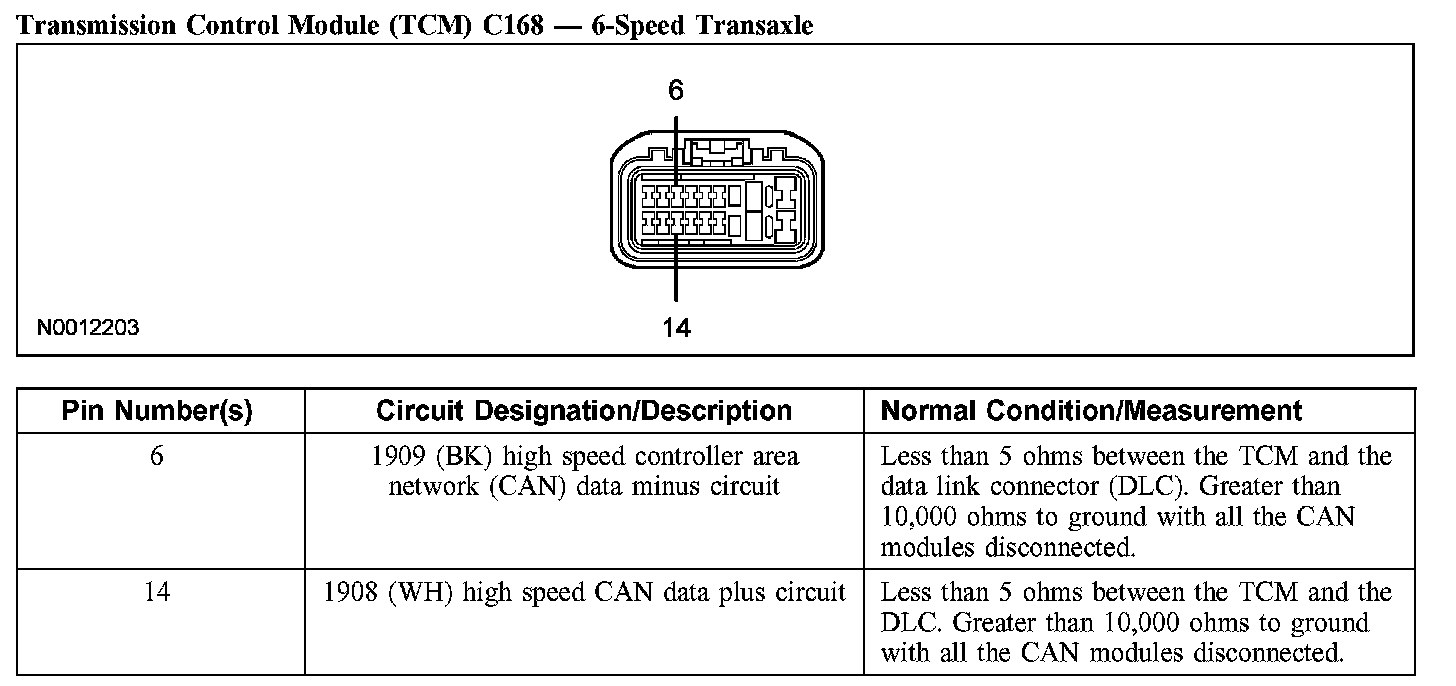

Transmission Control Module (TCM) C168 - 6-Speed Transaxle

Transmission Control Module (TCM) C168 - 6-Speed Transaxle:
