Air Register: Service and Repair

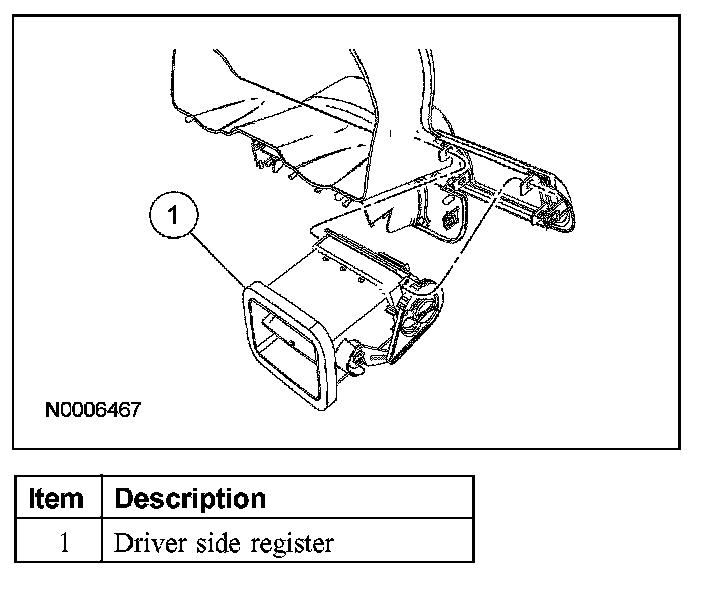

DRIVER SIDE REGISTER

Removal and Installation







1. Remove the instrument cluster finish panel.
2. Release the 4 clips and remove the driver side register.
3. To install, reverse the removal procedure.

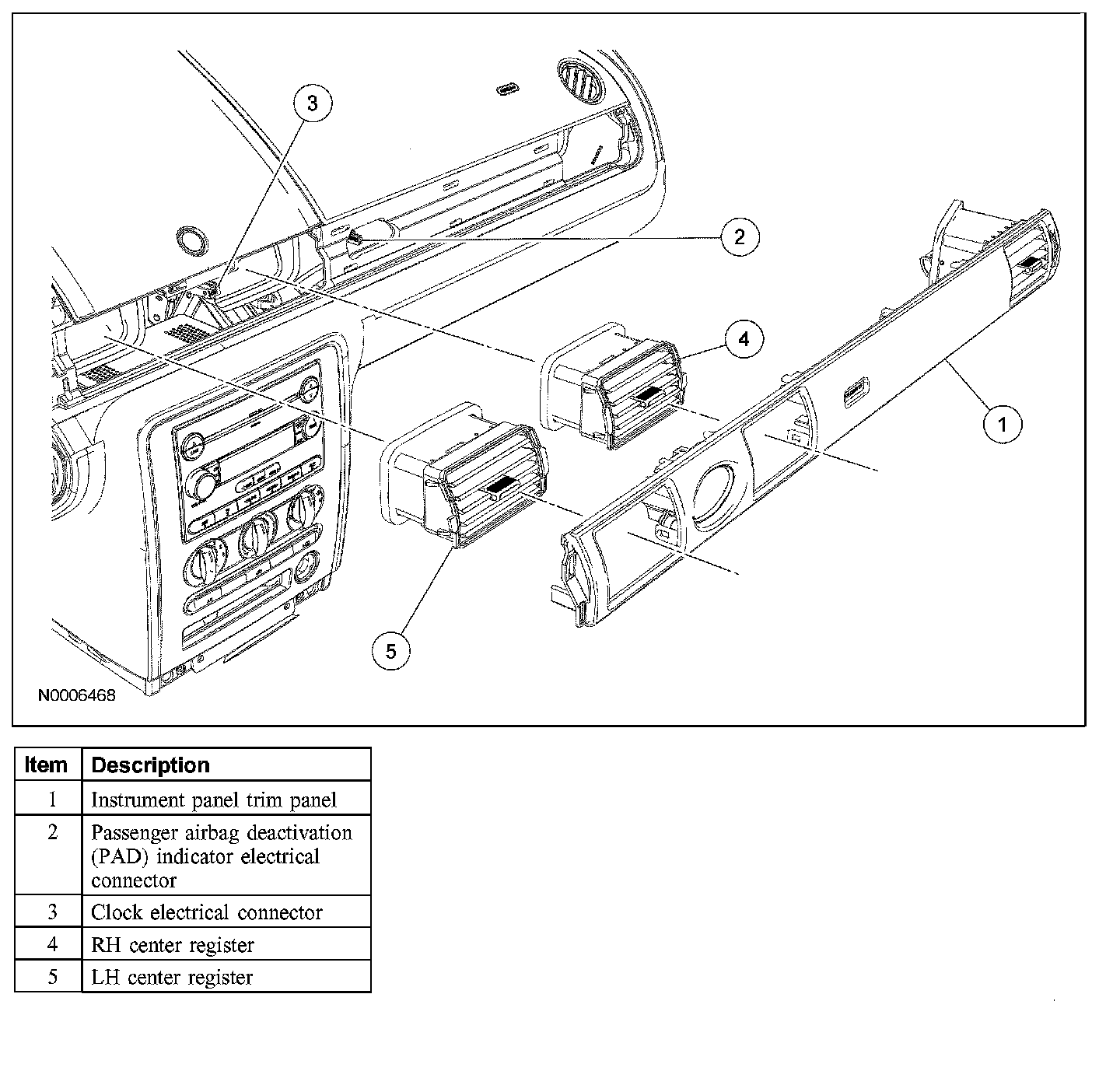

CENTER REGISTERS

Removal and Installation







1. Remove the instrument cluster finish panel.
2. Remove the instrument panel trim panel.
3. Disconnect the PAD indicator electrical connector.
4. Disconnect the clock electrical connector (if equipped).
5. Release the 4 clips and remove the RH center register.
6. Release the 4 clips and remove the LH center register.
7. To install, reverse the removal procedure.

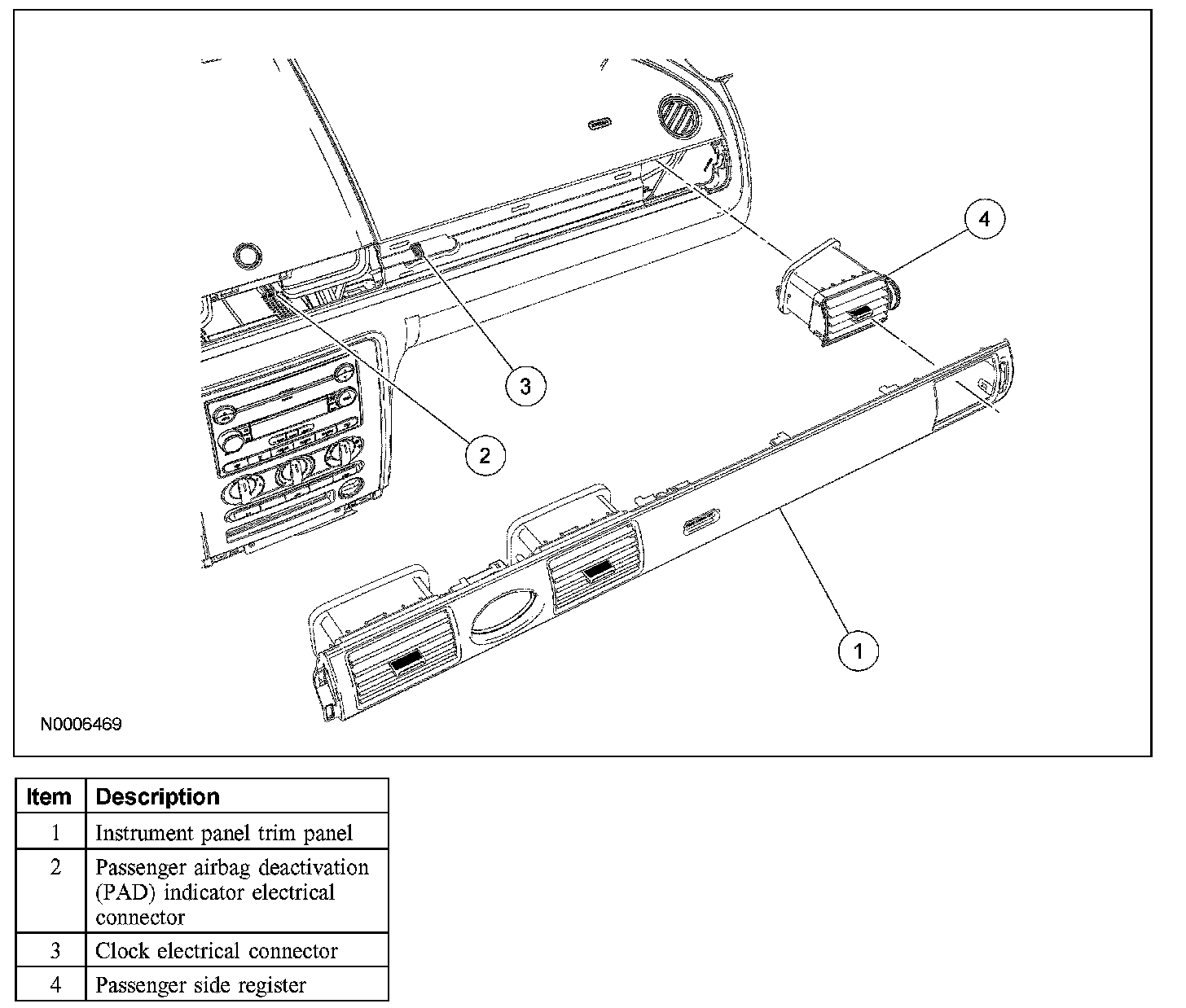

PASSENGER SIDE REGISTER

Removal and Installation







1. Remove the instrument cluster finish panel.
2. Remove the instrument panel trim panel.
3. Disconnect the PAD indicator electrical connector.
4. Disconnect the clock electrical connector (if equipped).
5. Release the 4 clips and remove the passenger side register.
6. To install, reverse the removal procedure.
