Register - Center

REGISTER - CENTER

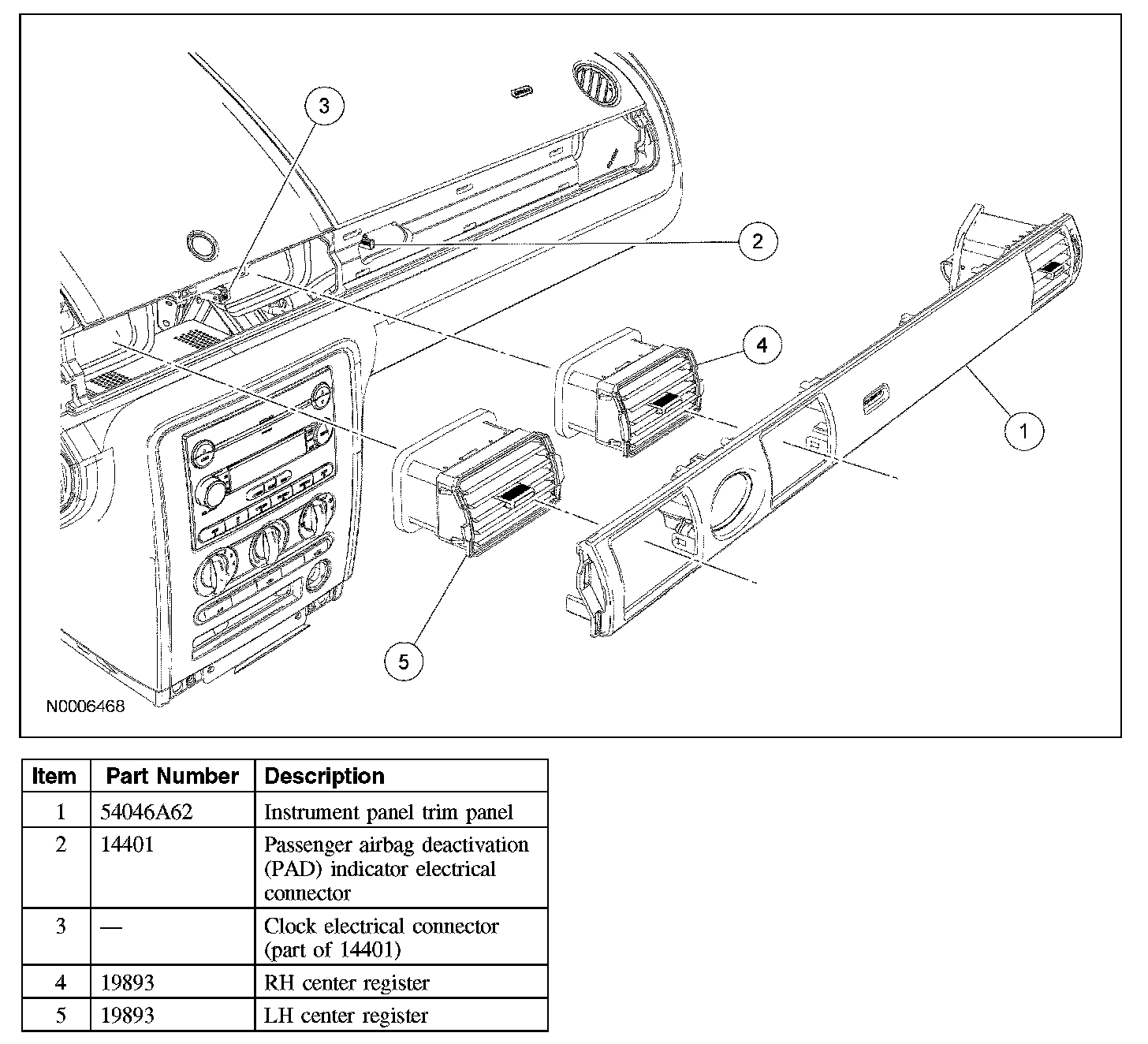

Removal and Installation
1. Remove the instrument cluster finish panel. Dashboard / Instrument Panel
2. Remove the instrument panel trim panel.
3. Disconnect the passenger airbag deactivation (PAD) indicator electrical connector.
4. Disconnect the clock electrical connector (if equipped).
5. Release the 4 clips and remove the RH center register.
6. Release the 4 clips and remove the LH center register.
7. To install, reverse the removal procedure.
