Crankshaft End Play

Crankshaft End Play





NOTE: Refer to the appropriate engine data for the specification.

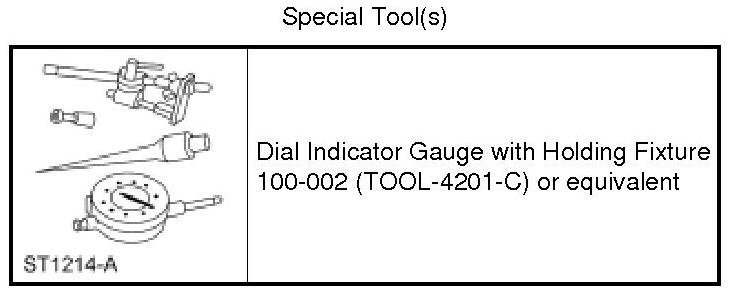

1. Install the Dial Indicator Gauge with Holding Fixture.

2. Position the crankshaft to the rear of the cylinder block.

3. Zero the Dial Indicator Gauge.

4. Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
