Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi Truck
>>
2003
>>
Outlander AWD L4-2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Axle Shaft Assembly
Axle Shaft Assembly

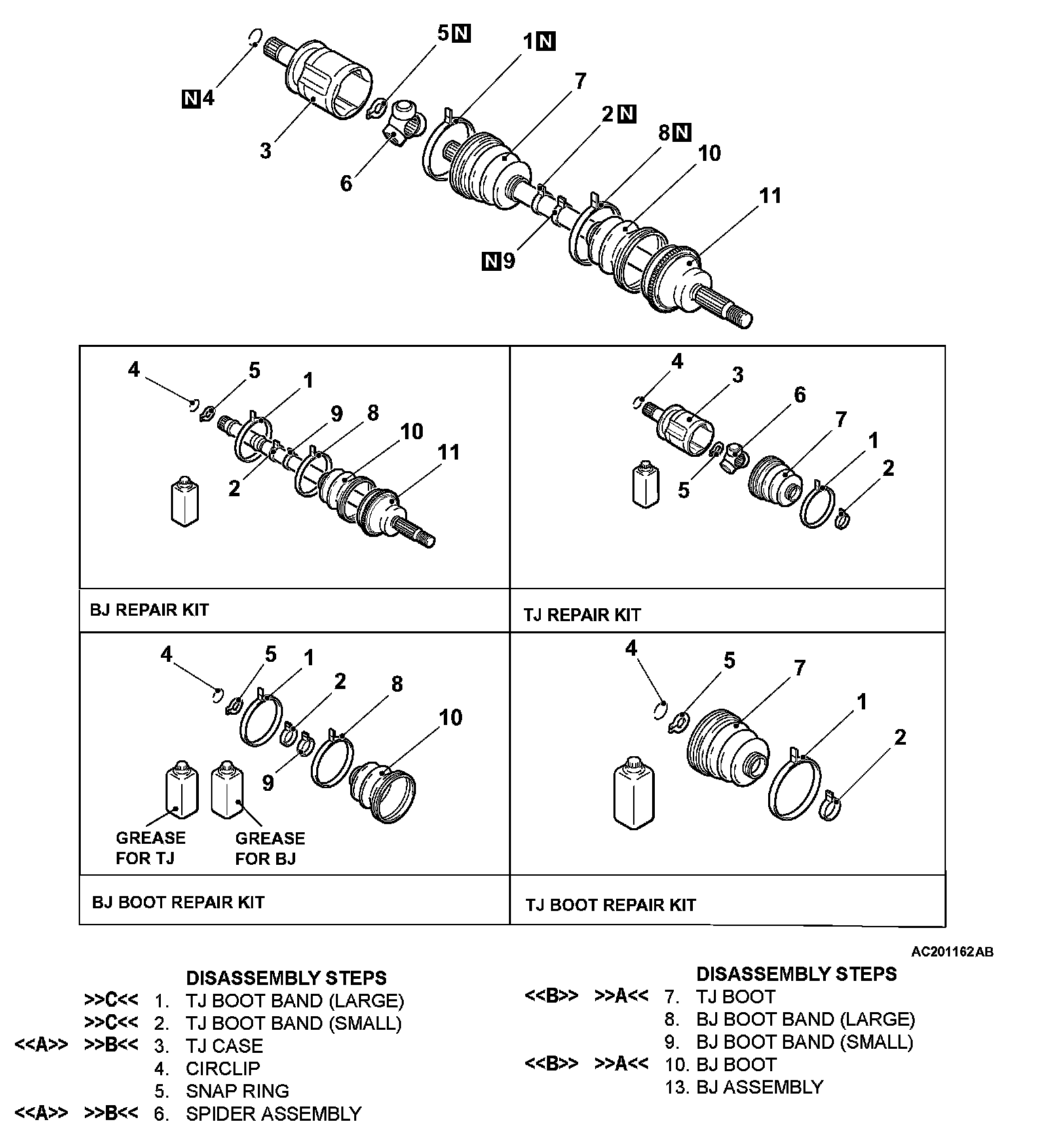

DRIVE SHAFT ASSEMBLY OVERHAUL W/ RELATED COMPONENTS
