Feedback Carburetor Control
Feedback Carburetor Control

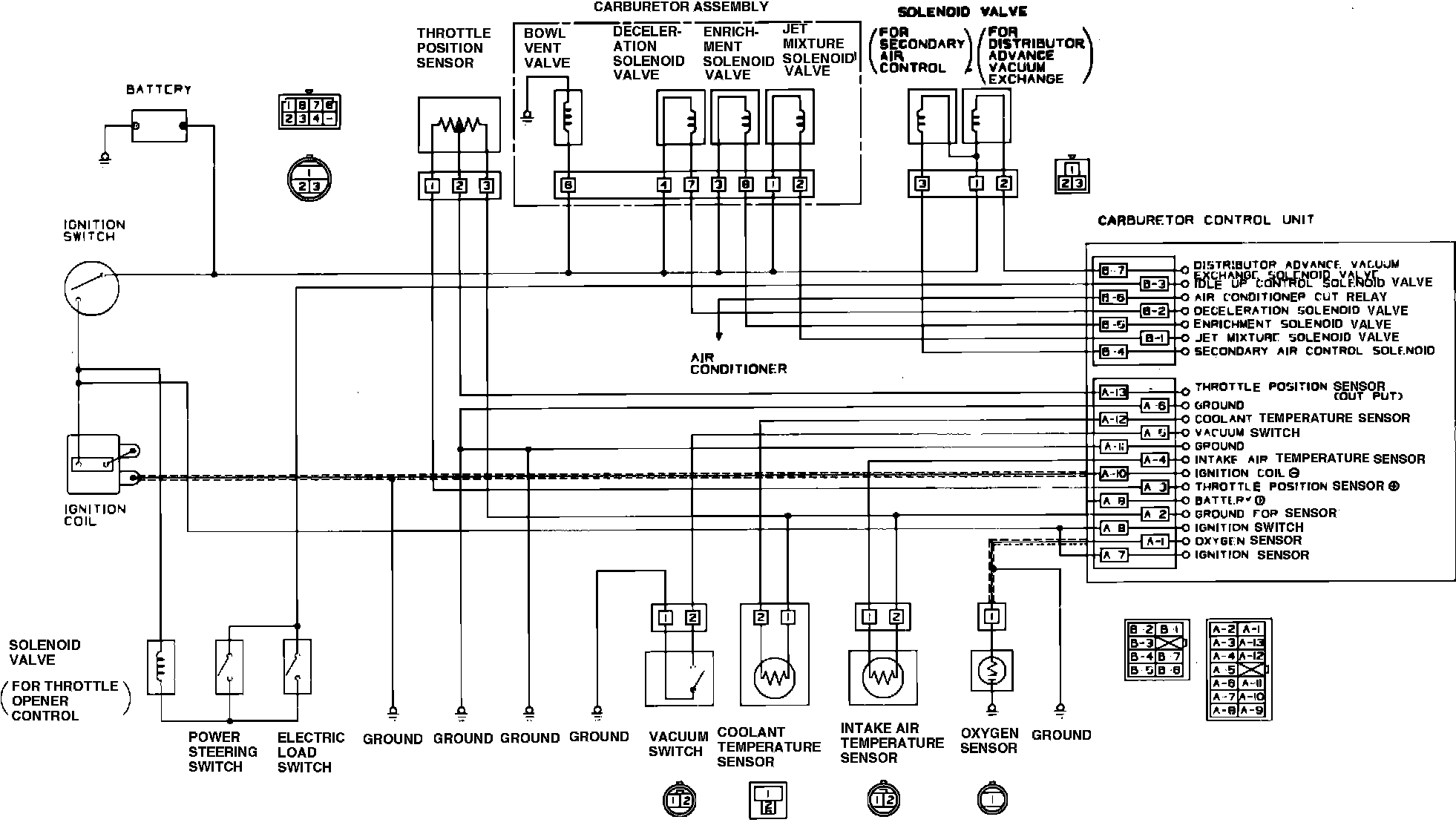

Fig. 7 Feedback Carburetor Control Wiring Circuit.:
