Fuse: Application and ID

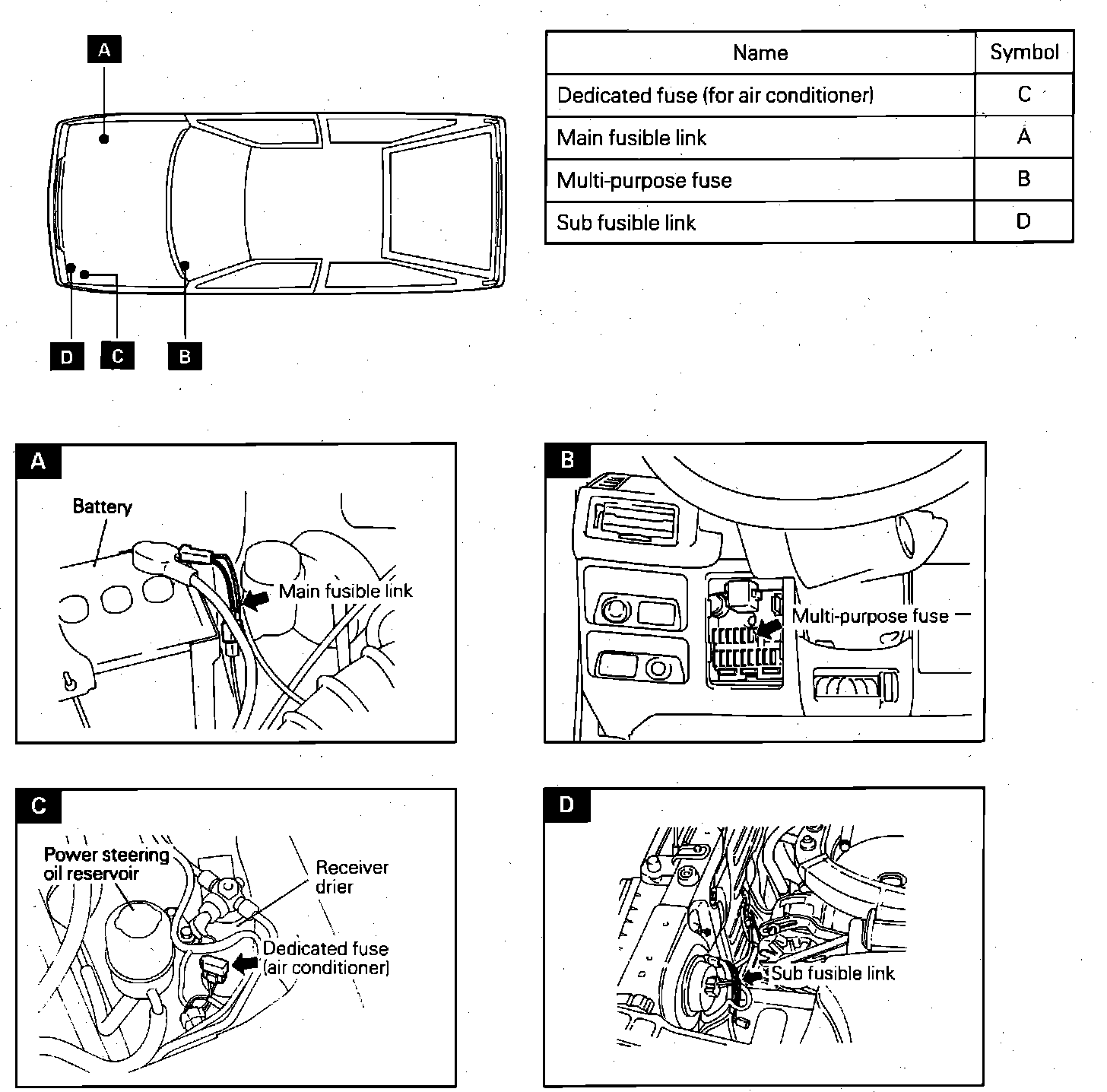

Fusible Link Locations.:




Engine Compartment

Applicable to: 1985-86 Mirage
