Throttle Full Close Switch: Locations

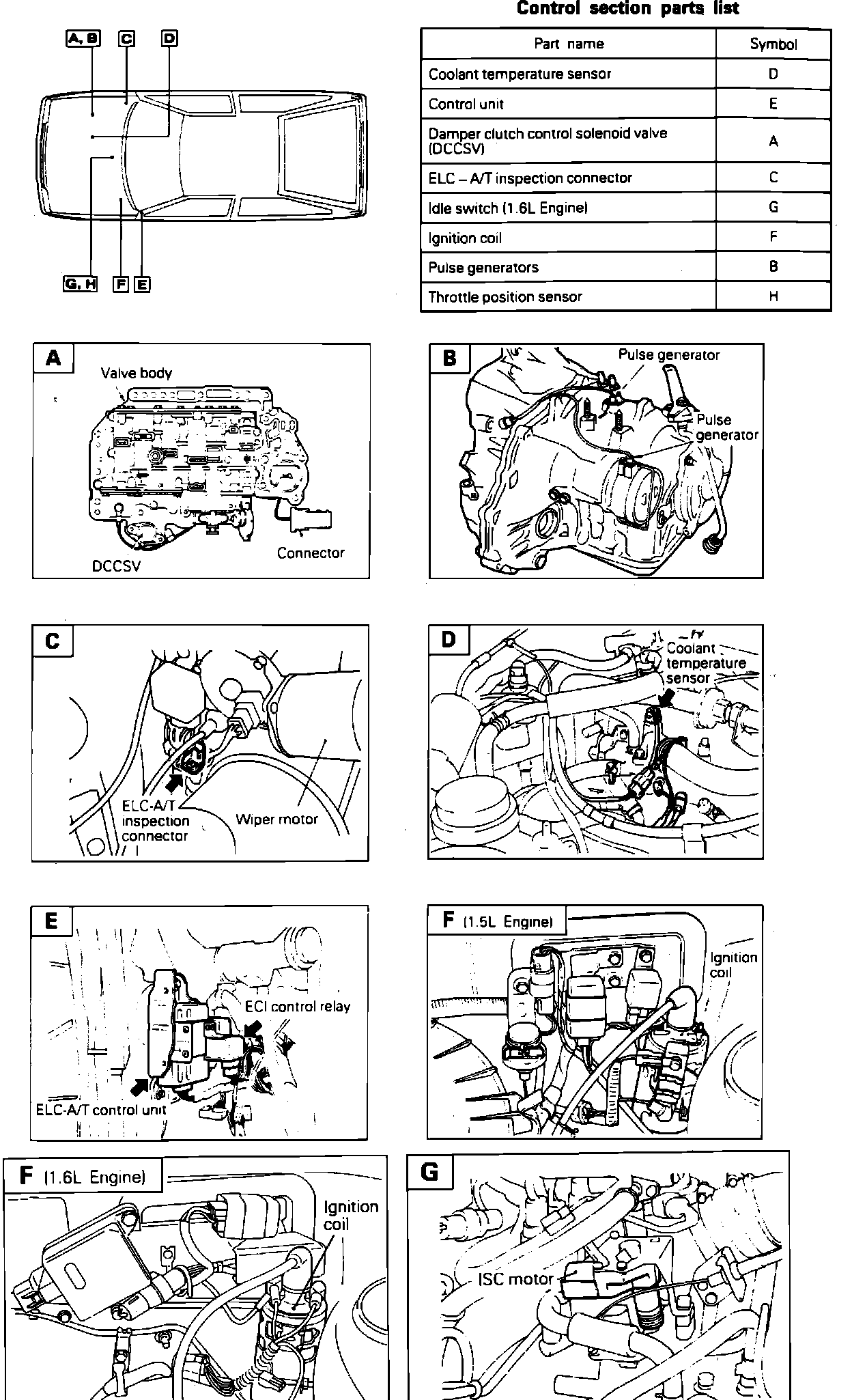

��#ELC System Components.:




RH Side Of Engine Compartment

Applicable to: 1985-86 Mirage
