EVAP - System Update
85mitsubishi04SUBJECT:
MIRAGE EMISSION CONTROL SYSTEM UP
NO. STB-85-25-002
DATE February, 1985
MODEL 1985 Mirage
STB Revision STB-85-25-002
PURPOSE This bulletin is issued to update the location of the overfill limiter valve and the fuel check valve on 1985 Mirages. For future reference, please write the number of this bulletin in the revision box on Page 25-5 of the 1985 Mirage Service Manual.

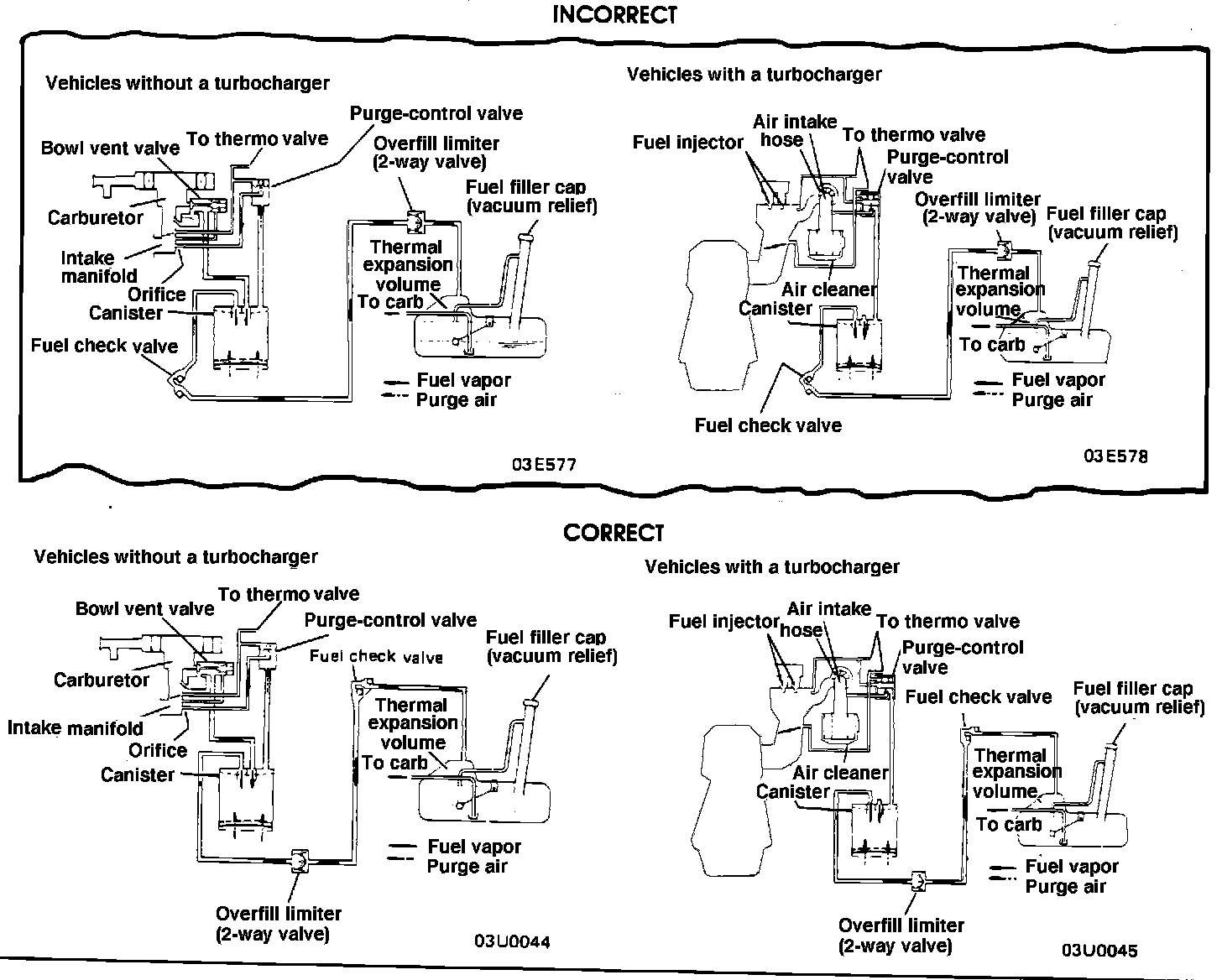

PAGE 25-5 EVAPORATIVE EMISSION CONTROL SYSTEM The fuel check valve is located downstream from the overfill limiter valve, rather than upstream as shown on Page 25-5 of the Service Manual. Revised illustrations are shown below.
