Feedback Control System - Service Manual Update
85mitsubishi03SUBJECT:
1985 FBC SYSTEM SERVICE MANUAL UPDATE
NO. STB-85-14-009
DATE November 1985
MODEL 1985 Models with FBC
PURPOSE This bulletin is issued to update FBC System Check Procedure Charts in 1985 Service Manuals. The charts in the Service Manuals are not incorrect. The reason for updating them is to standardize on certain voltage values. When the meter reads system voltage, we have substituted the term "System Voltage" for the actual expected voltage range. Because system voltage can be affected by external influences, the general term is less likely to be misunderstood than actual voltage.
SERVICE MANUALS AFFECTED The following service manuals are affected by this bulletin. 1985 Mirage Service Manual, Pages 14-31 to 14-34. 1985 Cordia/Tredia Service Manual, Pages 14-30 to 14-33. 1985 Truck Service Manual, Pages 14-22 and 14-23. 1985 Montero Service Manual, Pages 14-19 to 14-20.
As reference to this bulletin, please write the STB number in the boxes on the affected pages.
REVISIONS Revise the affected pages as illustrated.

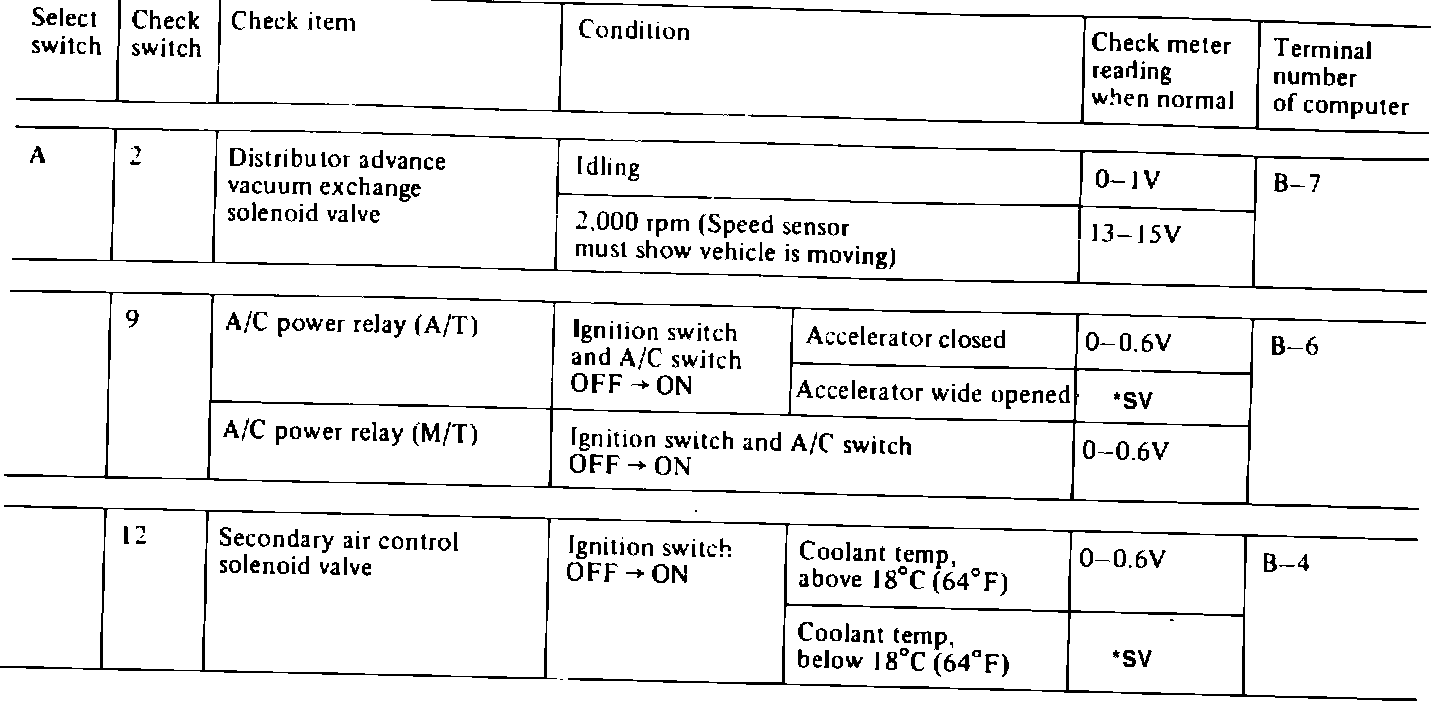

1985 MIRAGE SERVICE MANUAL, PAGE 14-31

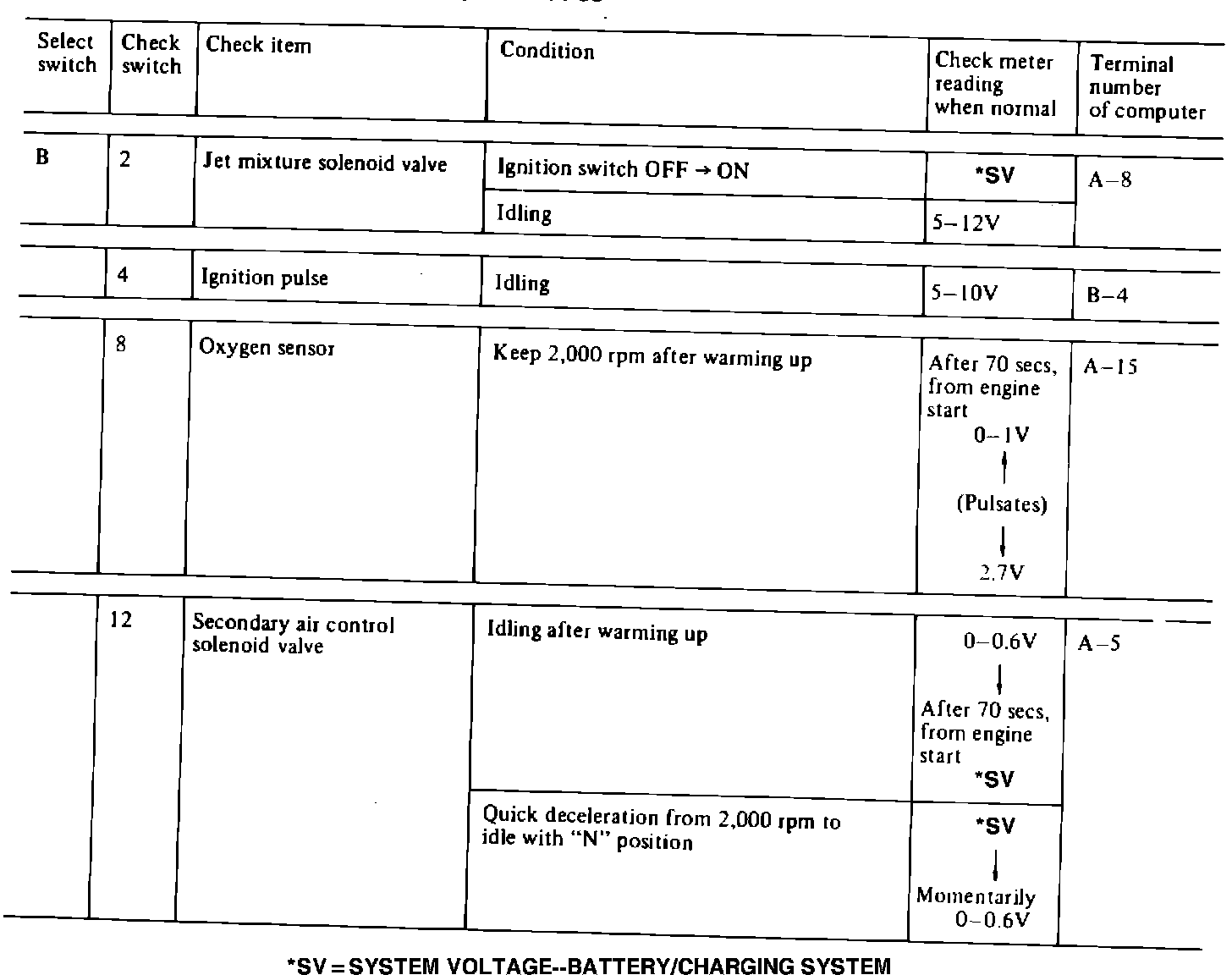

FBC System Check Procedure Chart for Engine with 5-speed M/T and A/T

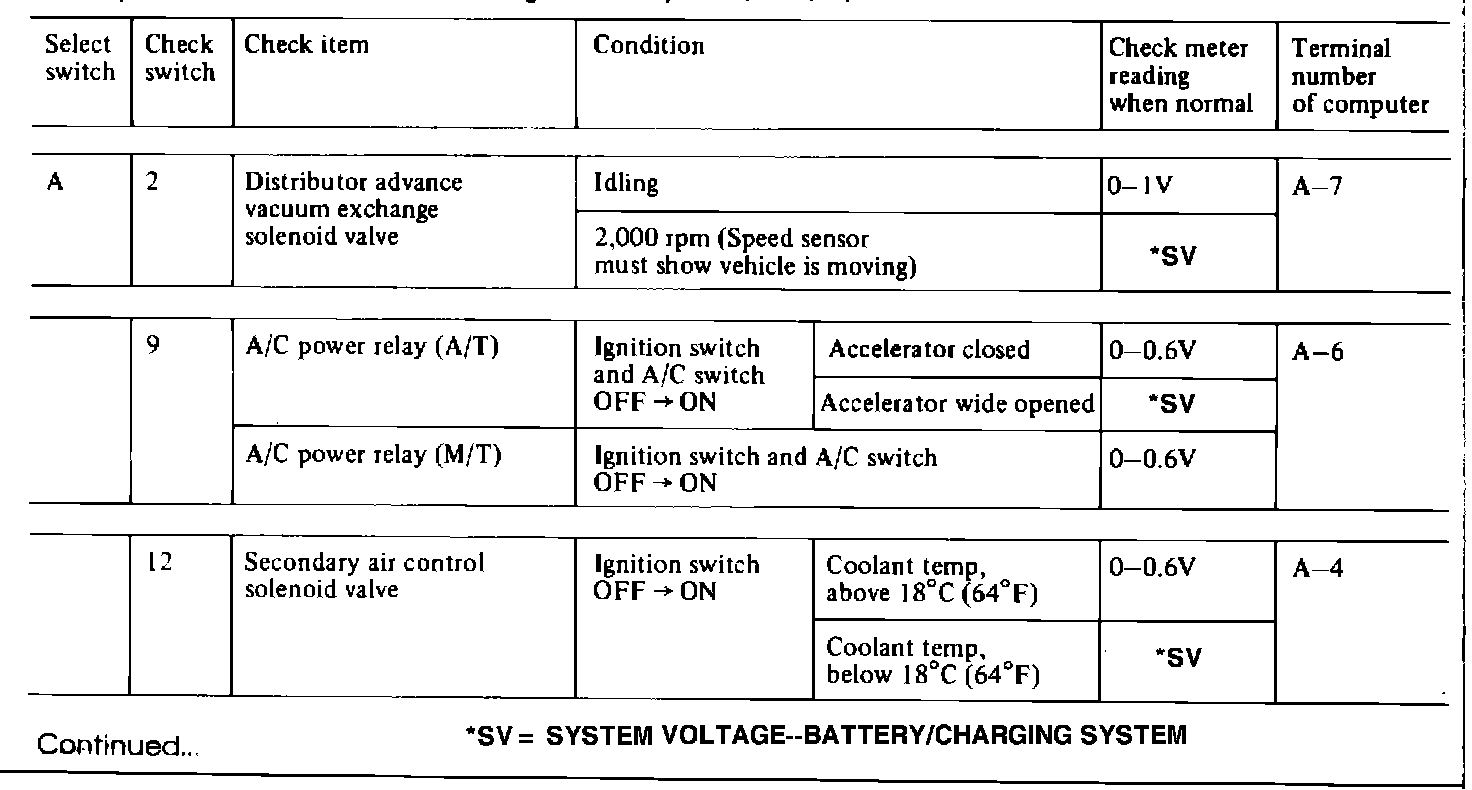

1985 MIRAGE SERVICE MANUAL, PAGE 14-32

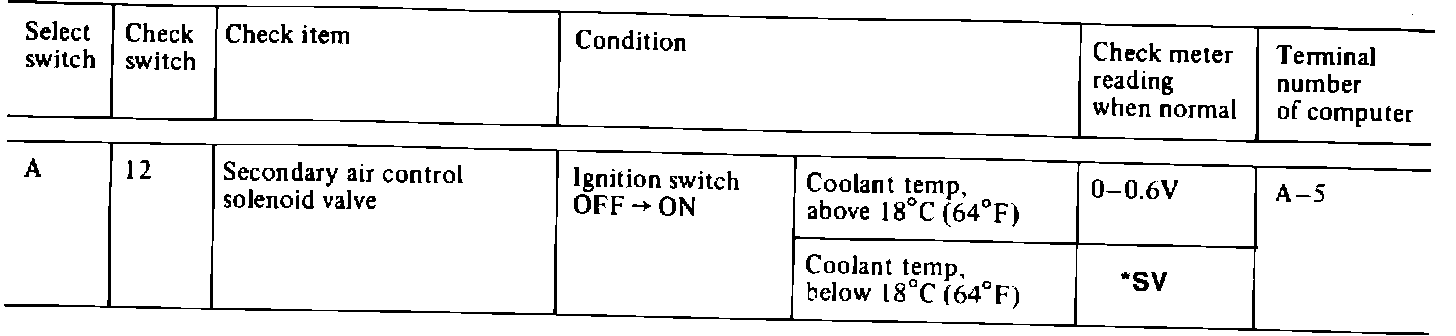

1985 MIRAGE SERVICE MANUAL, PAGE 14-33

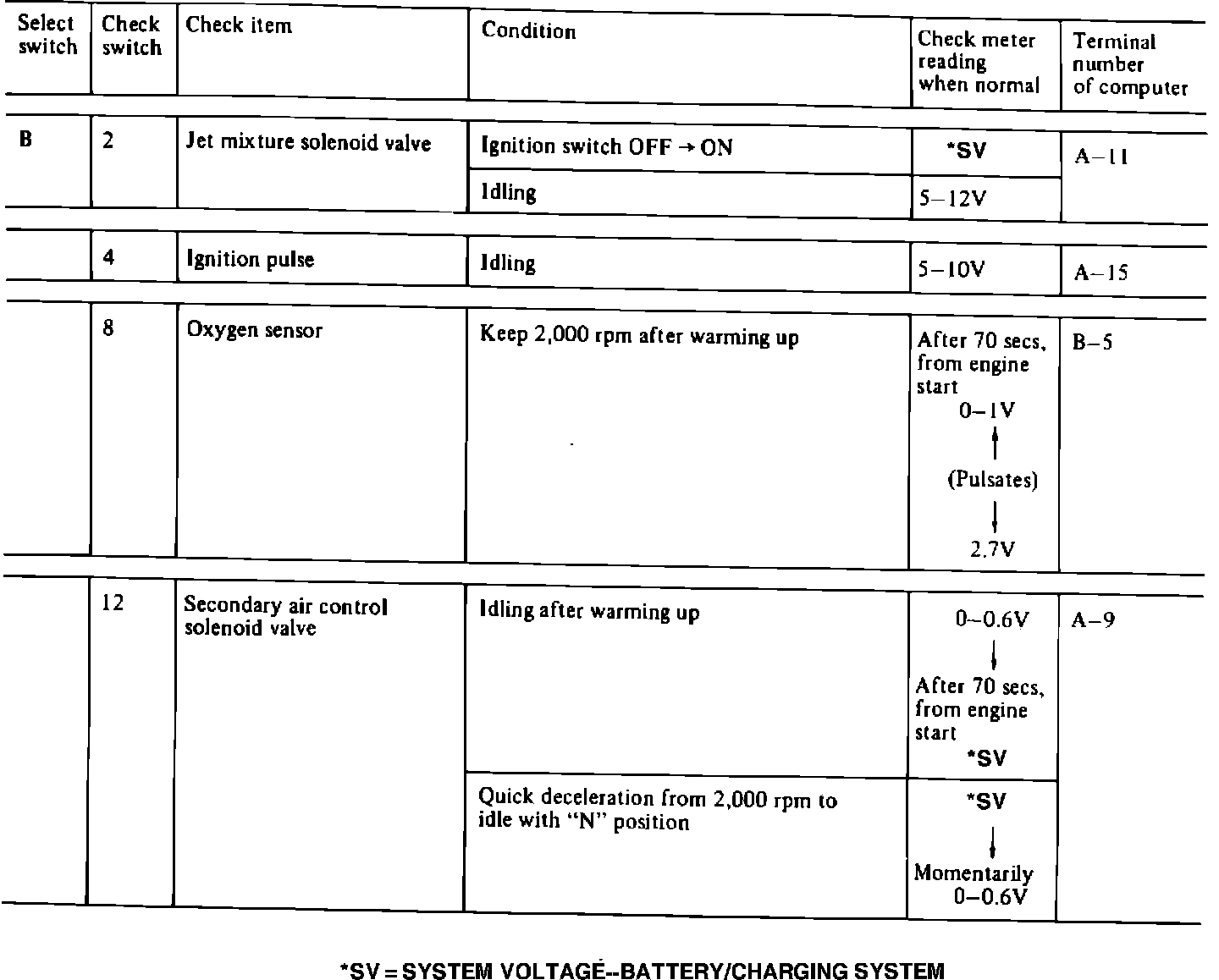

Output Signals From Tester for Engine with 4-speed M/T
1985 MIRAGE SERVICE MANUAL, PAGE 14-34

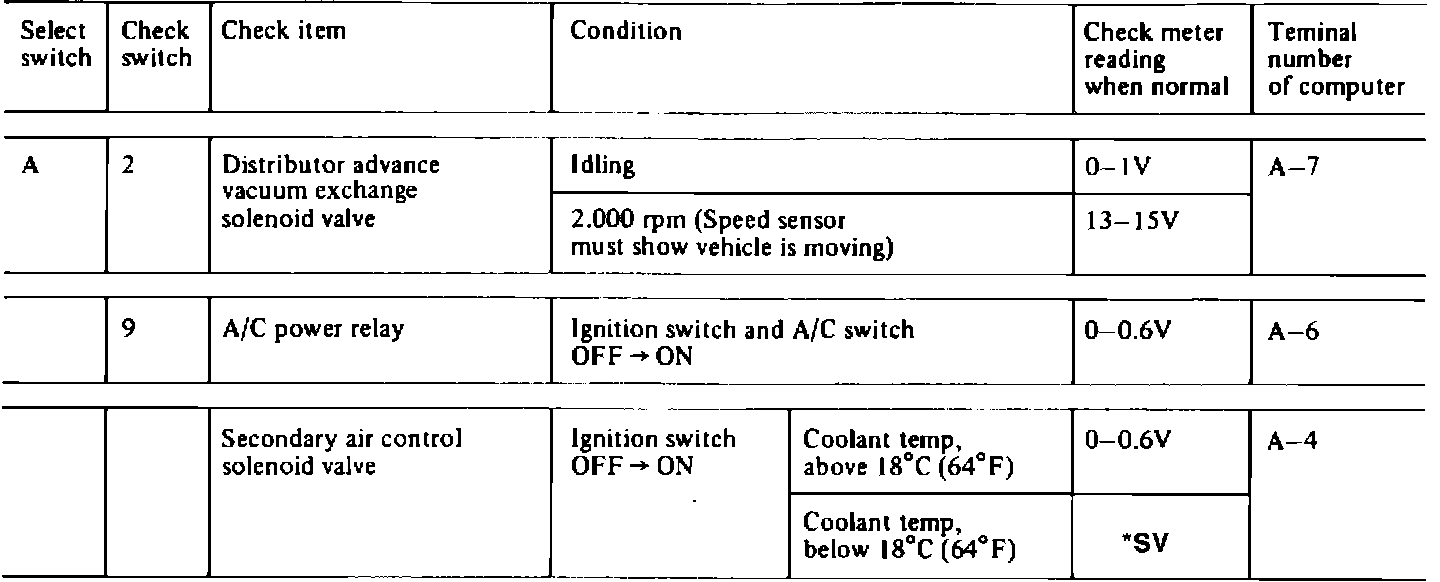

1985 CORDIA/TREDIA SERVICE MANUAL, PAGE 14-30 Revise as illustrated below.

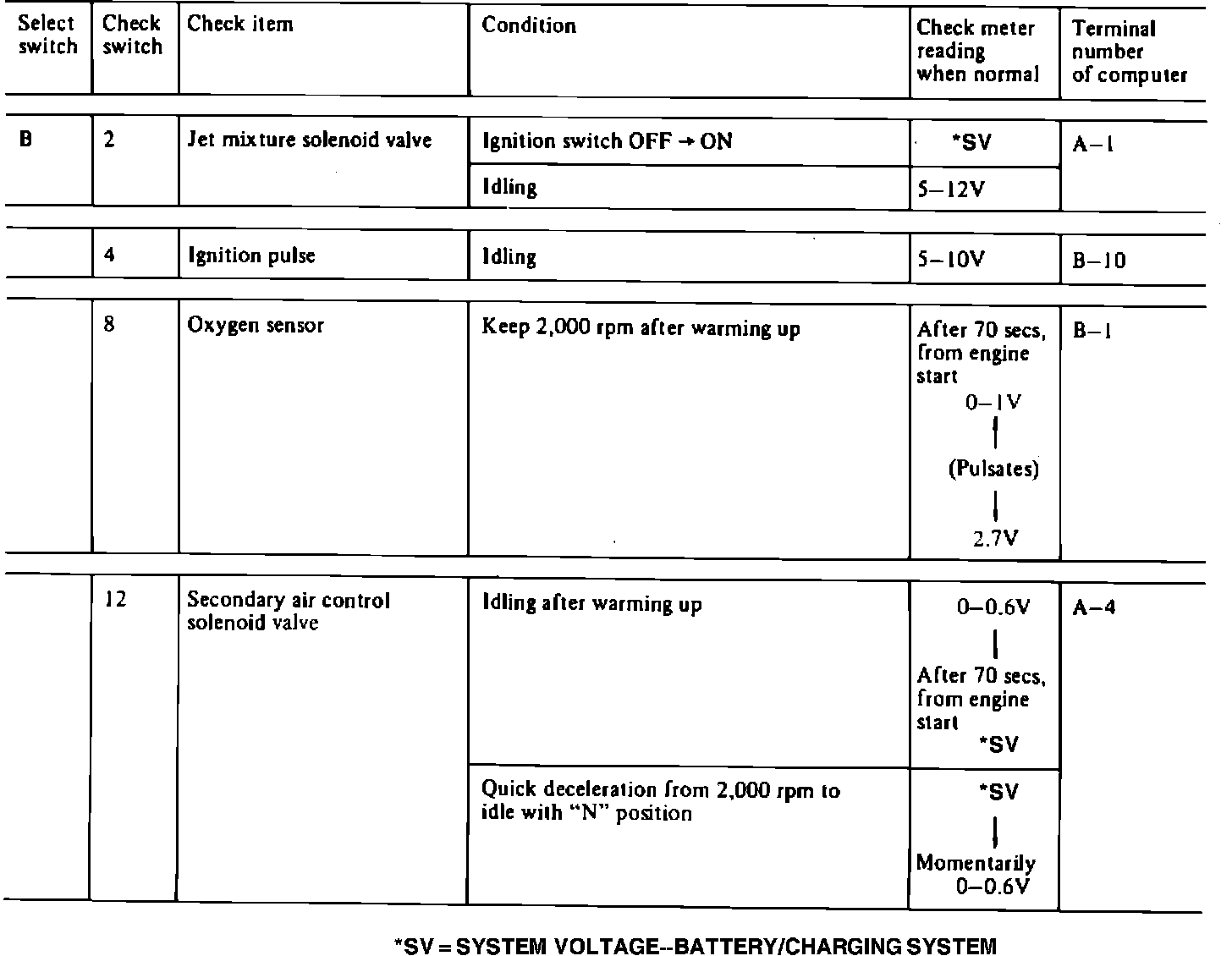

FBC System Check Procedure Chart for Engine with M/T
1985 CORDIA/TREDIA SERVICE MANUAL, PAGE 14-31
1985 CORDIA/TREDIA SERVICE MANUAL, PAGE 14-32

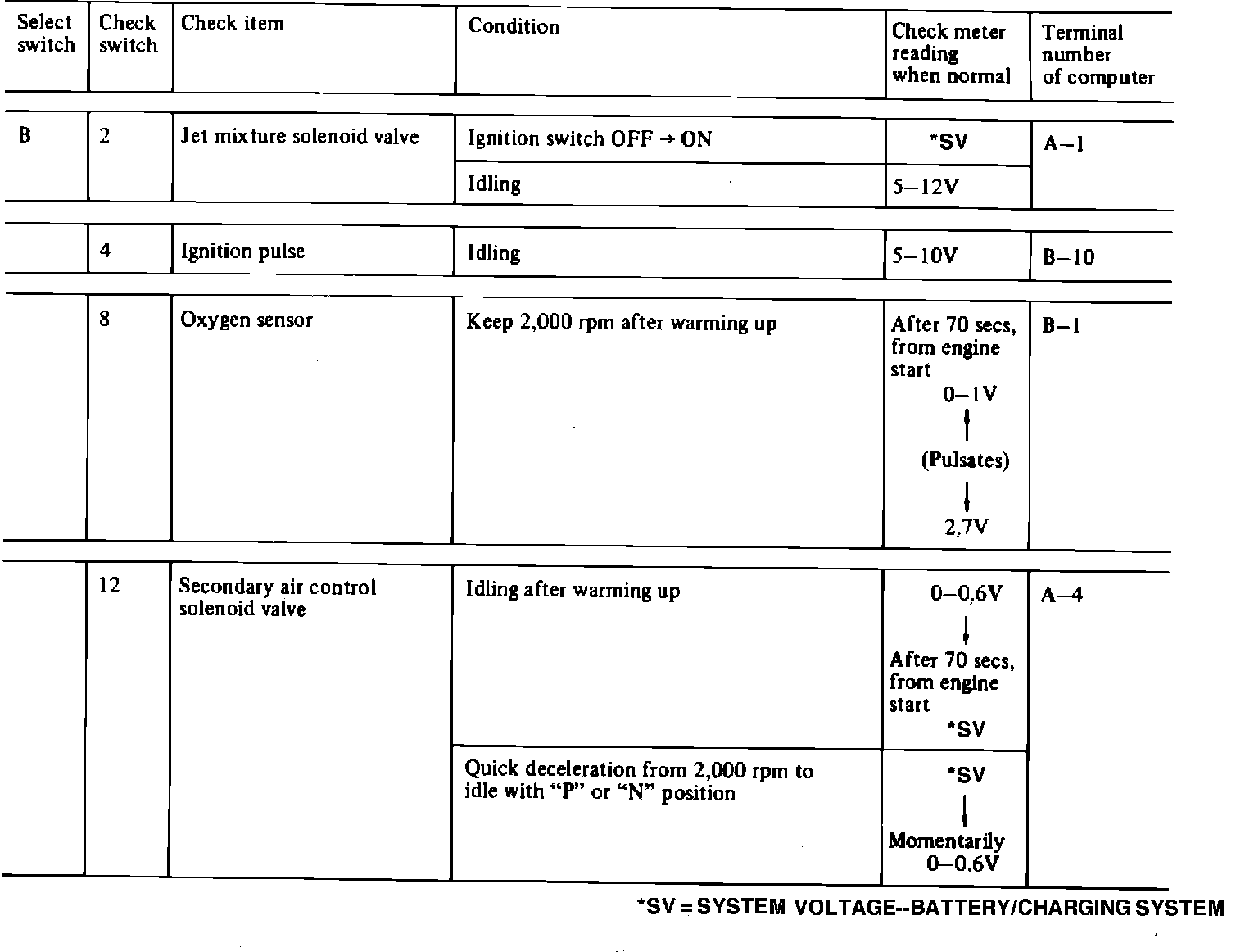

FBC System Check Procedure Chart for Engine with A/T
1985 CORDIA/TREDIA SERVICE MANUAL, PAGE 14-33
1985 TRUCK SERVICE MANUAL
1985 TRUCK SERVICE MANUAL, PAGE 14-22

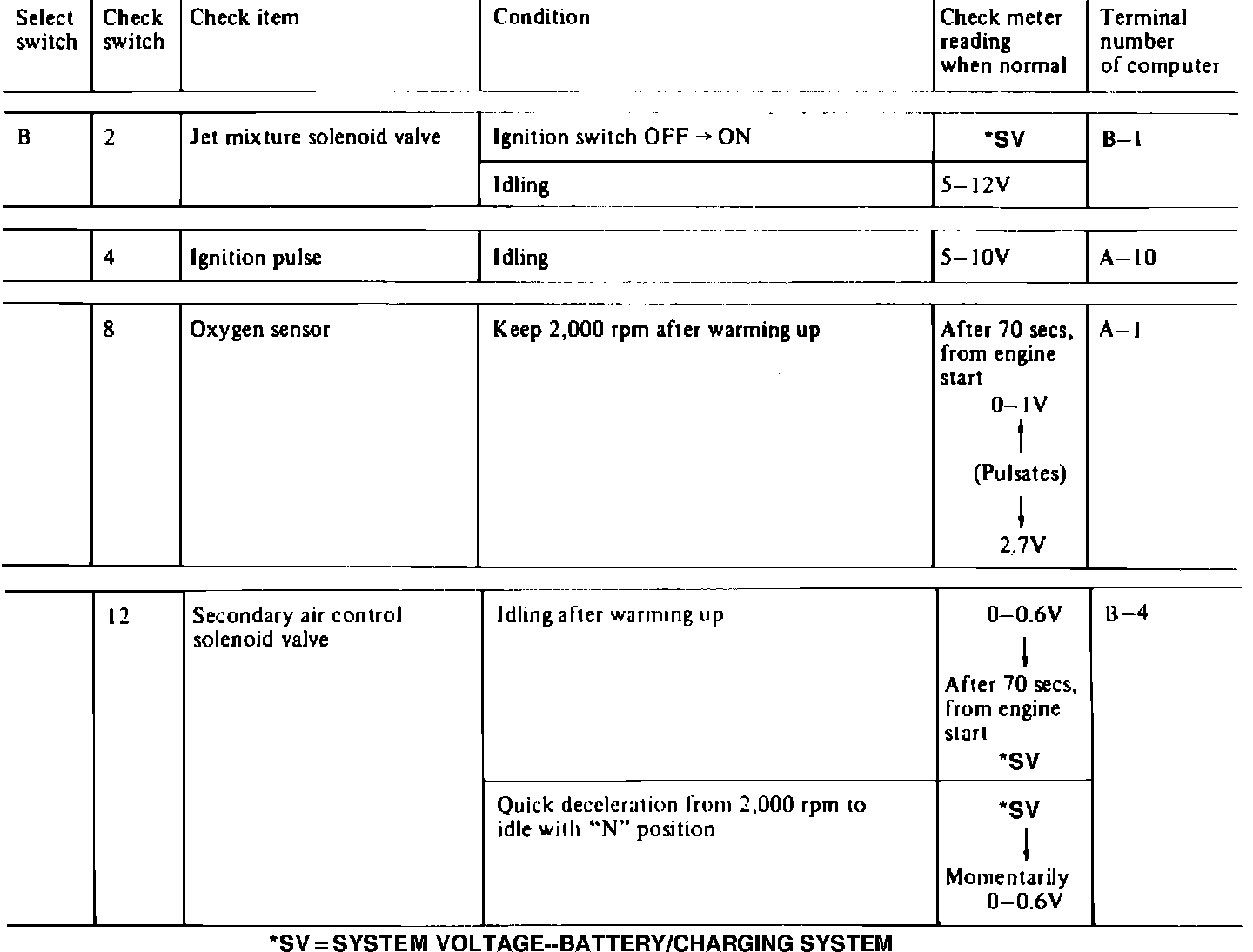

FBC System Check Procedure Chart

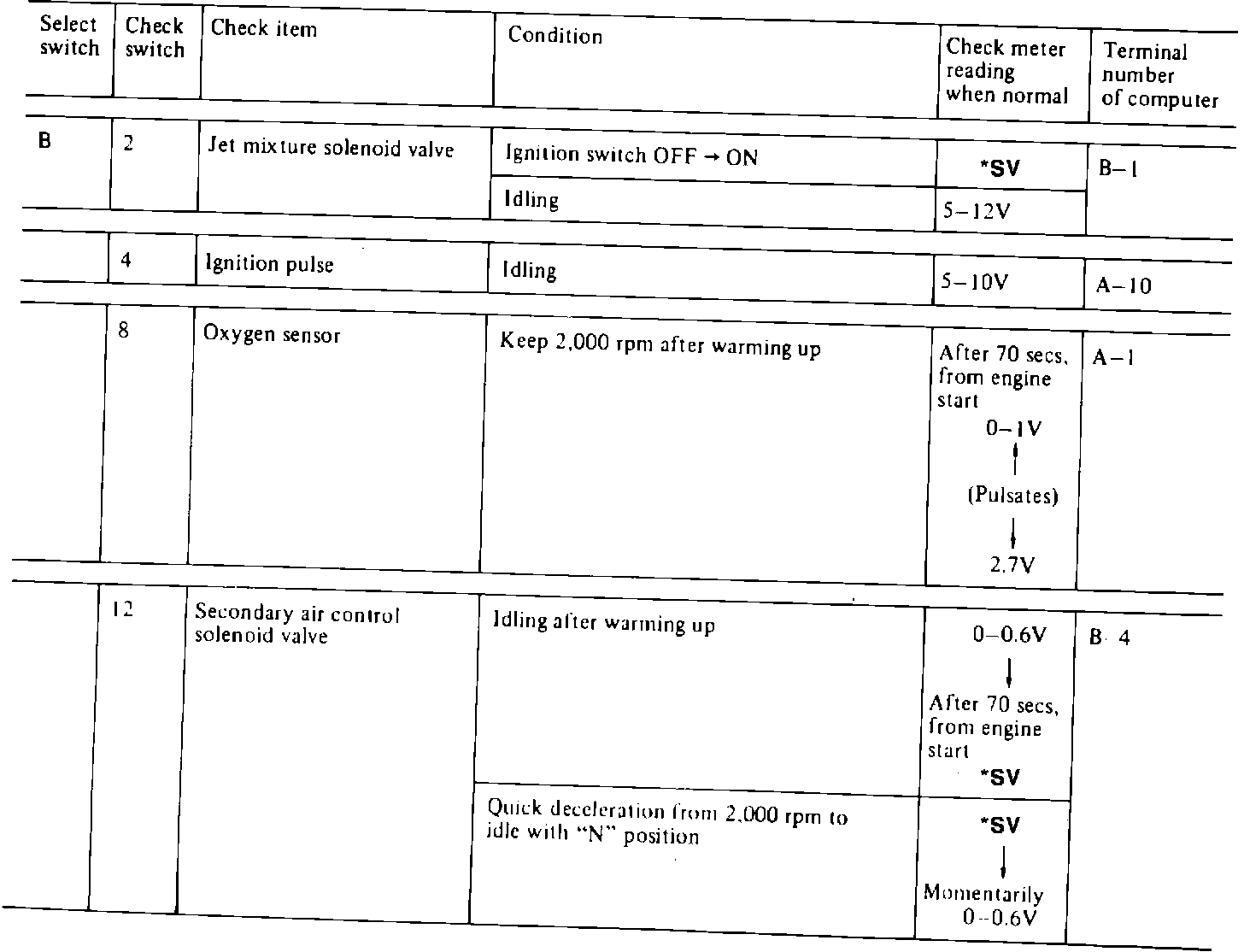

1985 TRUCK SERVICE MANUAL, PAGE 14-23

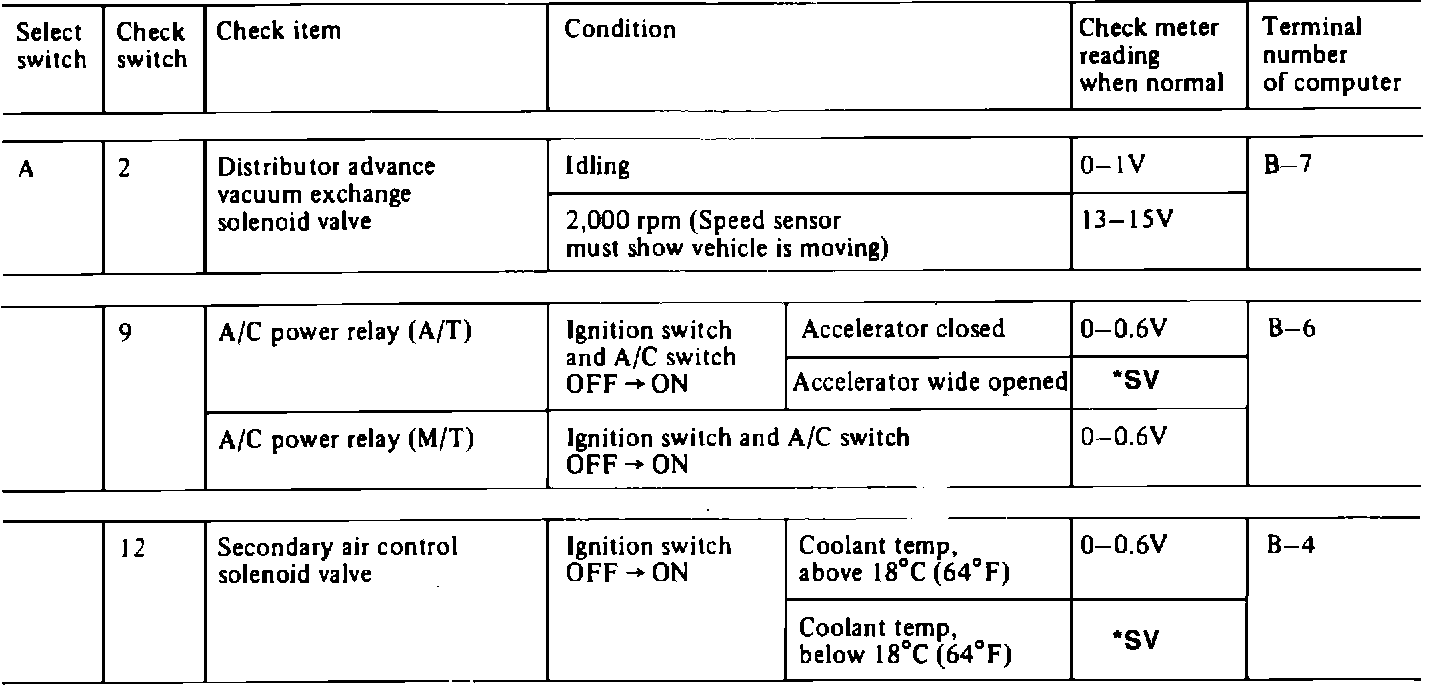

1985 MONTERO Service Manual

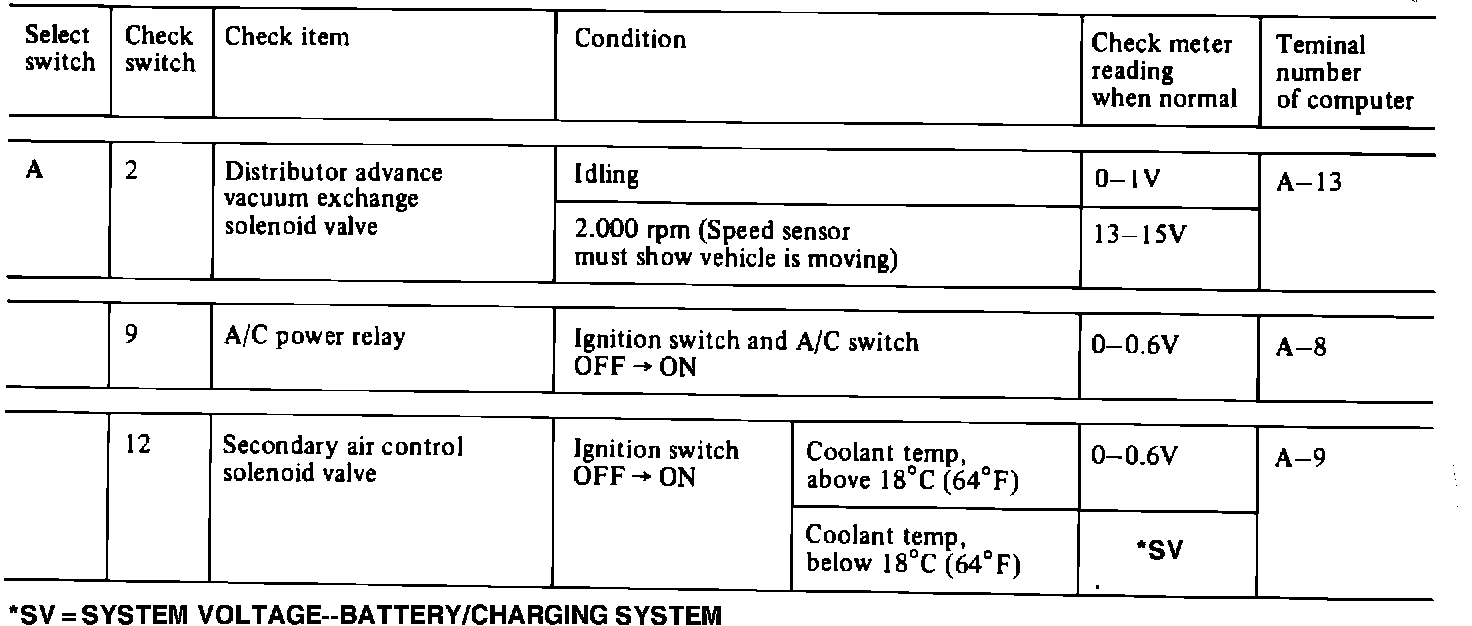

1985 MONTERO SERVICE MANUAL, PAGE 14-19 FBC System Check Procedure Chart
1985 MONTERO SERVICE MANUAL, PAGE 14-20
