Component Tests and General Diagnostics

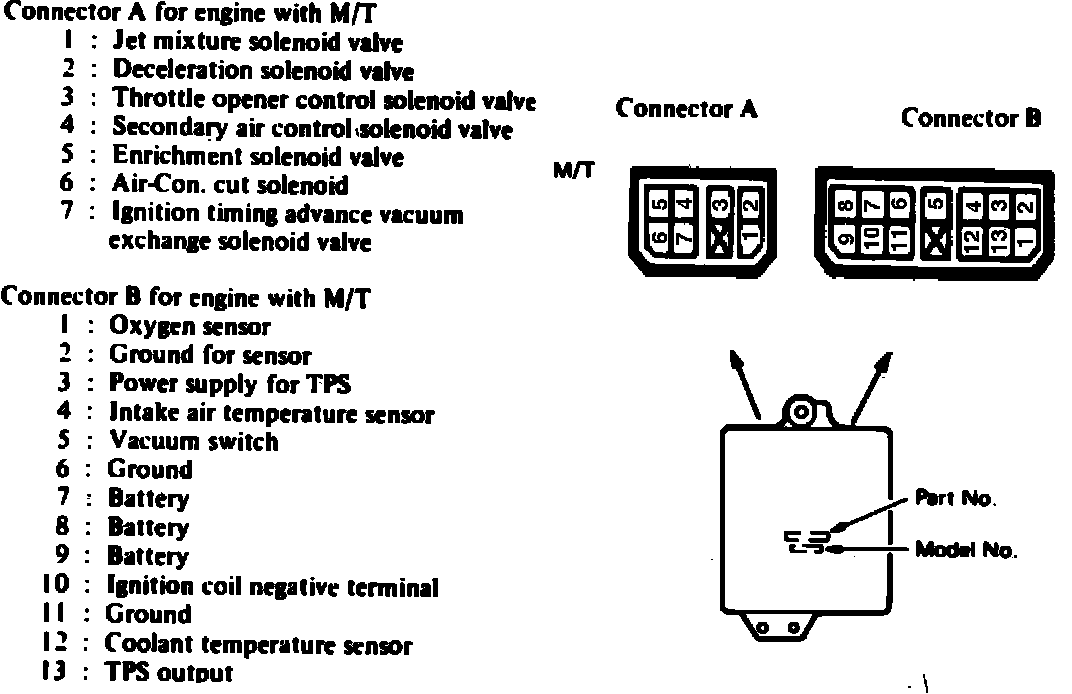

Fig. 21 Carburetor control unit terminal location.:

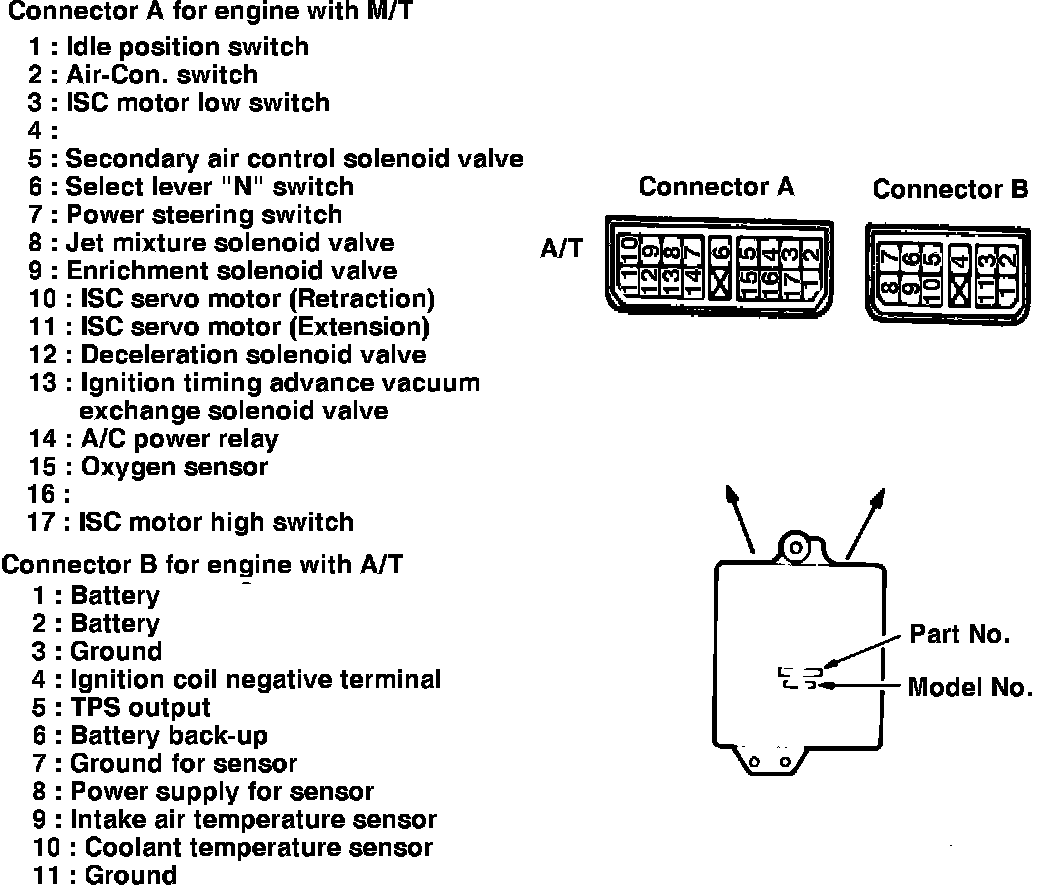

Fig. 22 Carburetor control unit terminal location.:

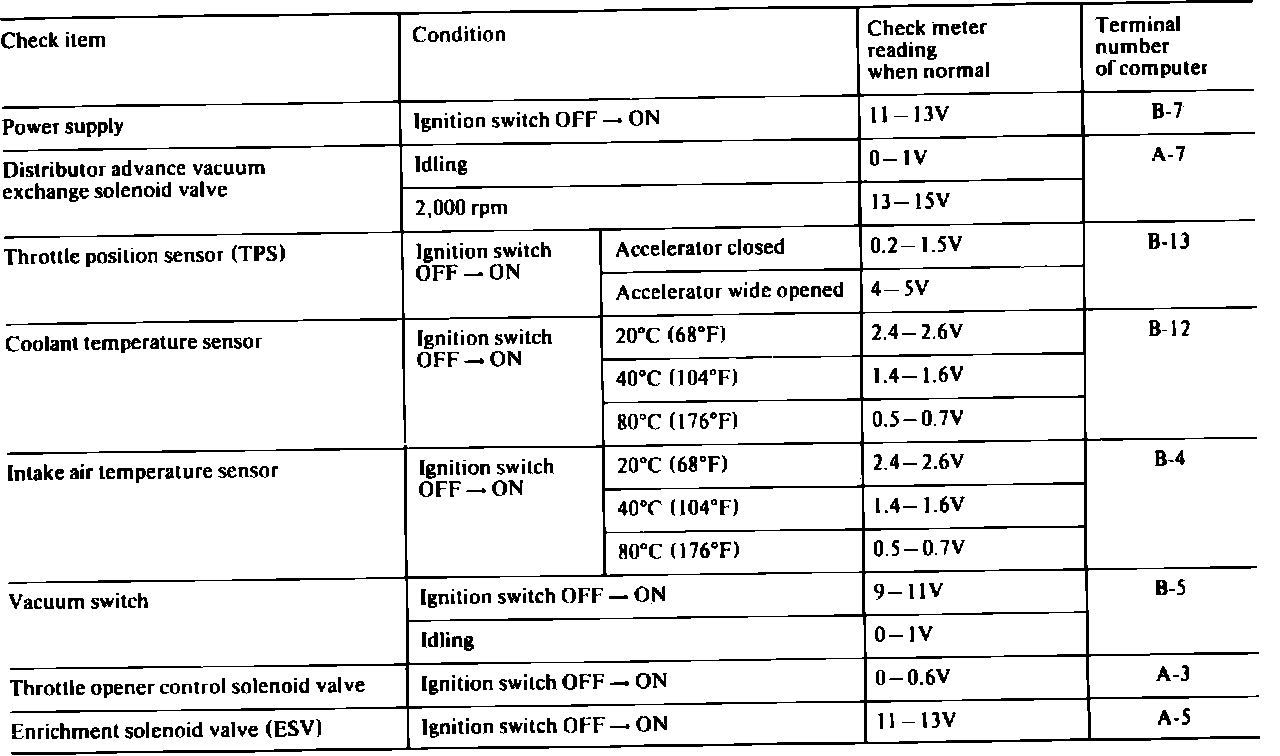

Fig. 29a Electronic feedback carburetor system diagnosis chart .:

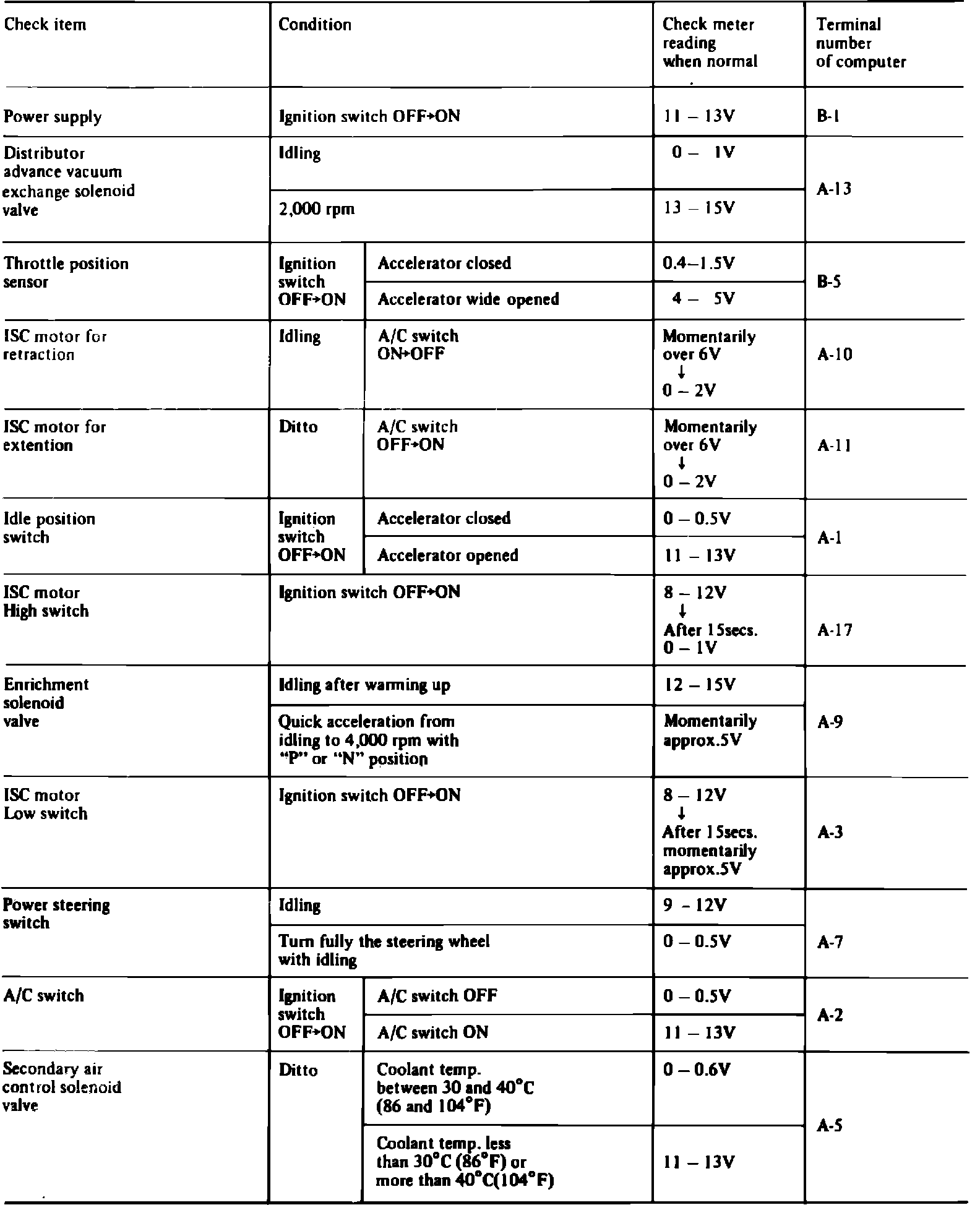

Fig. 29b Electronic feedback carburetor system diagnosis chart .:

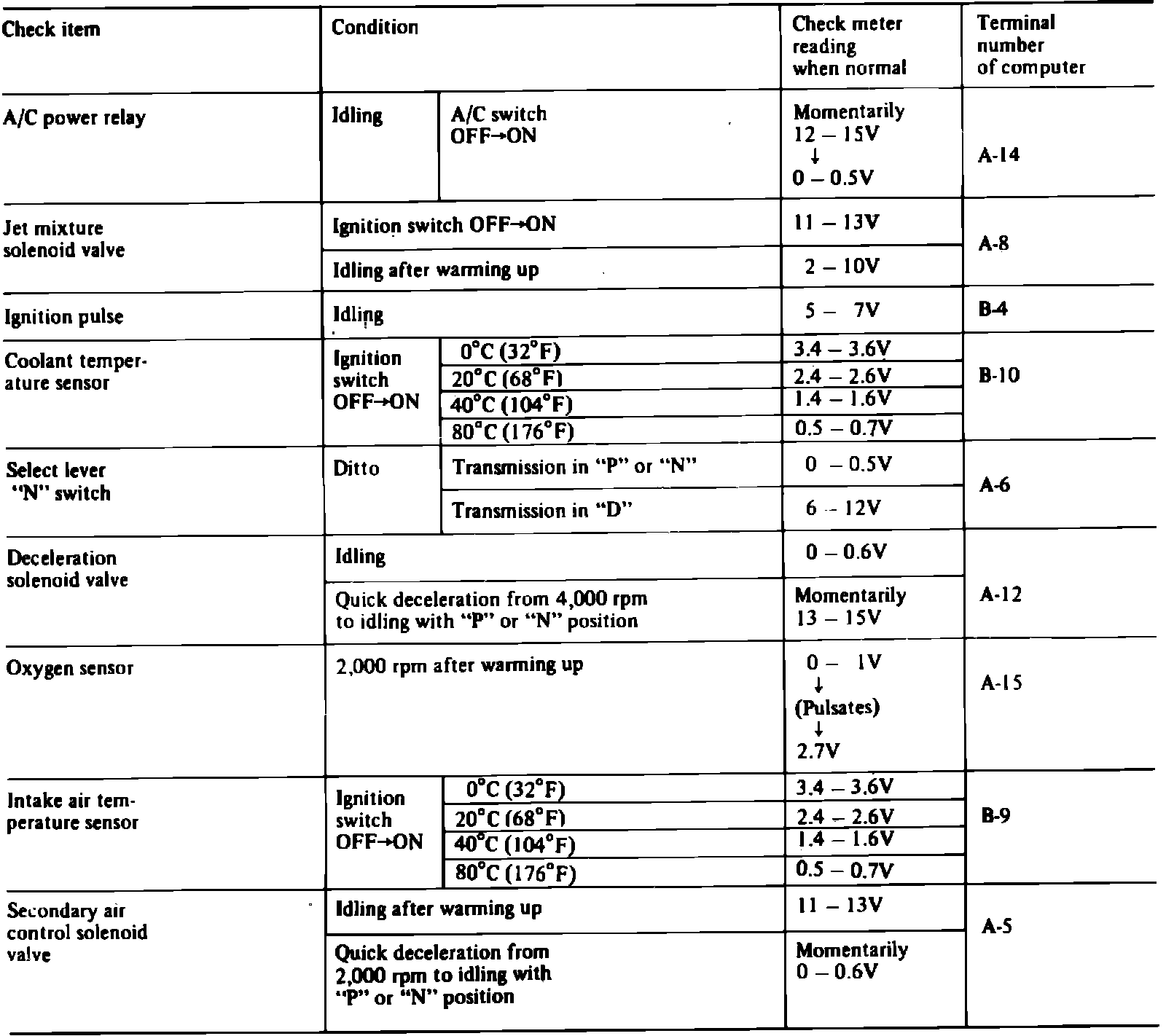

Fig. 31a Electronic feedback carburetor system diagnosis chart .:

Fig. 31b Electronic feedback carburetor system diagnosis chart .:
