86mitsubishi01SUBJECT:
GALANT ISC ADJUSTMENT - SERVICE MANUAL UPDATE
NO. STB-86-14-005
DATE June, 1986
MODEL 1986 Galant
STB Revision STB-86-14-005
PURPOSE
This bulletin is issued to correct the illustratlon of the ISC Motor Position Sensor and the ISC Servo Connector table on Page 14-26 of the 1986 Galant Service Manual. It is important that the technician identify these two connectors correctly, since they look alike, and if one is confused with the other, an incorrect electrical diagnosis can result.
In addition, there are changes to the table on the same page. As reference to this bulletin, please write the STB number in the revision box on Page 14-26.
REVISION PAGE 14-26 SERVICE ADJUSTMENT PROCEDURES

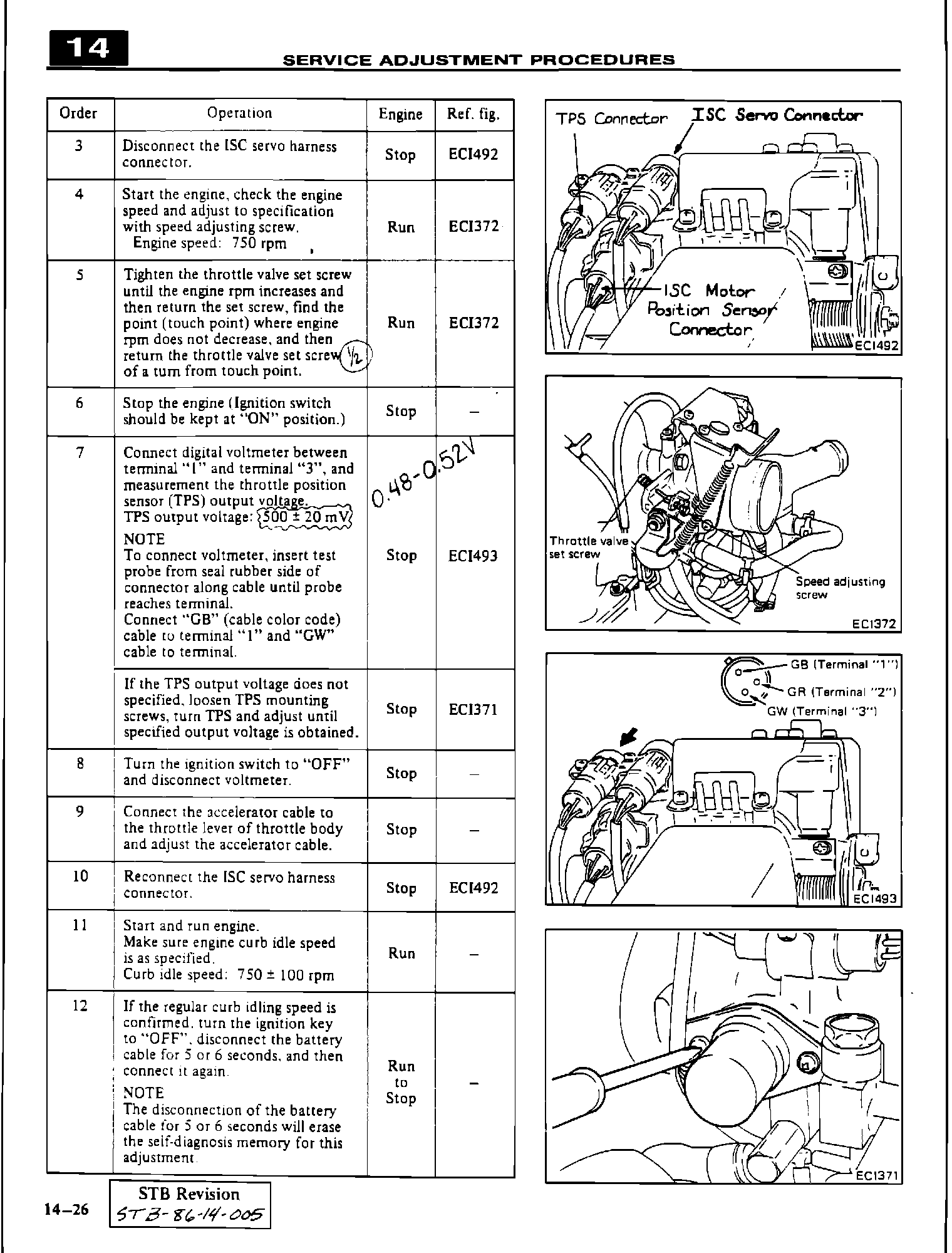

As shown in the illustration on Page 2 of this bulletin, change the ISC Servo Connector and ISC Motor Position Sensor callouts in the top illustration, and revise the table as indicated by handwritten changes on the illustration.
