General System Description

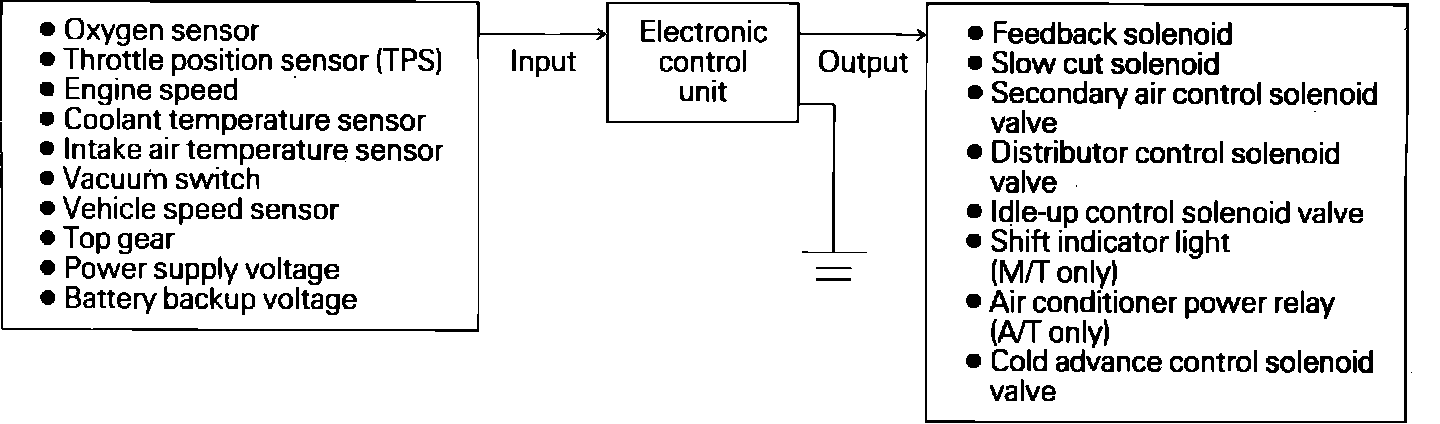

Fig. 4 Electronic feedback carburetor system.:

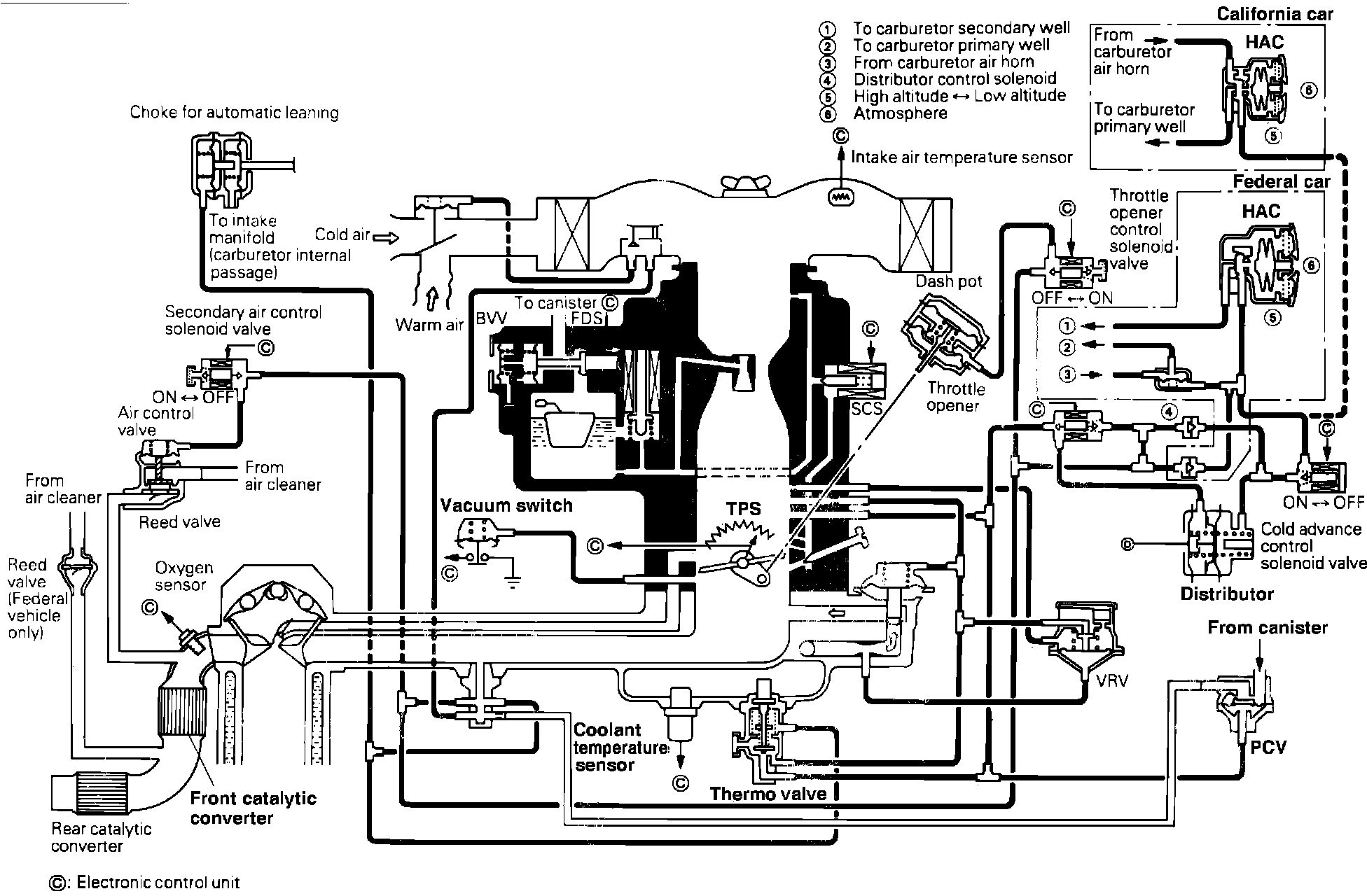

FBC System Diagram:

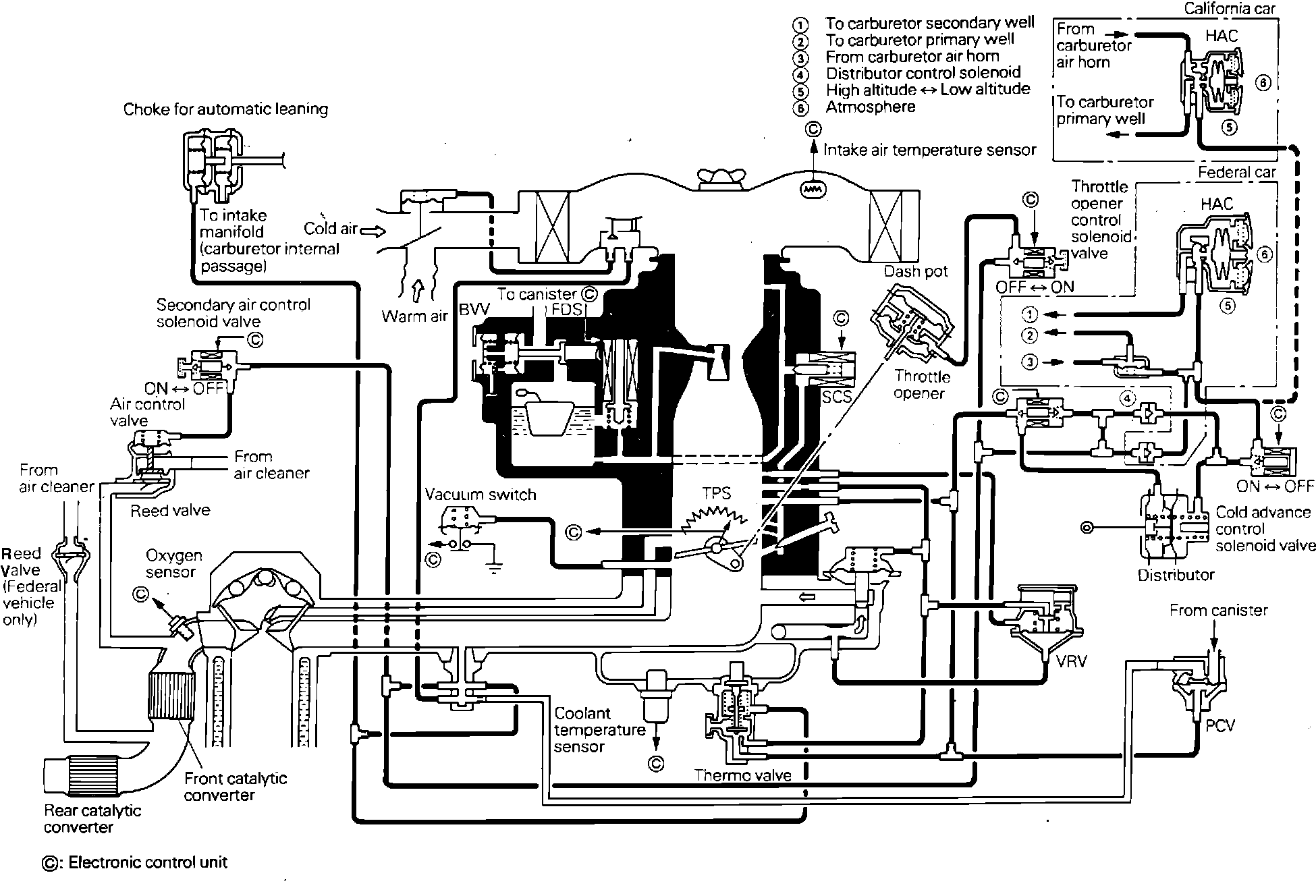

Fig. 17 Electronic feedback carburetor operation.:
