General System Description

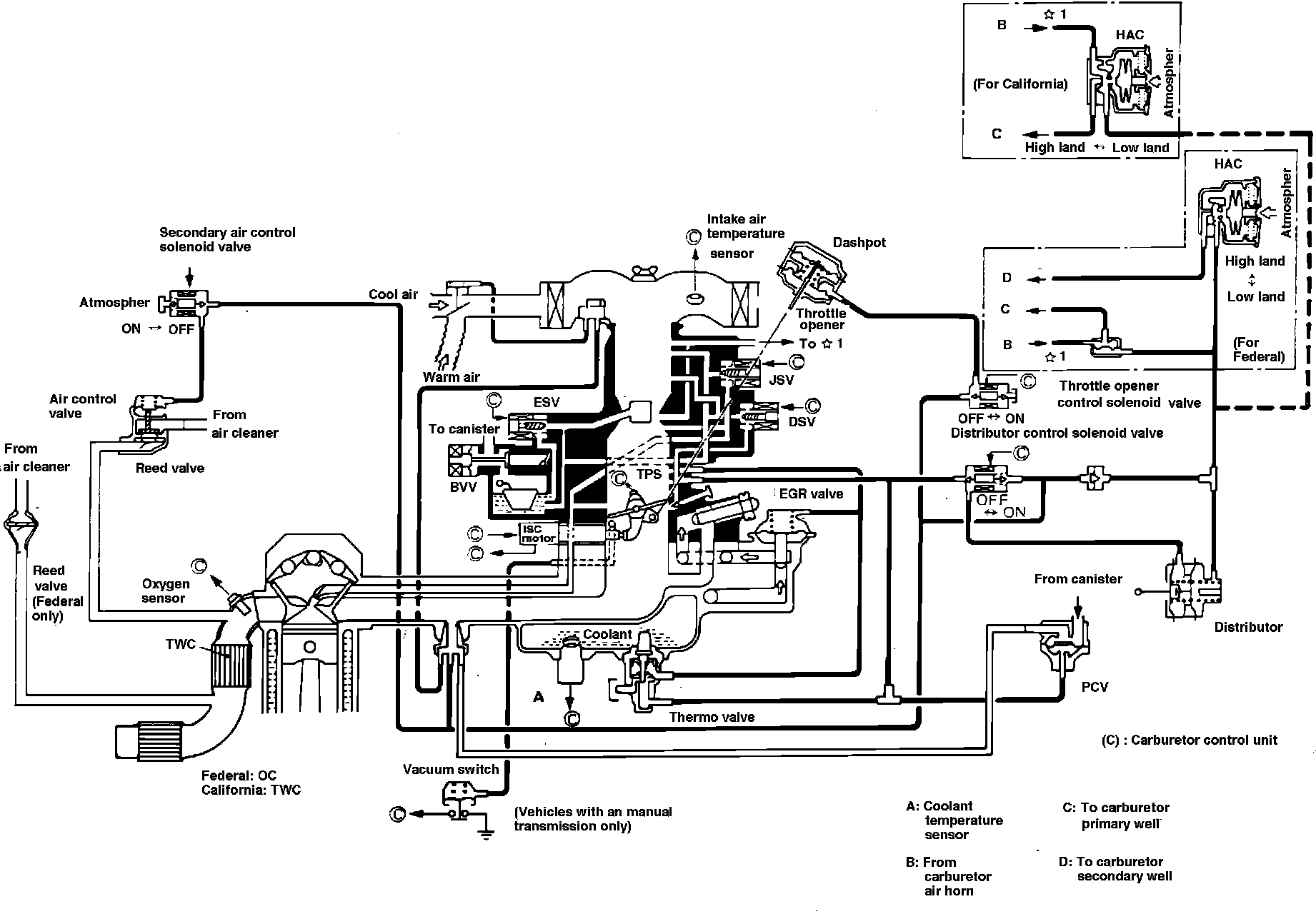

FBC System Diagram:



Fig. 3 Electronic feedback carburetor system.:

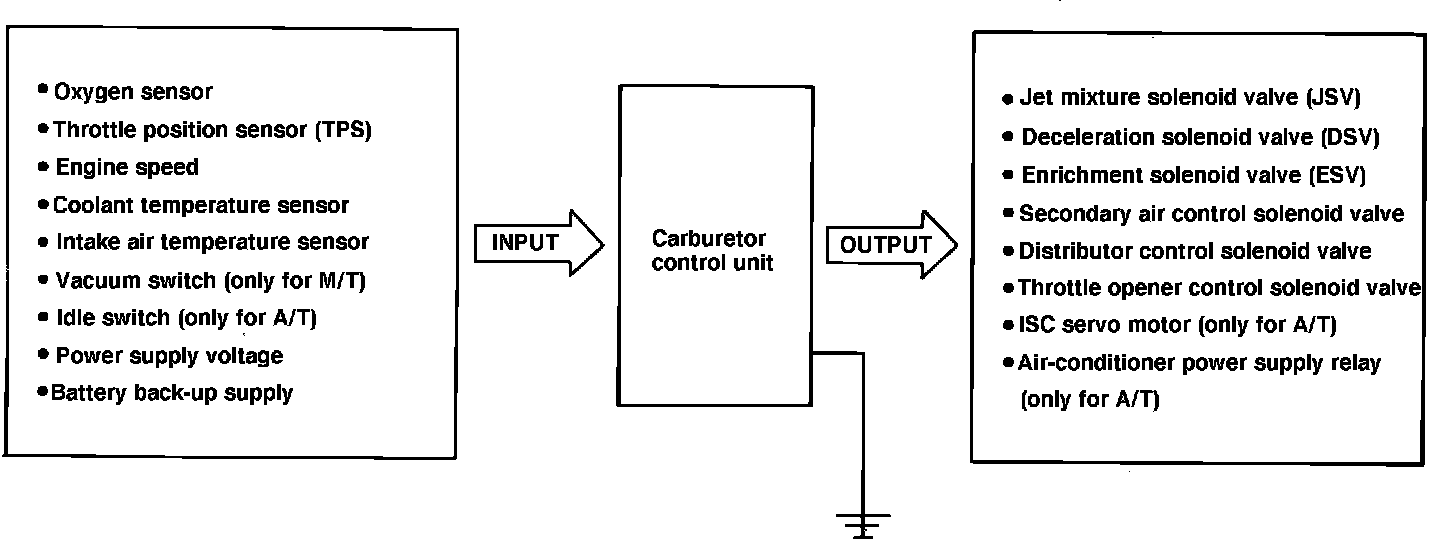

Fig. 16 Electronic feedback carburetor operation.:
