Choke Shim Installation

Figure 8:

BEFORE INSTALLING THE CHOKE SHIM READ THROUGH THE FOLLOWING 3 PAGES.

CAUTION: These choke shim installation procedures must be performed on a cool carburetor/thermo wax element.

1. Install the choke shim that is included in the emission kit as described in Figures 8, 9, 10, 11, and 12.

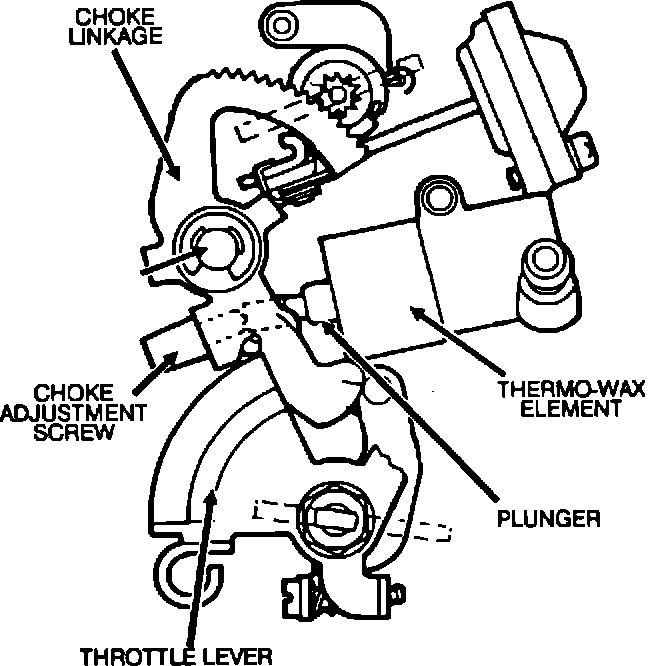

Shown in Figure 8 is a basic outline view of the choke mechanism.

NOTE: The area between the choke adjustment screw and the plunger is behind the choke linkage and is hidden from view.

Figure 10:

Figure 9:

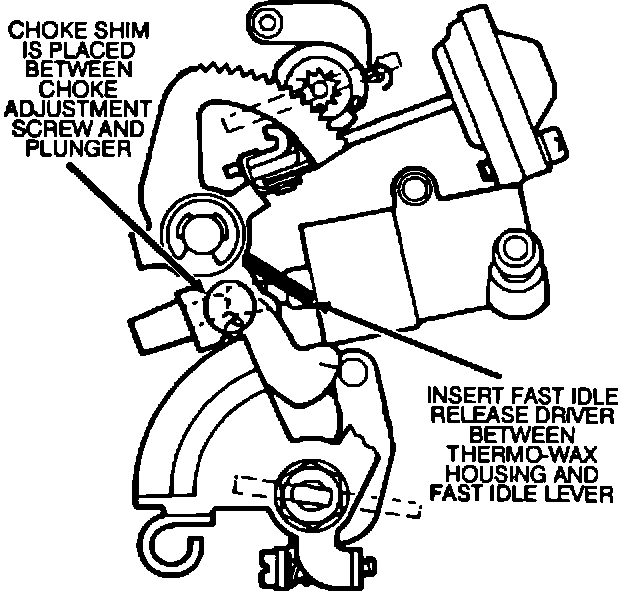

2. Using the Fast Idle Release Driver special tool, insert the tool between the thermo wax element housing and the choke linkage (Figure 10).

Figure 11:

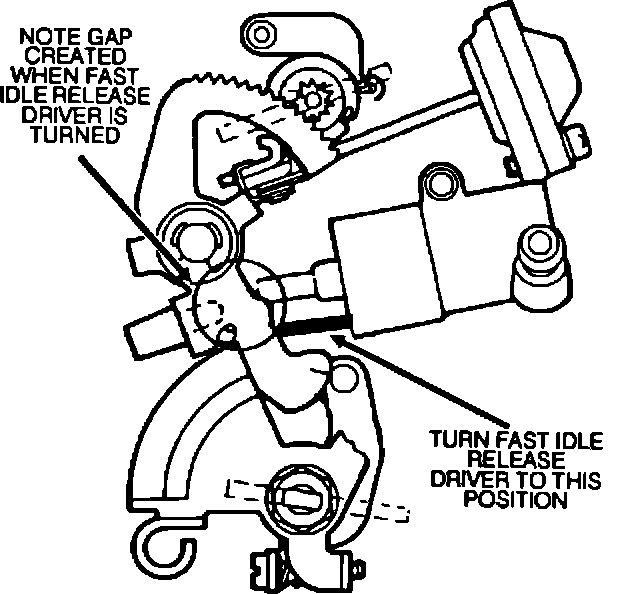

3. Spread the choke linkages to create a gap between the choke adjustment screw and the plunger of the thermo wax element (Figure 11). Make sure not to interfere with the throttle lever or other linkages.

Figure 12:

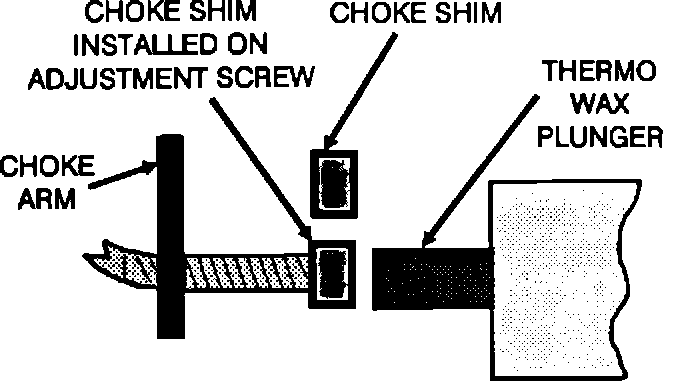

4. With the linkages spread, install the cap portion of the choke shim onto the threaded end of the choke adjustment screw. The cap portion of the shim should be inserted between the plunger and the choke adjustment screw (Figure 12).

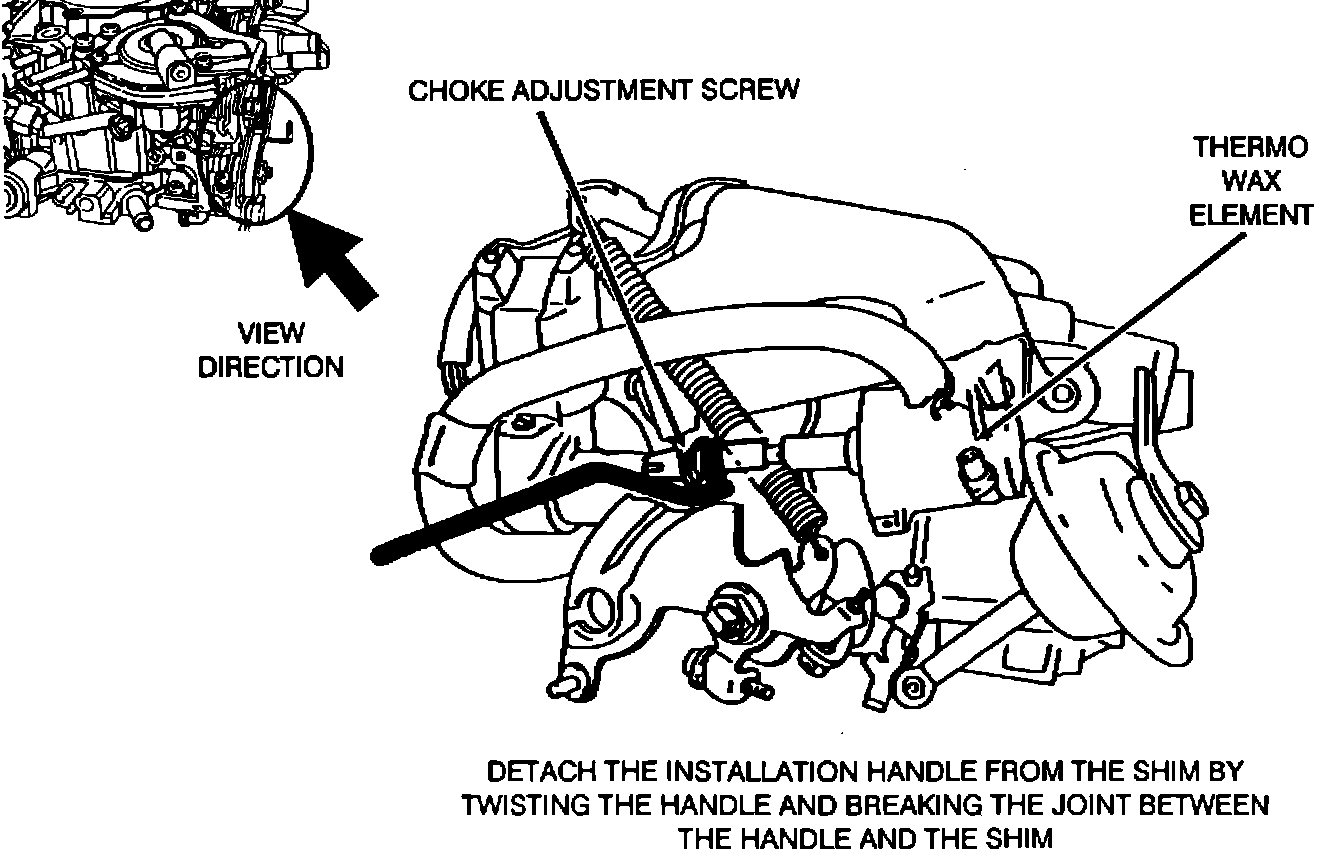

5. Remove the Fast Idle Release Driver. Carefully twist the handle of the choke shim and allow the handle to break off from the cap portion.
