Label Installation

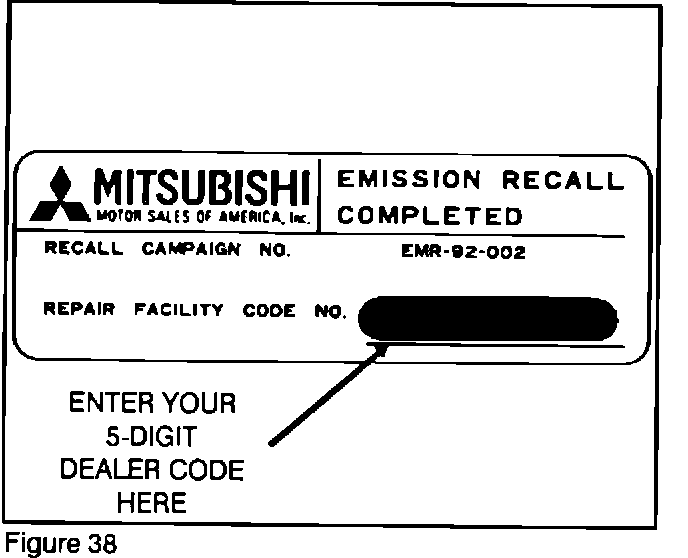

1. Write in your 5-digit dealer code under the white flap on the Emission Recall Completed Label (Figure 38).

2. Carefully remove the white paper from the backside of the flap. Press the now clear flap portion onto the label.

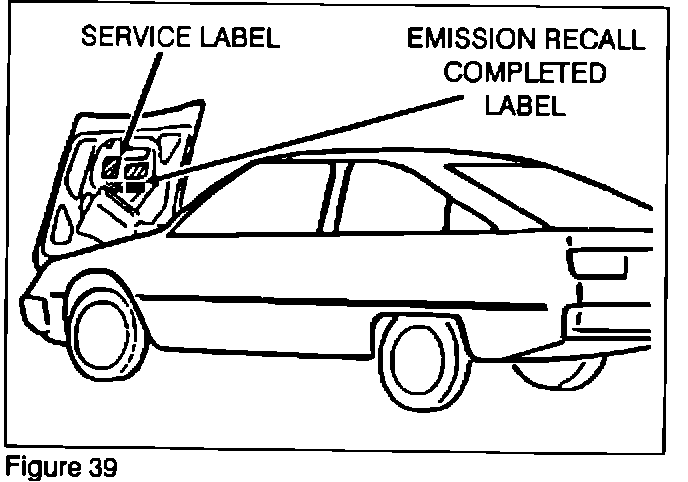

3. Carefully remove all dirt and oil from the area below the lower right side of the existing Service Label. Affix the Emission Recall Completed Label along the RIGHT side of the EMR-90-009 Emission Recall Completed Label (Figure 39).
